USB-A2HSB6 Equivalent & Substitute Parts

Part Overview

The USB-A2HSB6 is an active USB Type-A stacked receptacle connector manufactured by On Shore Technology Inc. This 8-position through-hole component features right-angle mounting with board lock functionality. The part is designed for applications requiring dual-port USB connectivity with horizontal PCB mounting. Substitute parts are identified when equivalent electrical and mechanical parameters are maintained across the connector series.

Substiute Parts

USB-A2HSB6

On Shore Technology Inc.In Stock: 1103USB-A2HSB6 Datasheet

Current PartRFQ

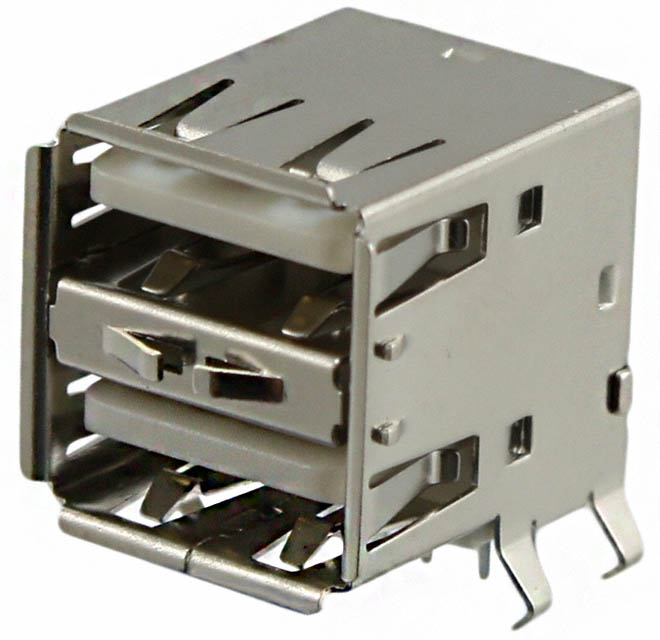

USB-A2HSW6

On Shore Technology Inc.In Stock: 963USB-A2HSW6 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for USB-A2HSB6 is determined by strict equivalence across the following critical parameters:

• Connector Type: USB-A (USB TYPE-A), Stacked
• Number of Contacts: 8
• Gender: Receptacle
• Mounting Type: Through Hole, Right Angle
• Mounting Feature: Horizontal
• Number of Ports: 2
• Current Rating: 1A
• Voltage - Rated: 30VAC
• Operating Temperature: 0°C ~ 50°C
• Contact Finish: Gold
• Shell/Shielding Material: Brass
• Material Flammability Rating: UL94 V-0
• Shielding: Unshielded
• Termination: Solder
• Features: Board Lock
• RoHS Status: ROHS3 Compliant
• Moisture Sensitivity Level: 1 (Unlimited)

The USB-A2HSW6 maintains identical electrical and mechanical specifications across all critical parameters. The only variation is insulation color (White vs. Black), which does not affect functional compatibility or electrical performance.

Parameter Comparison

Engineering Selection Recommendations

Both USB-A2HSB6 and USB-A2HSW6 are active products with ROHS3 compliance and identical electrical and mechanical specifications. Selection between these parts is based on insulation color requirements only. The USB-A2HSB6 features black insulation, while the USB-A2HSW6 features white insulation. Both parts maintain equivalent performance across all rated parameters including current capacity, voltage rating, operating temperature range, and contact finish specifications.

Frequently Asked Questions (FAQ)

Q: Can USB-A2HSW6 replace USB-A2HSB6 in existing designs?

A: Yes. The USB-A2HSW6 is electrically and mechanically equivalent to the USB-A2HSB6. The only difference is insulation color (white vs. black). All critical parameters including connector type, contact count, mounting configuration, current rating, voltage rating, and operating temperature are identical.

Q: What is the significance of the insulation color difference?

A: Insulation color is a cosmetic and identification feature that does not affect electrical performance or mechanical compatibility. Selection should be based on design aesthetics or internal documentation requirements only.

Q: Are both parts suitable for the same PCB footprint?

A: Yes. Both USB-A2HSB6 and USB-A2HSW6 share identical mounting specifications: through-hole, right-angle, horizontal mounting feature. They are footprint-compatible and pin-compatible.

Q: Do both parts meet the same compliance standards?

A: Yes. Both parts are ROHS3 compliant, have UL94 V-0 material flammability rating, and maintain MSL 1 (Unlimited) moisture sensitivity level. Compliance certifications are equivalent.

Q: What is the current rating for these connectors?

A: Both parts are rated for 1A continuous current at 30VAC maximum voltage. Operating temperature range is 0°C to 50°C.
