USB-A1SSB6 Equivalent & Substitute Parts

Part Overview

The USB-A1SSB6 is an active USB Type-A receptacle connector manufactured by On Shore Technology Inc., designed for through-hole, right-angle mounting applications. This 4-position connector features board lock retention and gold-plated contacts rated for 1A at 30VAC. The part is ROHS3 compliant and carries UL94 V-0 flammability certification, making it suitable for consumer and industrial electronic assemblies requiring standard USB connectivity.

Substitute parts are identified when equivalent electrical and mechanical parameters align with the main part specifications, enabling direct replacement in circuit designs without functional compromise.

Substiute Parts

USB-A1SSB6

On Shore Technology Inc.In Stock: 867USB-A1SSB6 Datasheet

Current PartRFQ

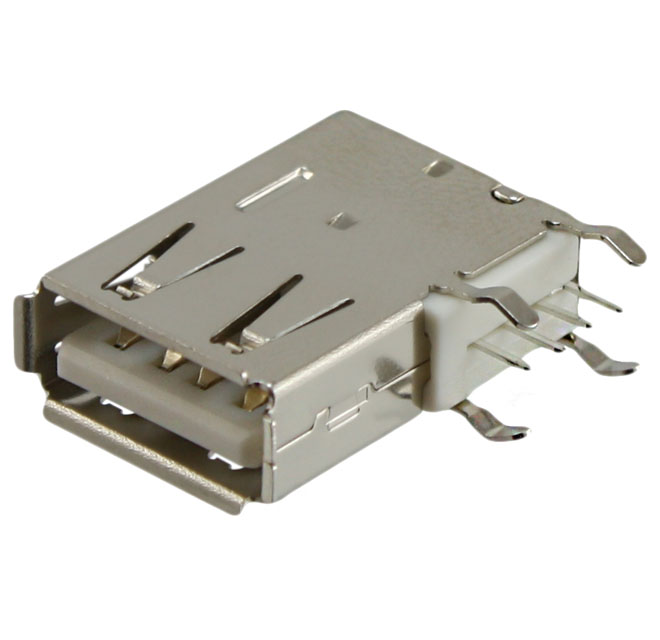

USB-A1SSW6

On Shore Technology Inc.In Stock: 14771USB-A1SSW6 Datasheet

Parametric EquivalentRFQ

KUSBXHT-SLAS1N-O30-HRF

Kycon, Inc.In Stock: 1427KUSBXHT-SLAS1N-O30-HRF Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts are classified based on strict alignment with the following critical parameters:

• Connector Type: USB-A (USB TYPE-A)
• Number of Contacts: 4
• Gender: Receptacle
• Mounting Type: Through Hole, Right Angle
• Mounting Feature: Vertical, Flag
• Termination: Solder
• Contact Finish: Gold
• Material Flammability Rating: UL94 V-0
• RoHS Status: ROHS3 Compliant
• Product Status: Active

Two substitute parts meet these criteria: USB-A1SSW6 (On Shore Technology Inc.) and KUSBXHT-SLAS1N-O30-HRF (Kycon, Inc.). Both maintain identical mechanical form factors and core electrical specifications, enabling direct substitution in applications where the main part is specified.

Parameter Comparison

Engineering Selection Recommendations

All three parts maintain active product status and full ROHS3 compliance with UL94 V-0 flammability certification. USB-A1SSW6 is a direct parametric equivalent from the same manufacturer, differing only in insulation color (white) and inventory availability. KUSBXHT-SLAS1N-O30-HRF from Kycon, Inc. provides equivalent mechanical and electrical performance with enhanced current rating (1.5A versus 1A) and documented mating cycle specification (1500 cycles), along with stainless steel shell construction. All three parts are suitable for applications requiring USB Type-A receptacle connectivity with through-hole, right-angle mounting and board lock retention.

Frequently Asked Questions (FAQ)

Q: Can USB-A1SSW6 be used as a direct replacement for USB-A1SSB6?

A: Yes. USB-A1SSW6 is a parametric equivalent from On Shore Technology Inc. with identical electrical ratings, mounting configuration, and compliance certifications. The only difference is insulation color (white versus white in the main part).

Q: What are the key differences between KUSBXHT-SLAS1N-O30-HRF and the On Shore parts?

A: KUSBXHT-SLAS1N-O30-HRF is manufactured by Kycon, Inc. and features a stainless steel shell versus brass, higher current rating (1.5A), dual voltage rating (30VAC/DC), and specified mating cycle rating (1500 cycles). All other mechanical and electrical parameters align with the main part.

Q: Are all three parts compatible with the same PCB footprint?

A: Yes. All three parts share identical mounting type (through hole, right angle), mounting feature (vertical flag), and connector type (USB-A receptacle), ensuring mechanical compatibility with the same PCB layout.

Q: Which part should be selected for high-cycle applications?

A: KUSBXHT-SLAS1N-O30-HRF specifies 1500 mating cycles, providing documented durability data for applications requiring repeated mating and unmating cycles.

Q: Are all parts RoHS3 compliant?

A: Yes. USB-A1SSB6, USB-A1SSW6, and KUSBXHT-SLAS1N-O30-HRF are all ROHS3 compliant with UL94 V-0 flammability certification.
