USB0002TP Equivalent & Substitute Parts Reference

Part Overview

The USB0002TP is a Transient Voltage Suppressor (TVS) manufactured by KYOCERA AVX, classified as a MULTIGUARD varistor circuit component. This device is designed for transient voltage suppression applications and is supplied in Tape & Reel packaging. The part maintains Active product status with full RoHS3 compliance and unlimited moisture sensitivity rating (MSL 1). Finding equivalent substitute parts is necessary to ensure supply chain continuity, optimize inventory management, and maintain design flexibility across manufacturing operations.

Substiute Parts

USB0002TP

KYOCERA AVXIn Stock: 1078USB0002TP Datasheet

Current PartRFQ

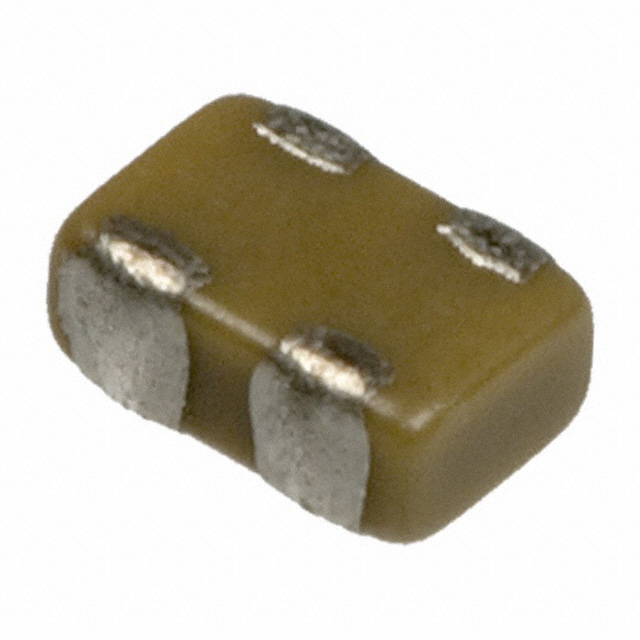

CANAT02DP

KYOCERA AVXIn Stock: 2924CANAT02DP Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the USB0002TP is determined by the following criteria:

Primary Substitution Criteria:

• Category: Transient Voltage Suppressors (TVS)
• Product Type: Varistor Circuit
• Packaging: Tape & Reel (TR)
• Compliance: RoHS3 Compliant, REACH Unaffected
• Moisture Sensitivity: MSL 1 (Unlimited)
• Product Status: Active

The substitute part CANAT02DP meets all primary substitution criteria. Both components are manufactured by KYOCERA AVX, belong to the TVS category with varistor circuit functionality, utilize identical Tape & Reel packaging, and maintain equivalent compliance certifications. Both parts carry Active product status with unlimited moisture sensitivity ratings, ensuring direct substitution capability within the specified parameter constraints.

Parameter Comparison

Engineering Selection Recommendations

The CANAT02DP is a qualified substitute for the USB0002TP based on compliance and product status alignment. Both components maintain Active product status, ensuring long-term availability and manufacturing support. Both parts are RoHS3 compliant and REACH unaffected, meeting current environmental and regulatory requirements. Both components carry MSL 1 (Unlimited) moisture sensitivity ratings, eliminating moisture-related handling constraints during assembly and storage.

The substitute part is supplied in identical Tape & Reel packaging, maintaining compatibility with standard component handling and placement equipment. Both parts are classified within the same TVS category with varistor circuit functionality, confirming functional equivalence within the specified parameter set.

Selection between these parts should be based on application-specific electrical requirements, as the CANAT02DP provides detailed electrical specifications (70 V varistor voltage, 4 A surge current, 0.015 J energy rating, 2 circuits, 22 pF capacitance) that may or may not align with the intended circuit design. The USB0002TP specifications for these electrical parameters are not provided in the reference data.

Frequently Asked Questions (FAQ)

Q: What makes CANAT02DP a valid substitute for USB0002TP?

A: Both components are manufactured by KYOCERA AVX, classified as Transient Voltage Suppressors with varistor circuit functionality, supplied in Tape & Reel packaging, and maintain identical RoHS3 compliance, REACH unaffected status, and MSL 1 moisture sensitivity ratings. Both parts carry Active product status.

Q: Are there packaging differences between USB0002TP and CANAT02DP?

A: Both parts utilize Tape & Reel (TR) packaging. The CANAT02DP is specified in 0405 (1012 Metric) package format. The USB0002TP package format is not specified in the reference data.

Q: Do both parts meet the same regulatory requirements?

A: Yes. Both USB0002TP and CANAT02DP are RoHS3 compliant, REACH unaffected, and carry EAR99 ECCN classification with identical HTSUS code 8533.40.4000.

Q: What is the moisture sensitivity difference between these parts?

A: There is no difference. Both components carry MSL 1 (Unlimited) moisture sensitivity rating, indicating no moisture-related handling restrictions during assembly, storage, or transportation.

Q: Can CANAT02DP be used in all applications where USB0002TP is specified?

A: Substitution eligibility depends on application-specific electrical requirements. The CANAT02DP provides detailed electrical specifications (70 V varistor voltage, 4 A surge current, 0.015 J energy, 2 circuits, 22 pF capacitance, -55°C to 150°C operating temperature). The USB0002TP electrical specifications are not provided. Electrical parameter alignment must be confirmed before substitution.

Q: What is the inventory status for these parts?

A: USB0002TP has 1064 pieces in stock. CANAT02DP has 2835 pieces in stock. Both are listed as New Original inventory.

Q: Are there any export or trade restrictions on these parts?

A: Both parts carry ECCN classification EAR99, which is subject to standard export control regulations. Both parts are classified under HTSUS code 8533.40.4000.
