Nichicon UPB2C220MPD1TD Equivalent & Substitute Parts

Part Overview

The Nichicon UPB2C220MPD1TD is a 22 µF, 160 V aluminum electrolytic capacitor in radial, can package with a rated lifetime of 5000 hours at 105°C. This part is classified as obsolete, making equivalent and substitute parts necessary for ongoing production and maintenance applications. Substitute parts maintain the core electrical specifications while offering improved product status, extended lifetime ratings, or enhanced operating temperature ranges.

Key Parameters

Parameter	Value
Capacitance	22 µF
Voltage Rating	160 V
Tolerance	±20%
Lifetime @ 105°C	5000 Hrs
Operating Temperature Range	-25°C ~ 105°C
Polarization	Polar
Lead Spacing	0.197" (5.00 mm)
Package Type	Radial, Can
Mounting Type	Through Hole
Ripple Current @ 120 Hz	250 mA
Ripple Current @ 100 kHz	500 mA

Substitute Part Grouping Explanation

Substitution eligibility is determined by the following criteria:

Direct Equivalents (Same Voltage Rating - 160 V):

UCA2C220MPD1TD: Identical electrical specifications with extended 10000-hour lifetime
UCS2C220MPD1TD: Active product status with 8000-hour lifetime and expanded operating temperature (-40°C ~ 105°C)
UPW2C220MPD1TD: Matching lifetime and voltage with extended temperature range

Voltage-Upgraded Substitutes (Higher Voltage Rating):

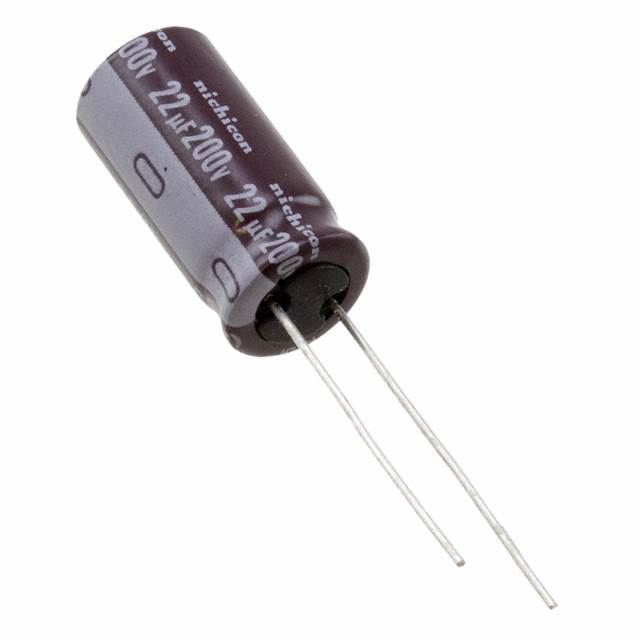

UCS2D220MPD1TD: 200 V rating (backward compatible for 160 V applications)
UCA2D220MPD1TD: 200 V rating with 10000-hour lifetime
UCY2D220MPD1TD: 200 V rating with extended 12000-hour lifetime
UCS2E220MPD1TD: 250 V rating with 8000-hour lifetime
UCY2E220MPD: 250 V rating with 12000-hour lifetime
UCY2V220MPD9TD: 350 V rating with 12000-hour lifetime

All substitute parts maintain identical capacitance (22 µF), tolerance (±20%), lead spacing (5.00 mm), and through-hole radial can package configuration.

Parameter Comparison

Part Number	Series	Voltage (V)	Lifetime @ 105°C (Hrs)	Operating Temp (°C)	Product Status	Packaging	Height (mm)
UPB2C220MPD1TD	UPB	160	5000	-25 ~ 105	Obsolete	Bulk	21.50
UCA2C220MPD1TD	UCA	160	10000	-25 ~ 105	Not For New Designs	Cut Tape	21.50
UCS2C220MPD1TD	UCS	160	8000	-40 ~ 105	Active	Cut Tape	21.50
UPW2C220MPD1TD	UPW	160	5000	-40 ~ 105	Not For New Designs	Cut Tape	22.00
UCS2D220MPD1TD	UCS	200	8000	-40 ~ 105	Active	Cut Tape	21.50
UCA2D220MPD1TD	UCA	200	10000	-25 ~ 105	Not For New Designs	Cut Tape	21.50
UCS2E220MPD1TD	UCS	250	8000	-40 ~ 105	Active	Cut Tape	21.50
UCY2D220MPD1TD	UCY	200	12000	-40 ~ 105	Active	Cut Tape	17.50
UCY2E220MPD	UCY	250	12000	-40 ~ 105	Active	Bulk	17.50
UCY2V220MPD9TD	UCY	350	12000	-40 ~ 105	Active	Cut Tape	21.50

Engineering Selection Recommendations

For Direct Replacement (Same Voltage, 160 V): UCS2C220MPD1TD is the primary recommendation. It maintains 160 V rating, offers 8000-hour lifetime (60% improvement over original), carries active product status, and supports extended operating temperature range (-40°C ~ 105°C). This part is ROHS3 compliant and suitable for new designs.

For Voltage-Upgraded Applications: When circuit design permits higher voltage ratings, UCY2D220MPD1TD provides the longest operational lifetime (12000 hours), active product status, and extended temperature range. The 200 V rating provides design margin for 160 V applications. Height is reduced to 17.50 mm, which may affect board layout compatibility.

For Maximum Voltage Margin: UCY2V220MPD9TD offers 350 V rating with 12000-hour lifetime and active status. This part is suitable for applications requiring significant voltage headroom or future design flexibility.

Compliance Considerations: All substitute parts are ROHS3 compliant. UCY series parts (UCY2D220MPD1TD, UCY2E220MPD, UCY2V220MPD9TD) carry REACH Affected status, requiring verification against specific application requirements. UCS and UCA series parts are REACH Unaffected.

Frequently Asked Questions (FAQ)

Q: Can UCS2C220MPD1TD directly replace UPB2C220MPD1TD? A: Yes. Both parts share identical capacitance (22 µF), voltage rating (160 V), tolerance (±20%), lead spacing (5.00 mm), and radial can package. UCS2C220MPD1TD offers improved lifetime (8000 vs. 5000 hours) and active product status.

Q: What is the difference between 160 V and 200 V rated parts? A: The 200 V parts (UCS2D220MPD1TD, UCA2D220MPD1TD, UCY2D220MPD1TD) are electrically compatible with 160 V applications and provide additional voltage margin. They are suitable for direct substitution when circuit design permits higher voltage ratings.

Q: Why do UCY series parts have reduced height (17.50 mm vs. 21.50 mm)? A: UCY series capacitors use optimized internal construction to achieve extended lifetime (12000 hours) within a more compact form factor. Board layout verification is required before substitution.

Q: Are all substitute parts ROHS3 compliant? A: Yes, all listed substitute parts are ROHS3 compliant. However, UCY series parts carry REACH Affected status, while UCS and UCA series are REACH Unaffected. Application-specific compliance requirements must be verified.

Q: Which part offers the best lifetime rating? A: UCY series parts (UCY2D220MPD1TD, UCY2E220MPD, UCY2V220MPD9TD) provide 12000-hour lifetime at 105°C, representing a 140% improvement over the original UPB2C220MPD1TD specification.

Q: Can I use a higher capacitance value as a substitute? A: No. All listed substitutes maintain 22 µF capacitance. Capacitance value changes alter circuit behavior and are not equivalent substitutions.
