UP3(CART) Equivalent & Substitute Parts

Part Overview

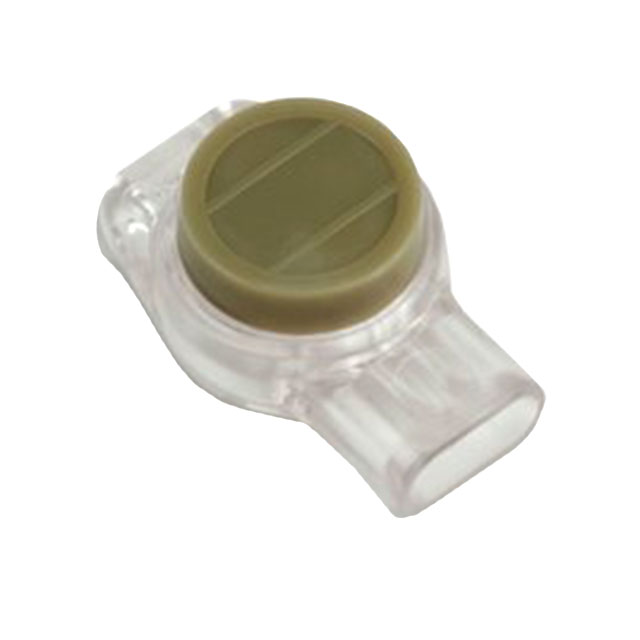

The UP3(CART) is a Terminal Butt Splice connector manufactured by 3M, designed for IDC (Insulation Displacement Connector) termination of 19-26 AWG wire. This component features closed-end, individual openings configuration with full insulation and flame retardant properties, classified under the Scotchlok™ series. The part is currently discontinued at DiGi Electronics, necessitating identification of functionally equivalent alternatives for ongoing applications requiring this terminal type and wire gauge specification.

Substiute Parts

UP3(CART)

3MIn Stock: 878UP3(CART) Datasheet

Current PartRFQ

VDV826-605

Klein Tools, Inc.In Stock: 1432VDV826-605 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the UP3(CART) is determined by strict alignment of the following critical parameters:

• Terminal Type: Butt Splice, Closed End, Individual Openings
• Termination Method: IDC (Insulation Displacement Connector)
• Wire Gauge Range: 19-26 AWG
• Insulation: Fully Insulated
• Connector Configuration: Individual wire entry openings

The VDV826-605 manufactured by Klein Tools, Inc. satisfies all mandatory substitution criteria. Both components employ identical IDC termination technology, support the same wire gauge specification (19-26 AWG), and provide fully insulated butt splice configurations with individual openings. The substitute maintains functional equivalence for applications requiring reliable wire splicing within the specified gauge range.

Parameter Comparison

Engineering Selection Recommendations

The VDV826-605 is the designated manufacturer-recommended substitute for the discontinued UP3(CART). Both components share identical ECCN and HTSUS classifications, confirming regulatory equivalence. The substitute maintains active product status with confirmed inventory availability (1412 pcs), ensuring supply chain continuity. Applications currently utilizing UP3(CART) terminals can transition directly to VDV826-605 without modification to wire gauge specifications or termination procedures. The substitute's gel-filled feature provides enhanced environmental protection compared to the original component's flame retardant specification, offering improved performance in moisture-prone installations.

Frequently Asked Questions (FAQ)

Q: Can VDV826-605 directly replace UP3(CART) in existing applications?

A: Yes. Both components support 19-26 AWG wire, employ IDC termination, and provide fully insulated butt splice configurations with individual openings. No circuit or assembly modifications are required.

Q: What is the primary difference between UP3(CART) and VDV826-605?

A: The VDV826-605 incorporates gel-filled construction and is supplied in bulk packaging (25 per pack) with red color identification. The UP3(CART) features flame retardant properties. Both satisfy the core functional requirements for 19-26 AWG IDC termination.

Q: Are there packaging considerations when switching to VDV826-605?

A: Yes. The VDV826-605 is supplied in bulk packaging (25 connectors per pack), whereas the UP3(CART) was supplied individually. Procurement quantities should account for this packaging configuration.

Q: Do both parts comply with RoHS requirements?

A: The UP3(CART) is explicitly RoHS Compliant. The VDV826-605 lists RoHS Status as Not Applicable. Verify RoHS compliance requirements for your specific application before final selection.

Q: What wire gauges are supported by the substitute?

A: The VDV826-605 supports 19-26 AWG wire, matching the original UP3(CART) specification. Wire gauge compatibility is maintained across the substitution.
