UICFPHSE2IG Equivalent & Substitute Parts

Part Overview

The UICFPHSE2IG is a 2 Port Faceplate Gray Single Gang Keystone connector manufactured by Panduit Corp as part of the Mini-Com® Series. This component functions as a wall-mounted interface for two angled/sloped port connections in networking and telecommunications installations. The product is classified as Obsolete, necessitating identification of equivalent substitute components for ongoing system maintenance and new installations where gray faceplates are not critical to application requirements.

Substiute Parts

UICFPHSE2IG

Panduit CorpIn Stock: 1013UICFPHSE2IG Datasheet

Current PartRFQ

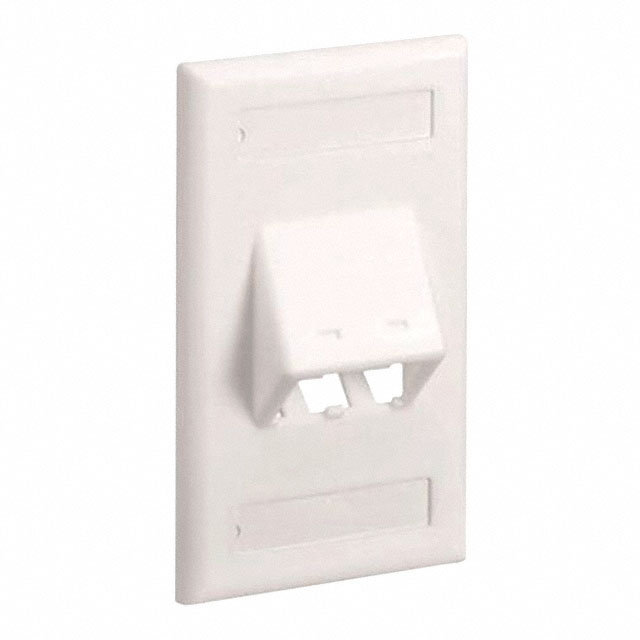

CFPSL2WHY

Panduit CorpIn Stock: 845CFPSL2WHY Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the UICFPHSE2IG is determined by the following critical parameters that must remain constant across equivalent components:

Mandatory Matching Parameters:

• Manufacturer: Panduit Corp
• Category: Keystone Connectors
• Series: Mini-Com®
• Type: Faceplate
• Style: Single Gang
• Number of Ports: 2
• Port Direction: Angled/Sloped
• Material: Acrylonitrile Butadiene Styrene (ABS)
• Features: Label Cover/Holder with Labels, Mounting Hardware
• Compliance: ROHS3 Compliant, REACH Unaffected

Variable Parameters Allowing Substitution:

• Color (Gray to White)
• Depth (1.165" to 1.055")
• Product Status (Obsolete to Active)

The CFPSL2WHY substitute maintains all functional and mechanical compatibility requirements while differing only in color specification and minor depth variation within acceptable tolerances for single gang wall-mounted installations.

Parameter Comparison

Engineering Selection Recommendations

The CFPSL2WHY serves as a direct functional substitute for the obsolete UICFPHSE2IG. Both components maintain identical electrical and mechanical specifications for Mini-Com® Series 2 port single gang faceplate applications with angled/sloped port orientation.

Compliance Basis for Selection: Both parts satisfy ROHS3 Compliance and REACH Unaffected requirements, ensuring regulatory alignment for current and future installations. The CFPSL2WHY holds Active product status, providing assured long-term availability and supply chain continuity compared to the Obsolete UICFPHSE2IG.

Physical Compatibility: The depth differential of 0.110" (2.80mm) between the two faceplates falls within standard wall-mounted installation tolerances for single gang configurations. Both components utilize identical length and width dimensions (4.500" × 2.748"), ensuring mounting hardware and wall box compatibility.

Material and Feature Parity: Both faceplates employ ABS material construction and include identical label cover/holder with labels and mounting hardware features, maintaining functional equivalence in labeling and installation applications.

Frequently Asked Questions (FAQ)

Q: Can CFPSL2WHY replace UICFPHSE2IG in existing installations?

A: Yes. The CFPSL2WHY provides functional replacement for the UICFPHSE2IG in all Mini-Com® Series 2 port single gang applications. The primary difference is color (White versus Gray) and a 0.110" reduction in depth. Both components share identical port configuration, mounting dimensions, and feature sets.

Q: What is the significance of the depth difference between these faceplates?

A: The CFPSL2WHY measures 1.055" (26.80mm) in depth compared to the UICFPHSE2IG at 1.165" (29.60mm). This 0.110" (2.80mm) variation is within acceptable tolerances for single gang wall-mounted installations and does not affect electrical or mechanical compatibility with Mini-Com® Series components.

Q: Are both parts compliant with current regulatory standards?

A: Yes. Both the UICFPHSE2IG and CFPSL2WHY are ROHS3 Compliant and REACH Unaffected, meeting current environmental and hazardous substance regulations.

Q: Why is the UICFPHSE2IG classified as Obsolete?

A: The Obsolete status indicates the UICFPHSE2IG is no longer in active production. The CFPSL2WHY, with Active product status, represents the current production equivalent within the Mini-Com® Series faceplate lineup.

Q: Are the mounting hardware and label features identical between these parts?

A: Yes. Both faceplates include Label Cover/Holder with Labels and Mounting Hardware as standard features, providing equivalent functionality for installation and identification purposes.

Q: What material composition do these faceplates use?

A: Both the UICFPHSE2IG and CFPSL2WHY are constructed from Acrylonitrile Butadiene Styrene (ABS), providing consistent durability and chemical resistance across both components.

Q: Can color selection influence the substitution decision?

A: Color is a variable parameter in substitution. The CFPSL2WHY is available in White, while the UICFPHSE2IG is Gray. Color selection depends on installation aesthetics and facility standards but does not affect electrical or mechanical performance.
