UHM1C182MPD Equivalent & Substitute Parts

Part Overview

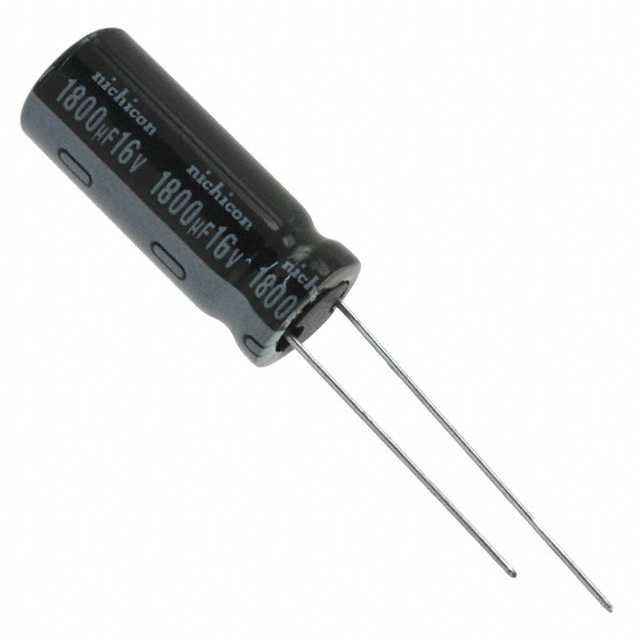

The UHM1C182MPD is a 1800 µF, 16 V aluminum electrolytic capacitor in radial, can package manufactured by Nichicon. This part is classified as obsolete, making equivalent and substitute parts necessary for ongoing production and maintenance applications. The UHM series offers a 2000-hour lifetime rating at 105°C with general-purpose applications in through-hole designs.

Key Parameters

Parameter	Value
Capacitance	1800 µF
Voltage Rating	16 V
Tolerance	±20%
Lifetime @ 105°C	2000 Hrs
Operating Temperature Range	-40°C ~ 105°C
Polarization	Polar
Lead Spacing	0.197" (5.00 mm)
Case Diameter	0.394" (10.00 mm)
Mounting Type	Through Hole
Package Type	Radial, Can

Substitute Part Grouping Explanation

Substitution eligibility is determined by strict electrical and mechanical parameter matching:

Electrical Parameters (Must Match):

Capacitance: 1800 µF
Voltage Rating: 16 V
Tolerance: ±20%
Polarization: Polar

Mechanical Parameters (Must Match):

Lead Spacing: 0.197" (5.00 mm)
Case Diameter: 0.394" (10.00 mm)
Mounting Type: Through Hole
Package Type: Radial, Can

Allowable Variations:

Lifetime @ 105°C: May exceed minimum 2000 hours
Height: Variations permitted within physical envelope constraints
Impedance: Variations permitted within operational limits

All substitute parts listed maintain identical electrical specifications and mechanical footprints, ensuring direct replacement capability in existing circuit designs.

Parameter Comparison

Part Number	Manufacturer	Capacitance	Voltage	Tolerance	Lifetime @ 105°C	Height (Max)	Impedance	Product Status
UHM1C182MPD	Nichicon	1800 µF	16 V	±20%	2000 Hrs	0.984" (25.00 mm)	12 mOhms	Obsolete
UHV1C182MPD	Nichicon	1800 µF	16 V	±20%	6000 Hrs	1.063" (27.00 mm)	17 mOhms	Not For New Designs
16ZLH1800MEFC10X23	Rubycon	1800 µF	16 V	±20%	10000 Hrs	0.984" (25.00 mm)	18 mOhms	Active
16ZLS1800MEFC10X23	Rubycon	1800 µF	16 V	±20%	6000 Hrs	0.984" (25.00 mm)	18 mOhms	Active
EEU-FR1C182L	Panasonic Electronic Components	1800 µF	16 V	±20%	10000 Hrs	1.063" (27.00 mm)	18 mOhms	Active
EEU-FR1C182LB	Panasonic Electronic Components	1800 µF	16 V	±20%	10000 Hrs	1.063" (27.00 mm)	18 mOhms	Active

Engineering Selection Recommendations

For Direct Footprint Replacement (Same Height):

16ZLH1800MEFC10X23 (Rubycon, Active status, 10000-hour lifetime)
16ZLS1800MEFC10X23 (Rubycon, Active status, 6000-hour lifetime)

Both Rubycon parts maintain the original 0.984" (25.00 mm) height and are currently in active production status, making them suitable for new designs and ongoing production.

For Extended Lifetime with Height Tolerance:

EEU-FR1C182L (Panasonic, Active status, 10000-hour lifetime, Bulk packaging)
EEU-FR1C182LB (Panasonic, Active status, 10000-hour lifetime, Cut Tape packaging)

Panasonic parts offer 10000-hour lifetime ratings and are actively produced. Height increases to 1.063" (27.00 mm); verify PCB layout clearance before selection.

For Nichicon Continuity:

UHV1C182MPD (Nichicon, Not For New Designs, 6000-hour lifetime)

This part extends lifetime to 6000 hours but carries "Not For New Designs" status and increases height to 1.063" (27.00 mm).

Compliance Considerations:

All substitute parts are ROHS3 compliant except the main part UHM1C182MPD
Panasonic and Rubycon parts carry REACH Unaffected or REACH Affected designations; verify regulatory requirements for your application

Frequently Asked Questions (FAQ)

Q: Can I use 16ZLH1800MEFC10X23 as a direct replacement for UHM1C182MPD?

A: Yes. Both parts share identical electrical specifications (1800 µF, 16 V, ±20% tolerance), lead spacing (5.00 mm), case diameter (10.00 mm), and height (25.00 mm). The Rubycon part is currently in active production with extended 10000-hour lifetime.

Q: What is the difference between EEU-FR1C182L and EEU-FR1C182LB?

A: Both Panasonic parts are electrically and mechanically identical. The difference is packaging: EEU-FR1C182L is supplied in Bulk, while EEU-FR1C182LB is supplied in Cut Tape (CT). Select based on your procurement and assembly requirements.

Q: Will the taller Panasonic parts (1.063" height) fit my PCB?

A: The Panasonic parts increase height by 0.079" (2.00 mm) compared to the original UHM1C182MPD. Verify your PCB layout and component clearance specifications before selection. If height is constrained, use 16ZLH1800MEFC10X23 or 16ZLS1800MEFC10X23 (both 0.984" height).

Q: Why is UHV1C182MPD marked "Not For New Designs"?

A: This designation indicates the part is in mature or declining production phase. While available for legacy system support, Rubycon or Panasonic alternatives are recommended for new designs.

Q: Are all substitute parts RoHS compliant?

A: The original UHM1C182MPD is not RoHS compliant. All substitute parts listed (UHV1C182MPD, 16ZLH1800MEFC10X23, 16ZLS1800MEFC10X23, EEU-FR1C182L, EEU-FR1C182LB) are ROHS3 compliant.

Q: What is the impedance difference between parts, and does it matter?

A: Impedance ranges from 12 mOhms (UHM1C182MPD) to 18 mOhms (Rubycon and Panasonic parts). For general-purpose applications, these variations are within acceptable operating parameters. Verify ripple current and thermal performance requirements for your specific circuit.
