Equivalent & Substitute Parts for UES1C221MPM

Part Overview

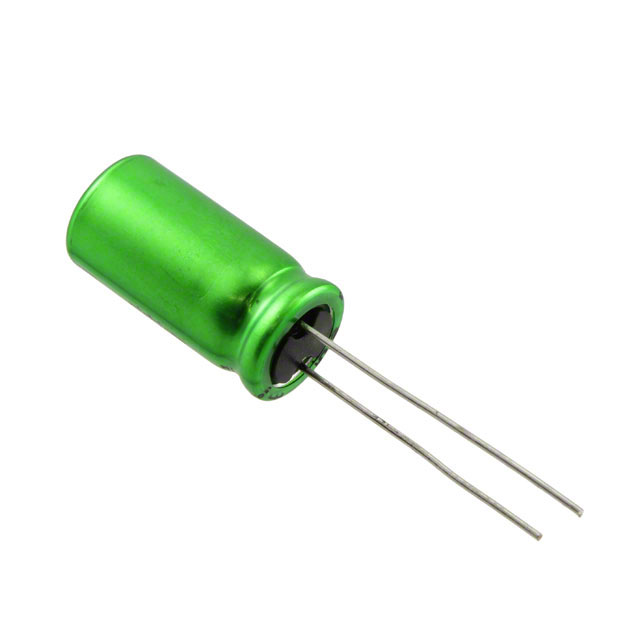

The UES1C221MPM is a 220 µF, 16 V aluminum electrolytic capacitor in radial configuration manufactured by Nichicon. This component is rated for 1000 hours at 85°C and is designed for audio applications. The part carries a "Not For New Designs" status, indicating it has been superseded in Nichicon's product line. Finding equivalent or substitute components is necessary for ongoing maintenance, repair, and legacy system support where original stock may be depleted.

Substiute Parts

UES1C221MPM

NichiconIn Stock: 1845UES1C221MPM Datasheet

Current PartRFQ

35NXA220MEFC10X20

RubyconIn Stock: 124135NXA220MEFC10X20 Datasheet

UpgradeRFQ

Key Parameters

Substitute Part Grouping Explanation

The Rubycon 35NXA220MEFC10X20 qualifies as a substitute for the UES1C221MPM based on the following alignment of critical parameters:

• Capacitance Match: Both parts are 220 µF
• Tolerance Match: Both maintain ±20% tolerance
• Polarization Match: Both are bi-polar configurations
• Lead Spacing Match: Both use 0.197" (5.00mm) lead spacing
• Case Diameter Match: Both use 0.394" (10.00mm) diameter
• Mounting Type Match: Both are through-hole radial components
• Package Type Match: Both are radial, can configurations
• Compliance Match: Both are ROHS3 compliant

The 35NXA220MEFC10X20 provides enhanced electrical performance with a higher voltage rating (35 V vs. 16 V) and extended operating temperature range (-55°C ~ 105°C vs. -40°C ~ 85°C), making it suitable for applications requiring the original part's specifications while offering improved reliability margins.

Parameter Comparison

Engineering Selection Recommendations

The 35NXA220MEFC10X20 is suitable as a direct substitute for the UES1C221MPM in applications requiring the original specifications. Both components meet ROHS3 compliance requirements. The Rubycon part carries an "Active" product status, ensuring continued availability and supply chain stability compared to the Nichicon part's "Not For New Designs" designation. The marginal height difference (0.020" / 0.50mm) falls within typical PCB layout tolerances for through-hole radial components. The higher voltage rating and extended temperature range of the substitute provide additional operational margin without compromising form factor compatibility.
