Equivalent & Substitute Parts for UCS2D220MPD

Part Overview

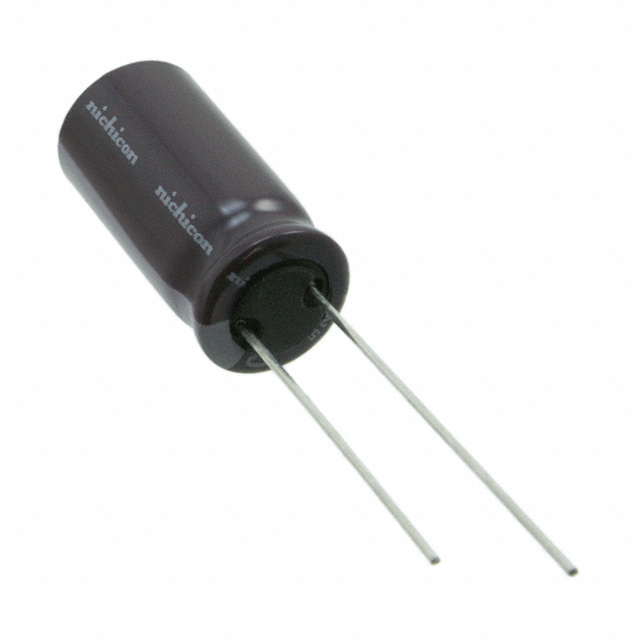

The Nichicon UCS2D220MPD is a 22 µF, 200 V aluminum electrolytic capacitor in radial, can package with a rated lifetime of 8000 hours at 105°C. This component is classified as Active product status and is suitable for general-purpose applications requiring through-hole mounting. Substitute parts are identified when design requirements necessitate higher voltage ratings, extended operational lifetime, automotive-grade reliability, or improved availability across manufacturing batches.

Key Parameters

Parameter	Value
Capacitance	22 µF
Voltage - Rated	200 V
Tolerance	±20%
Lifetime @ Temperature	8000 Hrs @ 105°C
Operating Temperature Range	-40°C ~ 105°C
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.846" (21.50mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
RoHS Status	ROHS3 Compliant

Substitute Part Grouping Explanation

Substitute parts for the UCS2D220MPD are qualified based on the following criteria:

Electrical Compatibility:

Capacitance value: 22 µF (exact match required)
Tolerance: ±20% (exact match required)
Polarization: Polar (exact match required)
Operating temperature range: -40°C ~ 105°C (exact match required)

Mechanical Compatibility:

Lead spacing: 0.197" (5.00mm) (exact match required)
Size / Dimension: 0.394" Dia (10.00mm) (exact match required)
Height - Seated (Max): 0.846" (21.50mm) (exact match required)
Mounting type: Through Hole (exact match required)
Package / Case: Radial, Can (exact match required)

Allowable Variations:

Voltage - Rated: May be equal to or higher than 200 V
Lifetime @ Temperature: May be equal to or higher than 8000 Hrs @ 105°C
Ripple current ratings: May vary within design margins
Manufacturer: Different manufacturers permitted if all other parameters match
Series designation: May differ between manufacturers
Compliance certifications: May include additional certifications (e.g., AEC-Q200, automotive-grade)

Parameter Comparison

Parameter	UCS2D220MPD (Main)	UCS2E220MPD (Upgrade)	UCY2V220MPD9 (Upgrade)	EKXJ351ELL220MJ20S (Upgrade)
Manufacturer	Nichicon	Nichicon	Nichicon	Chemi-Con
Capacitance	22 µF	22 µF	22 µF	22 µF
Tolerance	±20%	±20%	±20%	±20%
Voltage - Rated	200 V	250 V	350 V	350 V
Lifetime @ Temp.	8000 Hrs @ 105°C	8000 Hrs @ 105°C	12000 Hrs @ 105°C	10000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C
Ripple Current @ 120 Hz	250 mA	250 mA	215 mA	200 mA
Ripple Current @ 100 kHz	500 mA	500 mA	430 mA	500 mA
Lead Spacing	0.197" (5.00mm)	0.197" (5.00mm)	0.197" (5.00mm)	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)	0.394" Dia (10.00mm)	0.394" Dia (10.00mm)	0.394" Dia (10.00mm)
Height - Seated (Max)	0.846" (21.50mm)	0.846" (21.50mm)	0.846" (21.50mm)	0.846" (21.50mm)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	Radial, Can	Radial, Can	Radial, Can	Radial, Can
RoHS Status	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant
Product Status	Active	Active	Active	Active

Engineering Selection Recommendations

UCS2E220MPD (Nichicon): This substitute provides a 250 V rated voltage with identical 8000-hour lifetime at 105°C. Electrical and mechanical parameters remain unchanged from the main part. Selection is appropriate when circuit design requires voltage margin above 200 V while maintaining equivalent operational lifetime.

UCY2V220MPD9 (Nichicon): This substitute offers 350 V rated voltage with extended 12000-hour lifetime at 105°C. The higher voltage rating and extended lifetime provide design margin for demanding applications. Ripple current ratings are reduced compared to the main part. Selection is appropriate for applications requiring extended operational life or higher voltage stress tolerance.

EKXJ351ELL220MJ20S (Chemi-Con): This substitute provides 350 V rated voltage with 10000-hour lifetime at 105°C and includes AEC-Q200 automotive-grade certification. Mechanical and electrical parameters are compatible with the main part. Selection is appropriate for automotive applications or designs requiring third-party manufacturer qualification.

Frequently Asked Questions (FAQ)

Q: Can UCS2E220MPD be used as a direct replacement for UCS2D220MPD?

A: Yes. The UCS2E220MPD maintains identical capacitance, tolerance, operating temperature range, and mechanical dimensions. The 250 V rating is higher than the 200 V requirement, providing additional voltage margin. Lifetime at 105°C remains 8000 hours.

Q: What is the primary difference between UCY2V220MPD9 and UCS2D220MPD?

A: The UCY2V220MPD9 provides 350 V rated voltage (versus 200 V) and extended 12000-hour lifetime at 105°C (versus 8000 hours). All mechanical dimensions and lead spacing are identical. Ripple current ratings are lower due to the higher voltage rating.

Q: Is EKXJ351ELL220MJ20S suitable for automotive applications?

A: Yes. The EKXJ351ELL220MJ20S carries AEC-Q200 automotive-grade certification and is manufactured by Chemi-Con. It provides 350 V rated voltage and 10000-hour lifetime at 105°C with identical mechanical compatibility.

Q: Do all substitute parts fit the same PCB footprint as UCS2D220MPD?

A: Yes. All substitute parts maintain identical lead spacing (0.197" / 5.00mm), diameter (0.394" / 10.00mm), and maximum seated height (0.846" / 21.50mm). Through-hole mounting compatibility is preserved across all parts.

Q: Can a lower voltage-rated substitute be used if the circuit only requires 150 V?

A: No. Substitutes must maintain voltage ratings equal to or higher than the original part specification. Lower voltage ratings are not permitted.

Q: What is the significance of the ±20% tolerance specification?

A: The ±20% tolerance indicates the allowable capacitance variation from the nominal 22 µF value. All substitute parts maintain this identical tolerance specification, ensuring equivalent circuit performance characteristics.
