UAS2G820MHD Equivalent & Substitute Parts

Part Overview

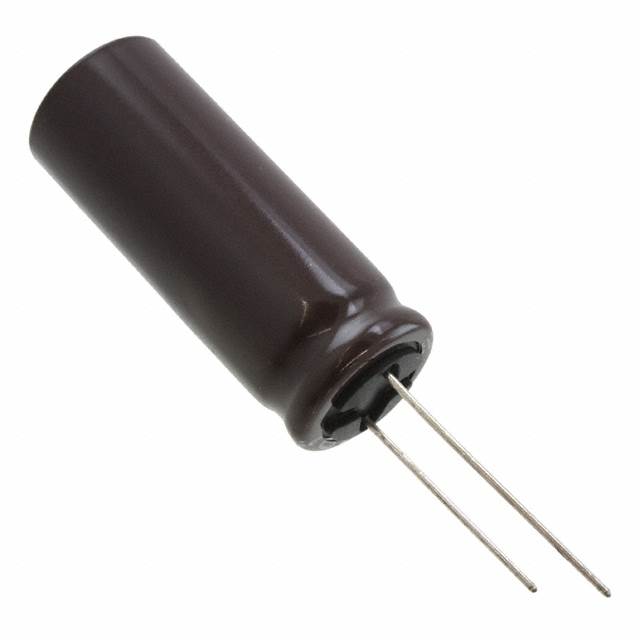

The Nichicon UAS2G820MHD is an 82 µF, 400 V aluminum electrolytic capacitor in radial, can package configuration. This component is designed for general-purpose applications requiring through-hole mounting with a 2000-hour lifetime rating at 105°C. The part is currently active in production and ROHS3 compliant. Substitute parts are identified when equivalent electrical and mechanical specifications are required due to inventory constraints, application upgrades, or design optimization needs.

Substiute Parts

UAS2G820MHD

NichiconIn Stock: 849UAS2G820MHD Datasheet

Current PartRFQ

450BXW82MEFR16X40

RubyconIn Stock: 1576450BXW82MEFR16X40 Datasheet

UpgradeRFQ

Key Parameters

Substitute Part Grouping Explanation

The Rubycon 450BXW82MEFR16X40 qualifies as a direct substitute for the Nichicon UAS2G820MHD based on the following criteria:

Electrical Compatibility:

• Identical capacitance value: 82 µF
• Identical tolerance: ±20%
• Voltage rating upgrade: 450 V (exceeds 400 V requirement)
• Operating temperature range match: -40°C ~ 105°C
• Polarization match: Polar

Mechanical Compatibility:

• Identical package type: Radial, Can
• Identical mounting type: Through Hole
• Identical physical dimensions: 0.630" Dia (16.00mm), 1.654" Height (42.00mm)
• Identical lead spacing: 0.295" (7.50mm)

Compliance & Status:

• Both parts are Active product status
• Both are ROHS3 Compliant
• Both are REACH Unaffected
• Both share identical ECCN and HTSUS classifications

Parameter Comparison

Engineering Selection Recommendations

The Rubycon 450BXW82MEFR16X40 is a qualified substitute for the Nichicon UAS2G820MHD in applications where the original part is unavailable. Both components maintain Active product status and full ROHS3 compliance. The substitute part provides enhanced electrical performance characteristics, including higher voltage rating (450 V vs. 400 V), extended lifetime (12000 Hrs vs. 2000 Hrs at 105°C), and increased ripple current handling capability. Mechanical and thermal specifications are identical, ensuring direct board-level compatibility without design modification. Selection between these parts should be based on availability and application-specific performance requirements.

Frequently Asked Questions (FAQ)

Q: Can the Rubycon 450BXW82MEFR16X40 be used as a direct replacement for the Nichicon UAS2G820MHD?

A: Yes. Both parts share identical capacitance (82 µF), tolerance (±20%), operating temperature range (-40°C ~ 105°C), physical dimensions (0.630" Dia × 1.654" Height), lead spacing (0.295"), and mounting configuration (through-hole radial can). The substitute part exceeds the voltage requirement (450 V vs. 400 V) and provides superior lifetime and ripple current ratings.

Q: Are there any mechanical compatibility concerns?

A: No. Both parts are identical in package type (radial, can), physical dimensions, and lead spacing. No PCB layout modifications are required for substitution.

Q: What are the compliance differences between these parts?

A: Both parts are ROHS3 compliant, REACH unaffected, and share identical ECCN (EAR99) and HTSUS (8532.22.0020) classifications. No compliance barriers exist for substitution.

Q: Does the higher voltage rating of the substitute part affect circuit operation?

A: No. A higher voltage-rated capacitor operates safely in circuits designed for lower voltage ratings. The 450 V rating of the substitute part provides additional safety margin in the 400 V application.

Q: What is the significance of the extended lifetime rating?

A: The Rubycon part provides 12000 hours at 105°C compared to 2000 hours for the Nichicon part. This represents a 6× improvement in thermal life expectancy, indicating enhanced reliability in high-temperature operating conditions.
