U86-D4427-10121 Equivalent & Substitute Parts

Part Overview

The U86-D4427-10121 is a 160-position SFP+ receptacle connector with cage manufactured by Amphenol ICC. This ganged (2x4) connector features press-fit through-hole mounting in a right-angle configuration and is designed for high-density optical transceiver applications. The part is currently obsolete, necessitating identification of functionally equivalent alternatives for ongoing system support and new designs requiring compatible interconnect solutions.

Substiute Parts

U86-D4427-10121

Amphenol ICC (Commercial Products)In Stock: 924U86-D4427-10121 Datasheet

Current PartRFQ

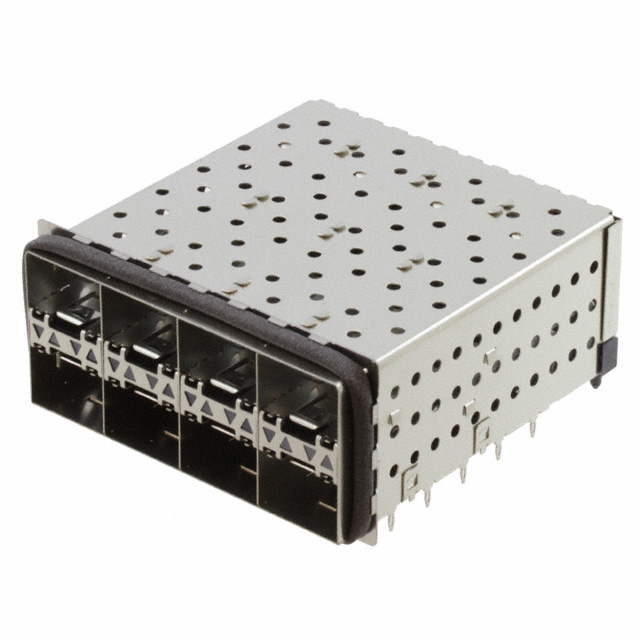

2007399-5

TE Connectivity AMP ConnectorsIn Stock: 8682007399-5 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the U86-D4427-10121 is determined by strict equivalence across the following critical parameters:

Electrical and Mechanical Compatibility Requirements:

• Connector Type: SFP+ (optical transceiver interface standard)
• Number of Positions: 160 (20 x 8) configuration
• Connector Style: Receptacle with Cage, Ganged (2x4) arrangement
• Mounting Type: Through Hole, Right Angle orientation
• Termination Method: Press-Fit technology
• Contact Finish: Gold plating

Environmental and Regulatory Compliance:

• RoHS Compliance Status
• Moisture Sensitivity Level: 1 (Unlimited)
• ECCN Classification: EAR99

The substitute part 2007399-5 from TE Connectivity AMP Connectors satisfies all critical parameters, with the addition of EMI shielding as an enhanced feature. Both parts maintain identical electrical and mechanical specifications for direct substitution in applications requiring SFP+ ganged receptacle connectors.

Parameter Comparison

Engineering Selection Recommendations

Primary Substitute: 2007399-5 (TE Connectivity AMP Connectors)

The 2007399-5 is the direct functional equivalent for the obsolete U86-D4427-10121. Both connectors share identical electrical and mechanical specifications across all critical parameters: SFP+ connector type, 160-position ganged (2x4) configuration, through-hole right-angle mounting, and press-fit termination.

Compliance Advantages:

The 2007399-5 maintains current active product status with ROHS3 compliance, providing superior long-term supply chain availability compared to the obsolete U86-D4427-10121. Both parts carry EAR99 export classification and unlimited moisture sensitivity rating (MSL 1).

Feature Enhancement:

The 2007399-5 incorporates EMI shielding in addition to the board guide and light pipe features present in the original part. This enhancement provides improved electromagnetic interference rejection without altering mechanical or electrical compatibility.

Inventory Consideration:

The U86-D4427-10121 maintains 906 pieces in current stock, while the 2007399-5 substitute has 805 pieces available. For applications requiring immediate component availability, either part satisfies current inventory requirements.

Frequently Asked Questions (FAQ)

Q: Can the 2007399-5 be used as a direct replacement for the U86-D4427-10121 in existing designs?

A: Yes. Both connectors share identical specifications for connector type (SFP+), position count (160), configuration (ganged 2x4), mounting method (through-hole right-angle), and termination technology (press-fit). The 2007399-5 is a direct functional substitute.

Q: What is the significance of the EMI shielding feature in the 2007399-5?

A: The EMI shielding in the 2007399-5 provides enhanced electromagnetic interference rejection. This is an additional feature that does not affect mechanical or electrical compatibility with the original U86-D4427-10121 specification.

Q: Are there compliance differences between the two parts?

A: Both parts are RoHS compliant. The U86-D4427-10121 carries RoHS compliance status, while the 2007399-5 carries ROHS3 compliance, representing a more current regulatory standard. Both maintain EAR99 export classification and MSL 1 moisture sensitivity rating.

Q: Why is the U86-D4427-10121 listed as obsolete?

A: The U86-D4427-10121 is obsolete as a product line designation. The 2007399-5 from TE Connectivity represents the active equivalent in the current market, ensuring ongoing availability and supply chain support.

Q: What packaging format is the 2007399-5 supplied in?

A: The 2007399-5 is supplied in tray packaging. The original U86-D4427-10121 packaging format is not specified in the available documentation.

Q: Are the contact finish specifications identical between both parts?

A: Both parts feature gold contact finish. The U86-D4427-10121 specifies 30.0µin (0.76µm) contact finish thickness. The 2007399-5 contact finish thickness is not specified in available documentation.

Q: What is the base product number for each connector?

A: The U86-D4427-10121 carries base product number U86 from Amphenol ICC. The 2007399-5 carries base product number 2007399 from TE Connectivity AMP Connectors.
