U86-D2627-321 SFP+ Receptacle Connector

Part Overview

The U86-D2627-321 is a 240-position SFP+ receptacle connector with cage manufactured by Amphenol ICC. This ganged (2x6) connector is configured for press-fit through-hole right-angle mounting and includes integrated board guide and light pipe features. The product is currently obsolete, necessitating identification of active equivalent alternatives to maintain design continuity and ensure ongoing component availability for new production runs and service operations.

Substiute Parts

U86-D2627-321

Amphenol ICC (Commercial Products)In Stock: 1094U86-D2627-321 Datasheet

Current PartRFQ

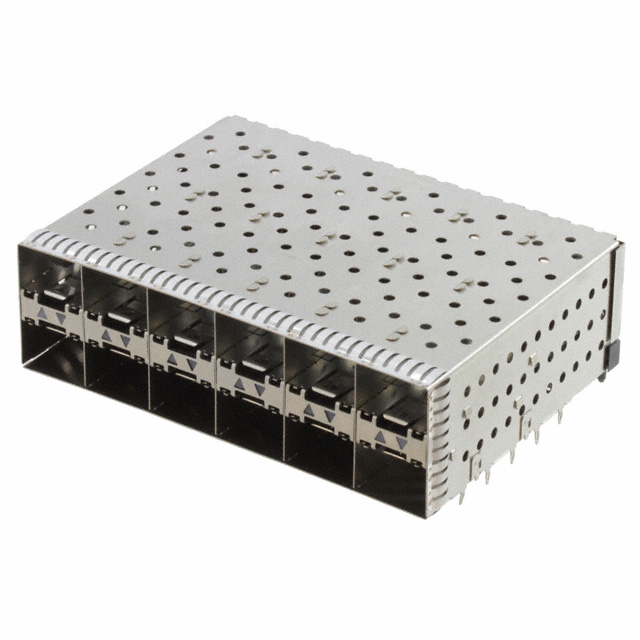

2007562-6

TE Connectivity AMP ConnectorsIn Stock: 14042007562-6 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the obsolete U86-D2627-321 with active alternatives is determined by the following critical parameters:

Primary Equivalence Criteria:

• Connector Type: SFP+ (high-speed serial interface standard)
• Connector Style: Receptacle with Cage, Ganged (2x6) configuration
• Number of Positions: 240 (20 x 12) array
• Mounting Type: Through Hole, Right Angle orientation
• Termination Method: Press-Fit technology

Secondary Compatibility Parameters:

• Contact Finish: Gold plating for signal integrity and corrosion resistance
• Integrated Features: Board Guide and Light Pipe for mechanical guidance and optical alignment
• Compliance Standards: RoHS and Moisture Sensitivity Level 1

The substitute part 2007562-6 satisfies all primary equivalence criteria with identical electrical and mechanical specifications, ensuring pin-for-pin compatibility and form-factor interchangeability.

Parameter Comparison

Engineering Selection Recommendations

The 2007562-6 manufactured by TE Connectivity AMP Connectors is the primary active substitute for the obsolete U86-D2627-321. This component maintains electrical and mechanical equivalence across all critical parameters. The 2007562-6 offers the additional advantage of Active product status, ensuring availability for ongoing production and future design iterations.

The 2007562-6 demonstrates enhanced compliance certification through ROHS3 designation and includes EMI shielding as an additional feature beyond the original specification. These enhancements provide electromagnetic interference mitigation in high-speed serial applications without compromising pin-for-pin compatibility.
