TTC-121 Equivalent & Substitute Parts Reference

Part Overview

The TTC-121 is a 600 Ohm audio transformer manufactured by Tamura, designed for telecommunications and voice coupling applications. It features a 1:0.5 turns ratio with split secondary impedance (300/300 Ohms) and operates across the 300Hz to 3.5kHz frequency range typical of voice-grade audio systems. The part is classified as obsolete, making equivalent substitutes necessary for ongoing system maintenance and new designs requiring compatible transformer specifications.

Substiute Parts

TTC-121

TamuraIn Stock: 770TTC-121 Datasheet

Current PartRFQ

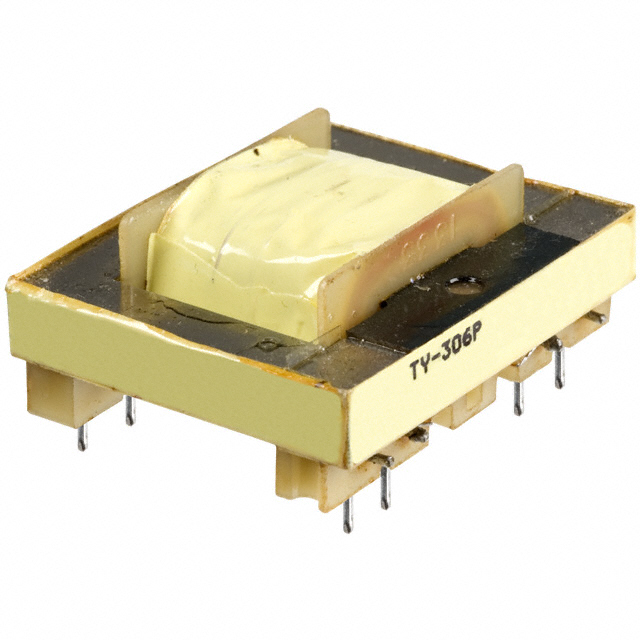

TY-306P

Triad MagneticsIn Stock: 907TY-306P Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the TTC-121 is based on the following critical parameters that must align for functional compatibility:

Primary Substitution Criteria:

• Impedance Matching: Primary impedance must support 600 Ohm input; secondary impedance must accommodate 600 Ohm or split 300/300 Ohm configurations
• Frequency Response: Operating range must cover the 300Hz to 3.5kHz voice-band spectrum
• Mounting and Termination: Through Hole mounting with PC Pin termination required for PCB integration
• Isolation Voltage: Minimum 1500V isolation rating for safety compliance
• Turns Ratio Compatibility: Voltage transformation ratio must be compatible with system design requirements

The TY-306P from Triad Magnetics qualifies as a substitute based on these parameters: it maintains 600 Ohm primary impedance with split primary option (150/150), provides 600 Ohm secondary impedance, operates within the 300Hz to 3.5kHz frequency band, uses Through Hole mounting with PC Pin termination, and exceeds isolation voltage requirements at 1500VAC.

Parameter Comparison

Engineering Selection Recommendations

TY-306P Substitution Basis:

The TY-306P is an active product from Triad Magnetics and serves as a functional substitute for the obsolete TTC-121. Both transformers share identical frequency range specifications (300Hz ~ 3.5kHz) and mounting configurations (Through Hole, PC Pin termination). Physical dimensions are nearly identical, with maximum height difference of 0.023" (0.57mm), ensuring PCB layout compatibility.

The TY-306P demonstrates superior frequency response performance (±0.5dB versus ±0.7dB) and maintains equivalent isolation voltage ratings. The substitute part is ROHS3 compliant and REACH unaffected, meeting modern regulatory requirements that may not apply to the obsolete TTC-121.

Design Consideration: The TY-306P features a 1:1 turns ratio compared to the TTC-121's 1:0.5 ratio. System designs must account for this voltage transformation difference. The TY-306P also provides split primary impedance options (150/150 Ohms) in addition to the standard 600 Ohm configuration, offering design flexibility not present in the original part.

Frequently Asked Questions (FAQ)

Q: Can the TY-306P directly replace the TTC-121 without circuit modifications?

A: Physical and electrical compatibility exists for PCB mounting and isolation requirements. However, the different turns ratio (1:1 versus 1:0.5) requires circuit analysis to confirm voltage levels remain within system specifications. Impedance matching at both primary and secondary ports must be verified for the specific application.

Q: What are the key impedance differences between these transformers?

A: The TTC-121 provides 600 Ohm primary with split 300/300 Ohm secondary. The TY-306P offers 600 Ohm primary (with optional 150/150 Ohm split) and 600 Ohm secondary. Applications requiring the split 300/300 Ohm secondary configuration must evaluate whether the TY-306P's 600 Ohm secondary impedance meets system requirements.

Q: Are there packaging or inventory considerations?

A: Both parts use Through Hole mounting with PC Pin termination and are available in bulk packaging. The TTC-121 is obsolete with 746 pieces in stock; the TY-306P is an active product with 806 pieces available. For long-term supply chain planning, the active status of TY-306P provides greater availability assurance.

Q: How do the frequency response specifications compare?

A: Both transformers operate across 300Hz to 3.5kHz. The TY-306P exhibits tighter frequency response tolerance (±0.5dB) compared to the TTC-121 (±0.7dB), indicating superior flatness across the voice-band spectrum. The TTC-121 shows lower insertion loss (1.1dB versus 1.5dB) and higher return loss (18dB versus 10dB).

Q: What compliance certifications apply to each part?

A: The TY-306P is ROHS3 compliant and REACH unaffected, meeting current environmental regulations. The TTC-121 compliance status is not specified in available documentation. For applications requiring regulatory compliance documentation, the TY-306P provides explicit certification.

Q: Are there dimensional constraints for PCB layout?

A: Physical dimensions are nearly identical: TTC-121 measures 1.650" L x 1.370" W x 0.657" H; TY-306P measures 1.650" L x 1.375" W x 0.680" H. The maximum height difference of 0.023" is negligible for most PCB designs. Verify clearance for the slightly larger width (0.005" difference) in space-constrained layouts.
