TSW-106-08-L-S-LA Equivalent & Substitute Parts

Part Overview

The TSW-106-08-L-S-LA is an active rectangular connector header manufactured by Samtec Inc., designed for through-hole, right-angle board-to-board or cable applications. This 6-position connector operates across -55°C to 125°C and meets UL94 V-0 flammability standards with ROHS3 compliance. Substitute parts are identified when equivalent electrical and mechanical parameters align with the main part's specifications, enabling component interchangeability in circuit designs where connector performance requirements remain constant.

Substiute Parts

TSW-106-08-L-S-LA

Samtec Inc.In Stock: 1108TSW-106-08-L-S-LA Datasheet

Current PartRFQ

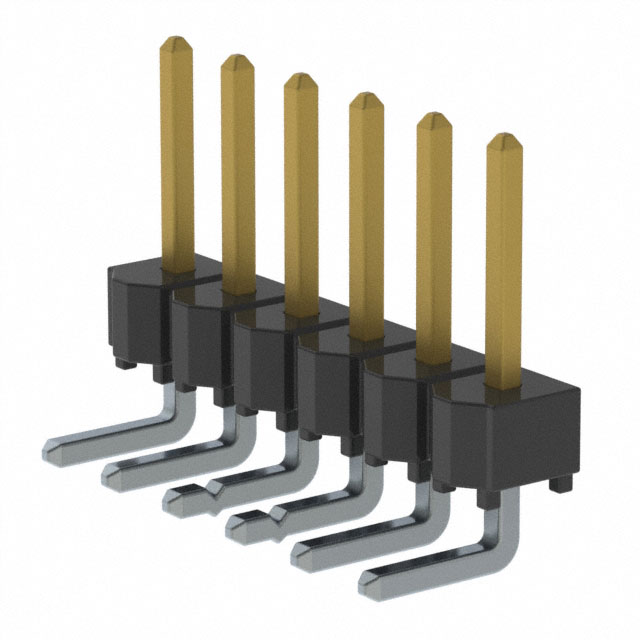

HTSW-106-08-L-S-LA

Samtec Inc.In Stock: 940HTSW-106-08-L-S-LA Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the TSW-106-08-L-S-LA is determined by strict alignment of the following parameters:

• Connector Type: Header
• Contact Type: Male Pin
• Number of Positions: 6
• Pitch - Mating: 0.100" (2.54mm)
• Mounting Type: Through Hole, Right Angle
• Contact Material: Phosphor Bronze
• Contact Finish - Mating: Gold
• Operating Temperature Range: -55°C ~ 125°C
• Material Flammability Rating: UL94 V-0
• RoHS Status: ROHS3 Compliant

The HTSW-106-08-L-S-LA meets all critical substitution criteria. Both parts share identical connector architecture, contact specifications, and environmental ratings. Variations in insulation material (PBT versus LCP) and insulation height (0.119" versus 0.122") remain within acceptable mechanical tolerances for board-to-board and cable applications without affecting electrical performance or mating compatibility.

Parameter Comparison

Engineering Selection Recommendations

Both TSW-106-08-L-S-LA and HTSW-106-08-L-S-LA are active products from Samtec Inc. with ROHS3 compliance and UL94 V-0 flammability certification. Selection between these parts depends on application-specific requirements:

The TSW-106-08-L-S-LA features PBT insulation material with 1 Moisture Sensitivity Level (MSL Unlimited), suitable for applications with minimal moisture exposure constraints.

The HTSW-106-08-L-S-LA features LCP insulation material with Not Applicable MSL rating, offering enhanced dimensional stability and chemical resistance in demanding environmental conditions.

Both connectors maintain identical electrical performance, contact geometry, and thermal operating range. The 0.003" (0.08mm) difference in insulation height falls within standard PCB design tolerances and does not affect mating compatibility or circuit functionality.

Frequently Asked Questions (FAQ)

Q: Can HTSW-106-08-L-S-LA directly replace TSW-106-08-L-S-LA in existing designs?

A: Yes. Both connectors share identical pitch (0.100" / 2.54mm), position count (6), contact material (Phosphor Bronze), contact finish (Gold), mounting type (Through Hole, Right Angle), and operating temperature range (-55°C ~ 125°C). The insulation height difference of 0.003" remains within standard PCB design tolerances.

Q: What is the difference between PBT and LCP insulation materials?

A: PBT (Polybutylene Terephthalate) offers standard electrical insulation with MSL Unlimited rating. LCP (Liquid Crystal Polymer) provides enhanced dimensional stability, superior chemical resistance, and improved high-frequency performance. Material selection depends on environmental exposure and application requirements.

Q: Are both parts RoHS compliant?

A: Yes. Both TSW-106-08-L-S-LA and HTSW-106-08-L-S-LA are ROHS3 compliant and meet UL94 V-0 flammability standards.

Q: What is the significance of the insulation height difference?

A: The TSW-106-08-L-S-LA has 0.119" (3.02mm) insulation height while HTSW-106-08-L-S-LA has 0.122" (3.10mm). This 0.003" difference accommodates standard PCB routing and component placement without affecting connector mating or electrical performance.

Q: Do both connectors support the same contact length specifications?

A: Yes. Both parts feature identical contact length specifications: 0.230" (5.84mm) mating length and 0.090" (2.29mm) post length, ensuring consistent solder joint formation and mechanical retention.
