TSW-106-07-T-T-LL Equivalent & Substitute Parts

Part Overview

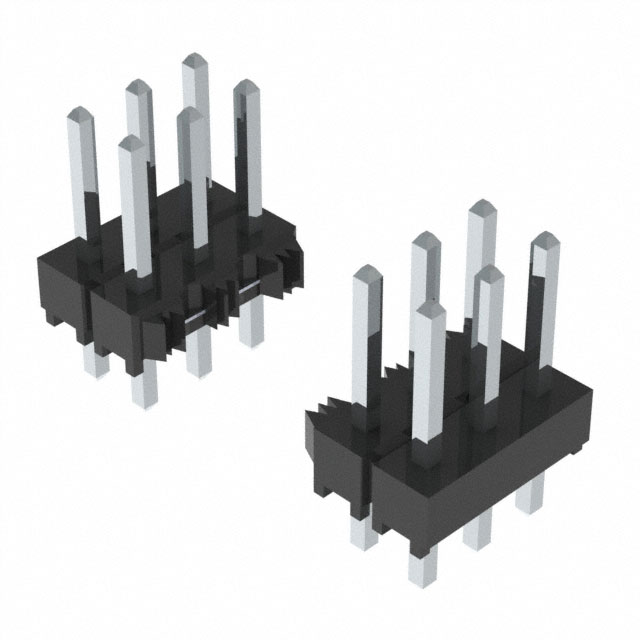

The TSW-106-07-T-T-LL is an 18-position rectangular connector header manufactured by Samtec Inc., designed for through-hole board-to-board or cable applications. This unshrouded header features a 0.100" (2.54mm) pitch with kinked pin solder termination and push-pull fastening. The part maintains Active product status and is ROHS3 compliant, making it suitable for standard industrial and commercial electronic assemblies requiring reliable interconnection across a 3-row configuration.

Identifying equivalent and substitute parts is necessary when managing component availability, optimizing inventory costs, or addressing supply chain constraints while maintaining electrical and mechanical compatibility with the original design specification.

Key Parameters

Parameter	Value
Connector Type	Header
Contact Type	Male Pin
Number of Positions	18
Number of Rows	3
Pitch - Mating	0.100" (2.54mm)
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Kinked Pin, Solder
Contact Length - Mating	0.230" (5.84mm)
Contact Length - Post	0.100" (2.54mm)
Overall Contact Length	0.430" (10.92mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Operating Temperature	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant
Product Status	Active

Substitute Part Grouping Explanation

Substitution eligibility for the TSW-106-07-T-T-LL is determined by strict alignment of the following critical parameters:

Connector Type & Contact Configuration: Header with male pin contacts
Position & Row Configuration: 18 positions arranged in 3 rows
Pitch Specifications: 0.100" (2.54mm) mating pitch and row spacing
Mounting & Termination: Through-hole mounting with kinked pin solder termination
Contact Geometry: Square contact shape with specified mating and post lengths
Material & Finish: Phosphor bronze contacts with tin finish on both mating and post surfaces
Environmental Compliance: UL94 V-0 flammability rating and ROHS3 compliance
Operating Range: -55°C to 105°C temperature specification

The HTSW-106-07-TM-T-LL qualifies as a substitute part because it maintains identical specifications across all critical electrical and mechanical parameters. Variations in insulation material (Liquid Crystal Polymer vs. Polybutylene Terephthalate) and insulation color do not affect functional compatibility or performance within the specified operating envelope.

Parameter Comparison

Parameter	TSW-106-07-T-T-LL	HTSW-106-07-TM-T-LL	Compatibility
Connector Type	Header	Header	Match
Contact Type	Male Pin	Male Pin	Match
Number of Positions	18	18	Match
Number of Rows	3	3	Match
Pitch - Mating	0.100" (2.54mm)	0.100" (2.54mm)	Match
Row Spacing - Mating	0.100" (2.54mm)	0.100" (2.54mm)	Match
Mounting Type	Through Hole	Through Hole	Match
Termination	Kinked Pin, Solder	Kinked Pin, Solder	Match
Contact Length - Mating	0.230" (5.84mm)	0.230" (5.84mm)	Match
Contact Length - Post	0.100" (2.54mm)	0.100" (2.54mm)	Match
Overall Contact Length	0.430" (10.92mm)	0.430" (10.92mm)	Match
Insulation Height	0.100" (2.54mm)	0.100" (2.54mm)	Match
Contact Shape	Square	Square	Match
Contact Finish - Mating	Tin	Tin	Match
Contact Finish - Post	Tin	Tin	Match
Contact Material	Phosphor Bronze	Phosphor Bronze	Match
Operating Temperature	-55°C ~ 105°C	-55°C ~ 105°C	Match
Material Flammability Rating	UL94 V-0	UL94 V-0	Match
RoHS Status	ROHS3 Compliant	ROHS3 Compliant	Match
Product Status	Active	Active	Match
Insulation Material	Polybutylene Terephthalate (PBT)	Liquid Crystal Polymer (LCP)	Functionally Equivalent
Insulation Color	Black	Natural	Functionally Equivalent

Engineering Selection Recommendations

Both the TSW-106-07-T-T-LL and HTSW-106-07-TM-T-LL maintain Active product status with full ROHS3 compliance and UL94 V-0 flammability certification. Selection between these parts should be based on:

Inventory Availability: The HTSW-106-07-TM-T-LL currently maintains higher stock levels (925 pcs vs. 781 pcs), providing supply chain flexibility.

Insulation Material Considerations: The HTSW-106-07-TM-T-LL uses Liquid Crystal Polymer insulation, which offers superior dimensional stability and chemical resistance compared to the PBT insulation in the TSW-106-07-T-T-LL. Both materials meet the specified UL94 V-0 flammability requirement and operate across the identical -55°C to 105°C temperature range.

Visual Identification: The natural color insulation of the HTSW-106-07-TM-T-LL differs from the black insulation of the TSW-106-07-T-T-LL, which may affect assembly traceability or visual inspection protocols in manufacturing environments.

Both parts are electrically and mechanically interchangeable for applications requiring 18-position, 3-row, 0.100" pitch through-hole header connectors with tin-plated phosphor bronze contacts.

Frequently Asked Questions (FAQ)

Q: Are the TSW-106-07-T-T-LL and HTSW-106-07-TM-T-LL mechanically interchangeable?

A: Yes. Both parts share identical pitch (0.100"), row spacing (0.100"), contact geometry (square shape), and overall dimensions. They mount identically in through-hole PCB applications and accept the same mating connectors.

Q: What is the functional difference between PBT and LCP insulation materials?

A: Both materials meet UL94 V-0 flammability requirements and operate across -55°C to 105°C. Liquid Crystal Polymer (LCP) provides enhanced dimensional stability and chemical resistance, while Polybutylene Terephthalate (PBT) is a conventional engineering plastic. The choice depends on application-specific environmental exposure and dimensional tolerance requirements.

Q: Can I substitute the HTSW-106-07-TM-T-LL for the TSW-106-07-T-T-LL in existing designs?

A: Yes, provided your design does not specify insulation material or color as a critical requirement. All electrical and mechanical parameters are identical, including contact configuration, pitch, termination method, and operating temperature range.

Q: Do both parts require the same PCB footprint?

A: Yes. The identical pitch (0.100"), row spacing (0.100"), contact length specifications, and through-hole termination ensure both parts use the same PCB footprint and mounting pattern.

Q: Are both parts RoHS compliant?

A: Yes. Both the TSW-106-07-T-T-LL and HTSW-106-07-TM-T-LL are ROHS3 compliant with tin-plated contacts and phosphor bronze base material.
