TSW-106-07-SS-S Equivalent & Substitute Parts

Part Overview

The TSW-106-07-SS-S is a rectangular connector header manufactured by Samtec Inc., designed for through-hole mounting applications. This 6-position, single-row connector operates at 0.100" (2.54mm) pitch and is classified as an active product. Substitute parts are identified when equivalent electrical and mechanical parameters align with the main part specifications, enabling direct replacement in board-to-board or cable connection applications.

Key Parameters

Parameter	Value
Manufacturer Part Number	TSW-106-07-SS-S
Manufacturer	Samtec Inc.
Category	Rectangular Connectors
Series	TSW
Connector Type	Header
Contact Type	Male Pin
Number of Positions	6
Number of Rows	1
Pitch - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Material	Phosphor Bronze
Insulation Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Product Status	Active

Substitute Part Grouping Explanation

Substitute parts for the TSW-106-07-SS-S are qualified based on the following critical parameters that determine functional equivalence:

Connector Type: Header
Contact Type: Male Pin
Number of Positions: 6
Number of Rows: 1
Pitch - Mating: 0.100" (2.54mm)
Mounting Type: Through Hole
Termination: Solder
Contact Shape: Square
Contact Finish - Mating: Gold
Contact Material: Phosphor Bronze
Operating Temperature: -55°C ~ 125°C
Material Flammability Rating: UL94 V-0
RoHS Status: ROHS3 Compliant

All identified substitute parts maintain these core electrical and mechanical specifications. Variations in insulation material (PBT versus Liquid Crystal Polymer) and series designation (TSW versus HTSW) do not affect functional compatibility when these primary parameters remain constant.

Parameter Comparison

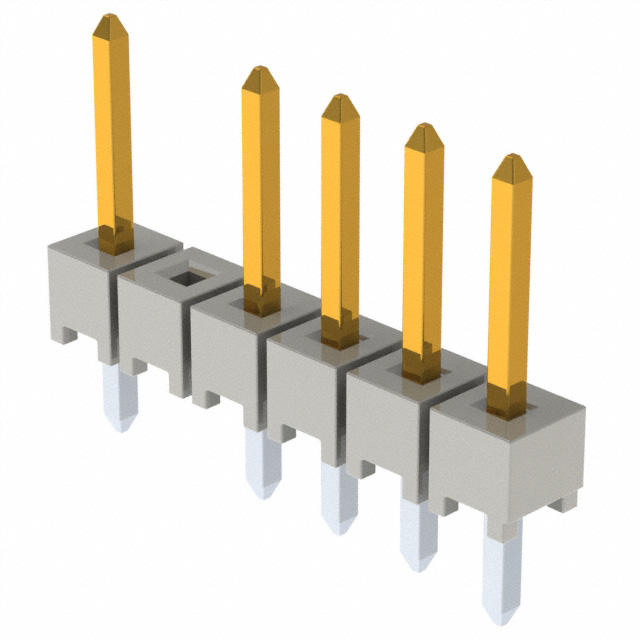

Parameter	TSW-106-07-SS-S	TSW-106-07-S-S	HTSW-106-07-S-S-005	HTSW-106-07-SM-S
Manufacturer	Samtec Inc.	Samtec Inc.	Samtec Inc.	Samtec Inc.
Series	TSW	TSW	HTSW	HTSW
Connector Type	Header	Header	Header	Header
Contact Type	Male Pin	Male Pin	Male Pin	Male Pin
Number of Positions	6	6	6	6
Number of Rows	1	1	1	1
Pitch - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole
Termination	Solder	Solder	Solder	Solder
Contact Shape	Square	Square	Square	Square
Contact Finish - Mating	Gold	Gold	Gold	Gold
Contact Material	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze
Insulation Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
RoHS Status	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant
Product Status	Active	Active	Active	Active

Engineering Selection Recommendations

All identified substitute parts maintain active product status and ROHS3 compliance, ensuring continued availability and regulatory alignment. The TSW-106-07-SS-S and TSW-106-07-S-S are both TSW series components with PBT insulation material. The HTSW-106-07-S-S-005 and HTSW-106-07-SM-S are HTSW series alternatives featuring Liquid Crystal Polymer insulation, which provides enhanced thermal and mechanical properties while maintaining equivalent electrical performance and operating temperature specifications.

Selection between these parts depends on application-specific requirements for insulation material performance and series compatibility with existing board designs. All parts satisfy the core functional requirements for 6-position, 2.54mm pitch header applications with through-hole solder termination.

Frequently Asked Questions (FAQ)

Q: Can TSW-106-07-SS-S be directly replaced with TSW-106-07-S-S?

A: Yes. Both parts are TSW series headers with identical electrical and mechanical specifications, including 6 positions, 2.54mm pitch, through-hole mounting, and PBT insulation material. The parts are functionally equivalent.

Q: What is the difference between TSW and HTSW series substitutes?

A: The primary difference is the insulation material. TSW series uses Polybutylene Terephthalate (PBT), while HTSW series uses Liquid Crystal Polymer (LCP). Both materials meet UL94 V-0 flammability requirements and operate across the same temperature range (-55°C ~ 125°C). The series designation may affect compatibility with existing connector housings or mating components.

Q: Are HTSW-106-07-S-S-005 and HTSW-106-07-SM-S interchangeable?

A: Both HTSW parts maintain identical electrical and mechanical parameters, including 6 positions, 2.54mm pitch, through-hole solder termination, and LCP insulation. They are functionally equivalent for standard header applications.

Q: Does insulation material affect electrical performance?

A: No. Both PBT and LCP insulation materials in these parts meet the same flammability rating (UL94 V-0) and operating temperature specifications (-55°C ~ 125°C). Material selection is based on mechanical and thermal performance requirements rather than electrical characteristics.

Q: Are all substitute parts ROHS3 compliant?

A: Yes. All listed parts, including the main part TSW-106-07-SS-S and all substitutes, are ROHS3 compliant, ensuring regulatory compliance for applications subject to RoHS requirements.

Q: What is the Moisture Sensitivity Level (MSL) for substitute parts?

A: TSW-106-07-SS-S has MSL 1 (Unlimited). HTSW series parts have MSL Not Applicable, indicating no moisture sensitivity restrictions for storage or handling.
