TSW-103-08-L-D-RA-005 Equivalent & Substitute Parts

Part Overview

The TSW-103-08-L-D-RA-005 is a rectangular connector header manufactured by Samtec Inc., designed for through-hole, right-angle board-to-board or cable applications. This connector features 6 positions across 2 rows with 0.100" (2.54mm) pitch spacing and unshrouded design. The part is currently active in production with 1122 pieces in stock. Equivalent and substitute parts within the TSW series share identical electrical and mechanical specifications, providing interchangeable options for component procurement and inventory management.

Substiute Parts

TSW-103-08-L-D-RA-005

Samtec Inc.In Stock: 1136TSW-103-08-L-D-RA-005 Datasheet

Current PartRFQ

TSW-103-08-L-D-RA-003

Samtec Inc.In Stock: 1052TSW-103-08-L-D-RA-003 Datasheet

SimilarRFQ

TSW-103-08-L-D-RA-004

Samtec Inc.In Stock: 933TSW-103-08-L-D-RA-004 Datasheet

SimilarRFQ

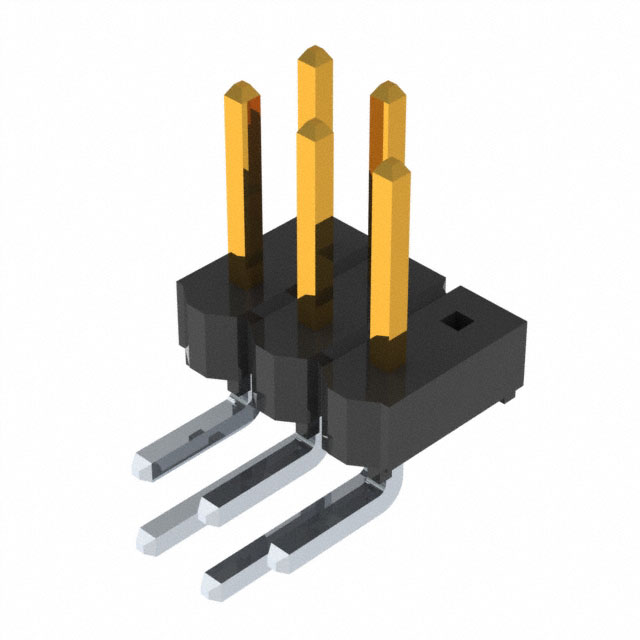

TSW-103-08-L-D-RA-006

Samtec Inc.In Stock: 1200TSW-103-08-L-D-RA-006 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the TSW-103-08-L-D-RA-005 are identified based on strict equivalence across all critical electrical and mechanical parameters. The following parameters determine substitution eligibility:

• Connector Type: Header
• Contact Type: Male Pin
• Number of Positions: 6
• Number of Rows: 2
• Pitch - Mating: 0.100" (2.54mm)
• Row Spacing - Mating: 0.100" (2.54mm)
• Number of Positions Loaded: 5
• Mounting Type: Through Hole, Right Angle
• Termination: Solder
• Fastening Type: Push-Pull
• Contact Length - Mating: 0.230" (5.84mm)
• Contact Length - Post: 0.090" (2.29mm)
• Insulation Height: 0.219" (5.56mm)
• Contact Shape: Square
• Contact Finish - Mating: Gold
• Contact Finish - Post: Tin
• Contact Material: Phosphor Bronze
• Insulation Material: Polybutylene Terephthalate (PBT)
• Operating Temperature Range: -55°C ~ 125°C
• Material Flammability Rating: UL94 V-0
• RoHS Status: ROHS3 Compliant
• Moisture Sensitivity Level (MSL): 1 (Unlimited)

All substitute parts listed below maintain identical specifications across these parameters and are therefore electrically and mechanically interchangeable with the main part.

Parameter Comparison

Engineering Selection Recommendations

All substitute parts listed—TSW-103-08-L-D-RA-003, TSW-103-08-L-D-RA-004, and TSW-103-08-L-D-RA-006—are fully equivalent to the TSW-103-08-L-D-RA-005 and are suitable for direct substitution in applications requiring rectangular connector headers with the specified electrical and mechanical characteristics.

All parts maintain Active product status, ensuring ongoing manufacturer support and availability. All parts are ROHS3 compliant and carry UL94 V-0 material flammability certification, meeting regulatory and safety requirements for industrial and commercial applications. Moisture Sensitivity Level 1 (Unlimited) indicates these components require no special moisture control during storage or handling.

Selection among these interchangeable parts may be based on inventory availability and procurement lead times.

Frequently Asked Questions (FAQ)

Q: Are these substitute parts electrically interchangeable with the TSW-103-08-L-D-RA-005?

A: Yes. All substitute parts share identical electrical specifications including contact type, pitch, number of positions, contact material, contact finish, and operating temperature range. They are electrically interchangeable.

Q: Are these substitute parts mechanically interchangeable with the TSW-103-08-L-D-RA-005?

A: Yes. All substitute parts share identical mechanical specifications including mounting type, insulation height, contact length, row spacing, and overall form factor. They are mechanically interchangeable.

Q: Do all parts meet the same compliance and certification standards?

A: Yes. All parts are ROHS3 compliant, carry UL94 V-0 material flammability certification, and have Moisture Sensitivity Level 1 (Unlimited). All parts are Active in product status.

Q: What is the difference between these part numbers?

A: The part numbers differ only in their suffix designation (003, 004, 005, 006). All other specifications are identical. The suffix may indicate different manufacturing batches or inventory tracking codes but does not affect electrical or mechanical performance.

Q: Can I mix these parts in the same application?

A: Yes. Since all parts are electrically and mechanically equivalent with identical specifications, they can be used interchangeably within the same application or assembly.

Q: What is the operating temperature range for these connectors?

A: All parts operate across the temperature range of -55°C to 125°C, suitable for industrial and commercial applications.

Q: Are these parts RoHS compliant?

A: Yes. All parts are ROHS3 compliant, meeting environmental and regulatory requirements for lead-free and restricted substance compliance.
