TSM-104-01-S-SH Equivalent & Substitute Parts

Part Overview

The TSM-104-01-S-SH is a surface mount, right-angle rectangular connector header manufactured by Samtec Inc. This 4-position connector operates across the industrial temperature range of -55°C to 125°C and features gold-plated mating contacts with phosphor bronze material. The part maintains Active product status with full inventory availability. Identifying equivalent and substitute parts ensures design flexibility, supply chain continuity, and component availability across manufacturing cycles.

Substiute Parts

TSM-104-01-S-SH

Samtec Inc.In Stock: 1017TSM-104-01-S-SH Datasheet

Current PartRFQ

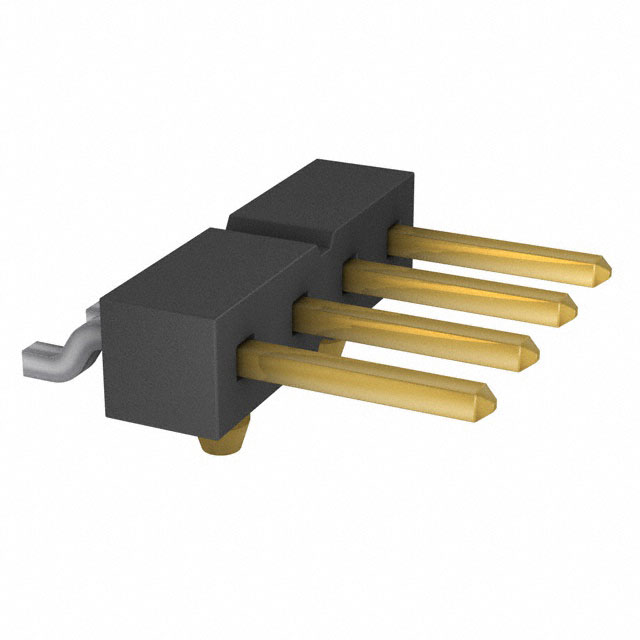

TSM-104-01-S-SH-A

Samtec Inc.In Stock: 914TSM-104-01-S-SH-A Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the TSM-104-01-S-SH is determined by strict equivalence across the following critical parameters:

• Connector Type: Header
• Contact Type: Male Pin
• Number of Positions: 4
• Number of Rows: 1
• Pitch - Mating: 0.100" (2.54mm)
• Mounting Type: Surface Mount, Right Angle
• Termination: Solder
• Contact Length - Mating: 0.230" (5.84mm)
• Insulation Height: 0.120" (3.05mm)
• Contact Finish - Mating: Gold
• Contact Material: Phosphor Bronze
• Insulation Material: Liquid Crystal Polymer (LCP)
• Operating Temperature: -55°C ~ 125°C
• Material Flammability Rating: UL94 V-0
• RoHS Status: ROHS3 Compliant

The TSM-104-01-S-SH-A qualifies as a direct substitute based on matching all critical electrical and mechanical parameters. The addition of a board guide feature in the substitute part does not alter core mating or electrical characteristics and represents an enhancement to mechanical stability.

Parameter Comparison

Engineering Selection Recommendations

Both TSM-104-01-S-SH and TSM-104-01-S-SH-A maintain Active product status with full ROHS3 compliance and UL94 V-0 flammability certification. Selection between these parts depends on mechanical design requirements. The TSM-104-01-S-SH-A includes a board guide feature that enhances mechanical alignment during assembly and mating operations. For applications requiring additional mechanical stability or precision alignment, the TSM-104-01-S-SH-A is the appropriate selection. For applications where board guide functionality is not required, either part satisfies the electrical and thermal specifications. Both parts carry MSL 1 (Unlimited) moisture sensitivity classification, indicating no special storage or handling requirements.

Frequently Asked Questions (FAQ)

Q: Are TSM-104-01-S-SH and TSM-104-01-S-SH-A electrically interchangeable?

A: Yes. Both parts share identical electrical specifications including contact material, finish, mating pitch, and operating temperature range. The board guide feature in the TSM-104-01-S-SH-A is a mechanical enhancement that does not affect electrical performance.

Q: What is the significance of the board guide feature in TSM-104-01-S-SH-A?

A: The board guide provides mechanical alignment assistance during connector mating and improves positional stability on the PCB. This feature does not alter electrical characteristics or mating interface specifications.

Q: Can I use TSM-104-01-S-SH-A as a direct replacement for TSM-104-01-S-SH in existing designs?

A: Yes, provided the PCB layout accommodates the board guide geometry. The mating interface, pitch, and electrical specifications are identical. Physical board space must be verified to ensure the guide feature does not interfere with adjacent components.

Q: What is the moisture sensitivity level for both parts?

A: Both parts carry MSL 1 (Unlimited) classification, indicating no moisture-related storage or handling restrictions. Standard component storage practices are sufficient.

Q: Are both parts RoHS compliant?

A: Yes. Both TSM-104-01-S-SH and TSM-104-01-S-SH-A are ROHS3 compliant and carry UL94 V-0 flammability certification.

Q: What is the operating temperature range for these connectors?

A: Both parts operate across -55°C to 125°C, suitable for industrial and extended temperature applications.
