TS-701-HT-25 Equivalent & Substitute Parts

Part Overview

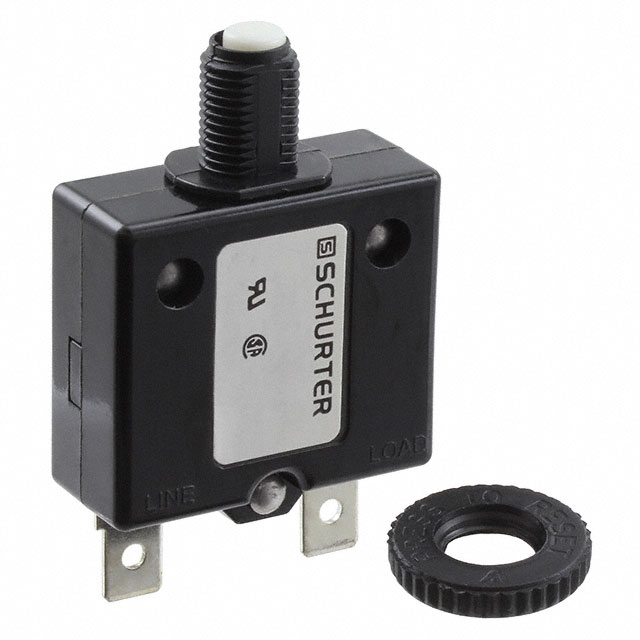

The TS-701-HT-25 is a thermal circuit breaker manufactured by SCHURTER Inc., rated for 25A at 250V AC and 50V DC with push-to-reset panel mount actuation. This part is classified as obsolete, making equivalent and substitute parts necessary for ongoing system maintenance and new designs. The breaker is single-pole, thermally actuated, and approved under CSA C22.2 and UL1077 standards. ROHS3 compliance and REACH unaffected status ensure environmental regulatory alignment.

Substiute Parts

TS-701-HT-25

SCHURTER Inc.In Stock: 1176TS-701-HT-25 Datasheet

Current PartRFQ

CLB-253-11ANN-B-A

Carling TechnologiesIn Stock: 1051CLB-253-11ANN-B-A Datasheet

SimilarRFQ

CLB-253-11BNN-B-F

Carling TechnologiesIn Stock: 1115CLB-253-11BNN-B-F Datasheet

SimilarRFQ

CLB-303-11BNN-B-F

Carling TechnologiesIn Stock: 995CLB-303-11BNN-B-F Datasheet

SimilarRFQ

127-P10-H-KF-050022-25A

E-T-AIn Stock: 1094127-P10-H-KF-050022-25A Datasheet

Parametric EquivalentRFQ

127-P10-H-KF-25A

E-T-AIn Stock: 864127-P10-H-KF-25A Datasheet

Parametric EquivalentRFQ

127-P10-H-KF-D91-25A

E-T-AIn Stock: 993127-P10-H-KF-D91-25A Datasheet

Parametric EquivalentRFQ

157-K10-KF-25A

E-T-AIn Stock: 867157-K10-KF-25A Datasheet

Parametric EquivalentRFQ

157-P10-KF-25A

E-T-AIn Stock: 1046157-P10-KF-25A Datasheet

Parametric EquivalentRFQ

2-5000-K10-25A

E-T-AIn Stock: 8382-5000-K10-25A Datasheet

Parametric EquivalentRFQ

2-5000-K10-H-25A

E-T-AIn Stock: 12352-5000-K10-H-25A Datasheet

Parametric EquivalentRFQ

2-5000-P10-H-25A

E-T-AIn Stock: 8802-5000-P10-H-25A Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution for the TS-701-HT-25 is determined by strict equivalence across the following critical parameters:

• Current Rating: 25A (exact match required)
• Voltage Rating - AC: 250V (exact match required)
• Voltage Rating - DC: 50V or higher (50V minimum acceptable)
• Breaker Type: Thermal (exact match required)
• Mounting Type: Panel Mount (exact match required)
• Actuator Type: Push to Reset (exact match required)
• Number of Poles: 1 (exact match required)

Substitute parts are categorized into two groups:

Parametric Equivalents (Full Specification Match): Parts meeting all electrical and mechanical parameters with identical 50V DC rating. These are direct replacements with no derating considerations.

Similar Substitutes (Reduced DC Voltage Rating): Parts meeting all parameters except DC voltage rating, which is reduced to 32V. These parts are suitable only for applications where the DC voltage requirement does not exceed 32V.

Parameter Comparison

Engineering Selection Recommendations

Parametric Equivalent Selection (Preferred): E-T-A series parts 127-P10-H-KF-050022-25A, 127-P10-H-KF-25A, 127-P10-H-KF-D91-25A, 157-K10-KF-25A, 157-P10-KF-25A, 2-5000-K10-25A, and 2-5000-K10-H-25A provide full specification equivalence to the TS-701-HT-25. All are active products with expanded approval certifications including CSA C22.2 No 235, GB 17701, and IEC 60934, providing broader international compliance. ROHS3 compliance and REACH unaffected status are maintained across all E-T-A equivalents.

Similar Substitute Selection (Conditional): Carling Technologies CLB-253-11ANN-B-A and CLB-253-11BNN-B-F are suitable only for applications where the DC voltage requirement does not exceed 32V. The CLB-303-11BNN-B-F is not suitable due to current rating mismatch (30A vs. 25A required). Carling parts provide active product status and expanded certifications including CE, cUL, and TUV, but the reduced DC voltage rating requires application-level verification before selection.
