TMM-106-01-TM-S Equivalent & Substitute Parts

Part Overview

The TMM-106-01-TM-S is a 2MM terminal strip connector header manufactured by Samtec Inc. This through-hole rectangular connector features 6 positions with 0.079" (2.00mm) pitch and is designed for board-to-board or cable applications. The part is currently active in production with 1006 units in stock. Equivalent and substitute parts are identified to support design flexibility, inventory management, and supply chain continuity.

Substiute Parts

TMM-106-01-TM-S

Samtec Inc.In Stock: 1098TMM-106-01-TM-S Datasheet

Current PartRFQ

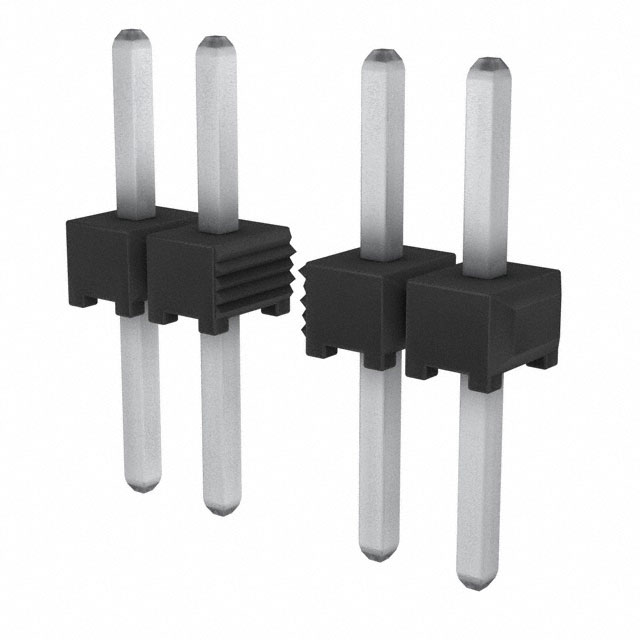

TMM-106-01-T-S

Samtec Inc.In Stock: 919TMM-106-01-T-S Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the TMM-106-01-TM-S is determined by the following critical parameters:

• Manufacturer: Samtec Inc.
• Series: TMM
• Number of Positions: 6
• Pitch - Mating: 0.079" (2.00mm)
• Contact Type: Male Pin
• Mounting Type: Through Hole
• Termination: Solder
• Current Rating: 3.2A per Contact
• Operating Temperature: -55°C ~ 105°C
• RoHS Status: ROHS3 Compliant

The substitute part TMM-106-01-T-S meets all critical electrical and mechanical parameters, ensuring functional equivalence within the TMM series connector family.

Parameter Comparison

Engineering Selection Recommendations

Both the TMM-106-01-TM-S and TMM-106-01-T-S are active production parts from Samtec Inc. with identical electrical and mechanical specifications. Both parts are ROHS3 compliant and carry MSL 1 (Unlimited) moisture sensitivity ratings, indicating equivalent reliability and environmental compliance. Selection between these parts may be based on inventory availability and supply chain requirements. The TMM-106-01-TM-S currently has higher stock levels (1006 units) compared to the TMM-106-01-T-S (892 units).

Frequently Asked Questions (FAQ)

Q: Are TMM-106-01-TM-S and TMM-106-01-T-S electrically interchangeable?

A: Yes. Both parts share identical electrical specifications including 3.2A per contact current rating, operating temperature range of -55°C to 105°C, and contact material composition (Phosphor Bronze with Tin finish).

Q: Do these parts have the same mechanical dimensions?

A: Yes. Both connectors have identical mechanical parameters including 6 positions, 0.079" (2.00mm) pitch, through-hole mounting, and overall contact length of 0.323" (8.20mm).

Q: Are there any compliance differences between these parts?

A: No. Both parts are ROHS3 compliant, carry EAR99 ECCN classification, and share the same HTSUS code (8536.69.4040). Both have MSL 1 (Unlimited) moisture sensitivity ratings.

Q: Can I use these parts interchangeably in my PCB design?

A: Yes. The identical pitch, contact configuration, and mounting type ensure direct PCB footprint compatibility.

Q: What is the difference between these two part numbers?

A: The parts are functionally equivalent members of the TMM series. The difference in part number designation reflects internal Samtec product line categorization but does not affect electrical or mechanical performance.
