TLW-103-05-H-S Equivalent & Substitute Parts

Part Overview

The TLW-103-05-H-S is a low-profile rectangular connector header manufactured by Samtec Inc. in the Flex Stack series. This through-hole mounted connector features 3 positions at 0.100" (2.54mm) pitch with male pin contacts and push-pull fastening. The part is currently active in production with 747 units in stock. Substitute parts are identified to provide alternative sourcing options when the primary part number is unavailable or when specific parameter variations are required for application compatibility.

Substiute Parts

TLW-103-05-H-S

Samtec Inc.In Stock: 782TLW-103-05-H-S Datasheet

Current PartRFQ

MTLW-103-05-G-S-105

Samtec Inc.In Stock: 935MTLW-103-05-G-S-105 Datasheet

SimilarRFQ

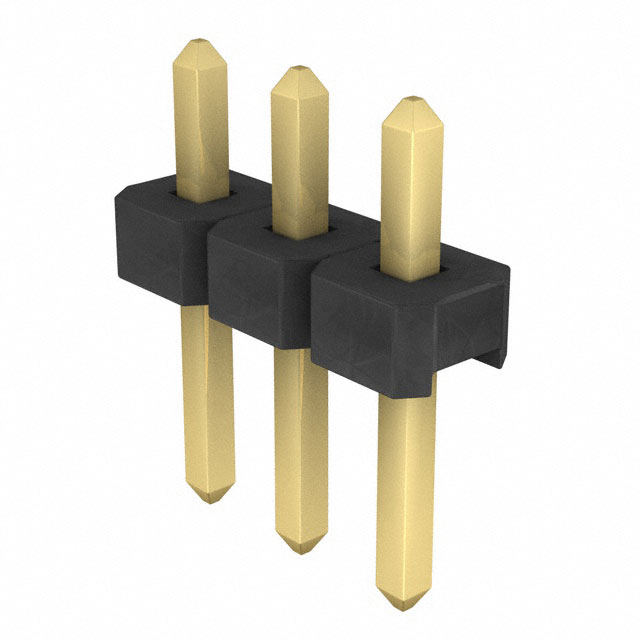

TLW-103-05-G-S

Samtec Inc.In Stock: 1007TLW-103-05-G-S Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the TLW-103-05-H-S is determined by the following critical parameters:

• Pitch - Mating: 0.100" (2.54mm)
• Number of Positions: 3
• Number of Rows: 1
• Connector Type: Header
• Contact Type: Male Pin
• Mounting Type: Through Hole
• Termination: Solder
• Contact Material: Phosphor Bronze
• Insulation Material: Liquid Crystal Polymer (LCP)
• Operating Temperature: -55°C ~ 125°C
• Current Rating: 5.2A per Contact
• RoHS Status: ROHS3 Compliant
• MSL Rating: 1 (Unlimited)

The identified substitute parts MTLW-103-05-G-S-105 and TLW-103-05-G-S maintain all critical electrical and mechanical parameters. Variations in contact finish specifications and flammability ratings are documented in the parameter comparison table below.

Parameter Comparison

Engineering Selection Recommendations

All three parts maintain active product status with ROHS3 compliance and MSL rating 1. The TLW-103-05-H-S and TLW-103-05-G-S share the same TLW series designation, with the primary difference being contact finish specifications on the post. The MTLW-103-05-G-S-105 belongs to the MTLW series and includes documented UL94 V-0 flammability certification. Selection between these parts should be based on specific application requirements regarding contact finish specifications and flammability ratings where applicable.

Frequently Asked Questions (FAQ)

Q: Can MTLW-103-05-G-S-105 be used as a direct substitute for TLW-103-05-H-S?

A: Yes. Both parts share identical electrical and mechanical specifications including 3-position configuration, 0.100" (2.54mm) pitch, male pin contacts, through-hole mounting, phosphor bronze contact material, and LCP insulation. The MTLW series variant includes specified contact finish thicknesses and UL94 V-0 flammability rating.

Q: What is the difference between TLW-103-05-G-S and TLW-103-05-H-S?

A: Both parts are in the same TLW series with identical core specifications. The documented difference is in post contact finish thickness, where TLW-103-05-G-S specifies Flash thickness while TLW-103-05-H-S does not specify this parameter.

Q: Are all three parts compatible with the same PCB footprint?

A: Yes. All three parts maintain identical pitch (0.100" / 2.54mm), number of positions (3), contact shape (square), and through-hole mounting specifications, ensuring PCB footprint compatibility.

Q: What is the significance of the contact finish specifications?

A: Contact finish thickness affects electrical performance and durability. MTLW-103-05-G-S-105 specifies 10.0µin (0.25µm) mating finish and 3.00µin (0.076µm) post finish. TLW-103-05-G-S specifies 10.0µin (0.25µm) mating finish with Flash post finish. These variations may impact contact resistance and wear characteristics in specific applications.

Q: Do all parts meet the same temperature and current requirements?

A: Yes. All three parts are rated for -55°C to 125°C operating temperature and 5.2A per contact current rating.

Q: What does ROHS3 compliance mean for these parts?

A: ROHS3 compliance indicates conformance to the Restriction of Hazardous Substances Directive, restricting specific hazardous materials in electrical and electronic equipment.
