TLP630(GB-TP1,F) Equivalent & Substitute Parts

Part Overview

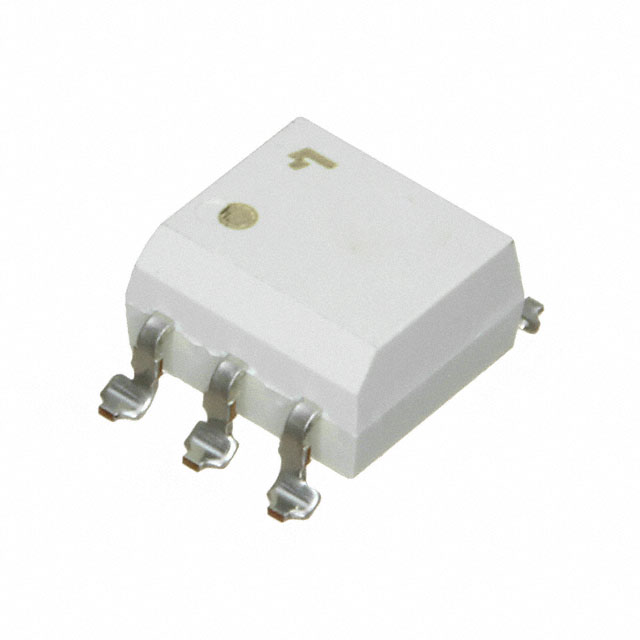

The TLP630(GB-TP1,F) is a photocoupler optoisolator manufactured by Toshiba Semiconductor and Storage, designed for high-voltage isolation applications. This component features a transistor output with base connection, providing 5000Vrms isolation in a 6-SMD surface mount package. The device is classified as obsolete, necessitating identification of active equivalent parts to maintain design continuity and ensure long-term component availability for new production and field replacements.

Substiute Parts

TLP630(GB-TP1,F)

Toshiba Semiconductor and StorageIn Stock: 1042TLP630(GB-TP1,F) Datasheet

Current PartRFQ

TLP620M(GB-TP1,E

Toshiba Semiconductor and StorageIn Stock: 1061TLP620M(GB-TP1,E Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the TLP630(GB-TP1,F) is determined by the following critical parameters:

Isolation Voltage: The substitute must maintain 5000Vrms isolation capability to preserve circuit safety and regulatory compliance.

Number of Channels: Single-channel configuration is required to match the original design.

Current Transfer Ratio: The substitute must support the 100% to 600% @ 5mA range to ensure consistent signal transfer characteristics.

Output Type and Switching Characteristics: The substitute must provide equivalent turn-on/turn-off times (3µs typical) and rise/fall times (2µs, 3µs typical) to maintain circuit timing performance.

Input Type: AC and DC input compatibility must be preserved.

Current and Voltage Ratings: Output current of 50mA and maximum output voltage specifications must be met or exceeded.

Operating Temperature Range: The substitute must support the -55°C to 100°C operating window or provide an extended range.

Mounting and Package: Surface mount configuration with compatible footprint dimensions is required for PCB integration.

The TLP620M(GB-TP1,E) qualifies as a substitute based on these parameters while offering active product status and enhanced specifications.

Parameter Comparison

Engineering Selection Recommendations

The TLP620M(GB-TP1,E) serves as the primary substitute for the obsolete TLP630(GB-TP1,F). Both components are manufactured by Toshiba Semiconductor and Storage and share identical isolation voltage, current transfer ratio specifications, and switching characteristics essential for optoisolator functionality.

The TLP620M(GB-TP1,E) offers the following advantages:

Active Product Status: The substitute is actively produced, ensuring long-term availability and supply chain continuity.

Enhanced Electrical Performance: The substitute provides a higher maximum output voltage rating (80V versus 55V) and lower saturation voltage (300mV versus 400mV), delivering improved performance margins in most applications.

Extended Operating Temperature Range: Support for -55°C to 125°C operation provides additional thermal margin compared to the original -55°C to 100°C range.

Regulatory Compliance: Both components share identical ECCN (EAR99) and HTSUS (8541.49.8000) classifications, maintaining export and import compliance.

Package Consideration: The substitute uses a 4-SMD package versus the original 6-SMD package. PCB layout modification is required to accommodate the different pin configuration, though the 0.300" (7.62mm) pitch remains consistent.

Output Configuration Difference: The TLP620M(GB-TP1,E) provides standard transistor output without base connection. Applications utilizing the base output of the original device require circuit redesign to accommodate the standard transistor configuration.
