TLP552(MAT-TA,F) Equivalent & Substitute Parts

Part Overview

The TLP552(MAT-TA,F) is an optoisolator manufactured by Toshiba Semiconductor and Storage, classified as a photocoupler with single-channel output isolation capability. This component is currently listed as obsolete, making identification of functionally equivalent alternatives essential for ongoing system support and new design implementations. The obsolete status necessitates evaluation of active substitute components that maintain compatibility with existing electrical and mechanical requirements.

Substiute Parts

TLP552(MAT-TA,F)

Toshiba Semiconductor and StorageIn Stock: 1051TLP552(MAT-TA,F) Datasheet

Current PartRFQ

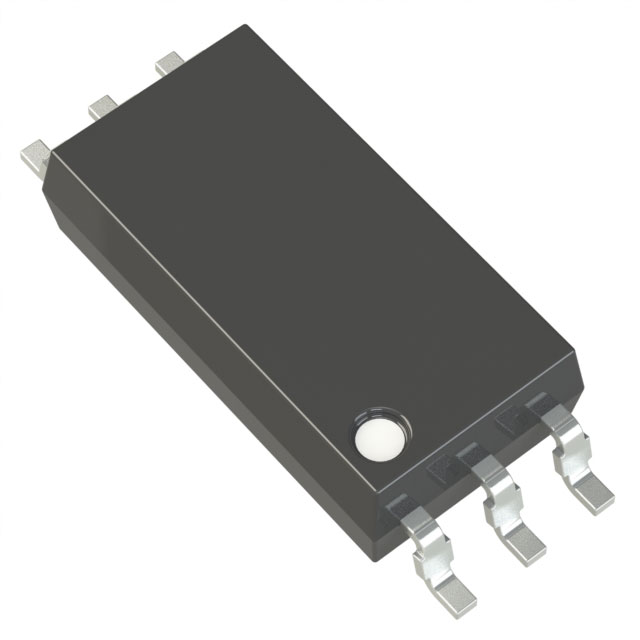

TLP2768A(E

Toshiba Semiconductor and StorageIn Stock: 1023TLP2768A(E Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The TLP2768A(E) qualifies as a functional substitute based on the following alignment criteria:

• Category Match: Both components are optoisolators within the same product classification
• Manufacturer Continuity: Both manufactured by Toshiba Semiconductor and Storage, ensuring design lineage and support consistency
• Regulatory Compliance: Both components share identical ECCN (EAR99) and HTSUS (8541.49.8000) classifications
• Moisture Sensitivity: Both rated at MSL 1 (Unlimited), indicating equivalent environmental handling requirements
• Active Status: TLP2768A(E) maintains active product status, ensuring ongoing availability and supply chain viability
• Single-Channel Configuration: Both components provide single-channel isolation architecture

Parameter Comparison

Engineering Selection Recommendations

The TLP2768A(E) is the designated substitute for the obsolete TLP552(MAT-TA,F) based on the following engineering criteria:

• Regulatory Alignment: Identical ECCN and HTSUS classifications ensure no change to export control or tariff documentation requirements
• Environmental Compliance: Both components maintain MSL 1 rating, requiring no modification to moisture handling or storage protocols
• Active Product Status: The TLP2768A(E) is actively manufactured and supported, eliminating supply chain discontinuity risks associated with the obsolete TLP552(MAT-TA,F)
• RoHS3 Compliance: The substitute component meets current environmental regulations, supporting long-term design sustainability
• REACH Compliance: REACH Unaffected status confirms no hazardous substance restrictions apply to the substitute component

Frequently Asked Questions (FAQ)

Q: Why is the TLP552(MAT-TA,F) no longer available? A: The TLP552(MAT-TA,F) has reached end-of-life status and is classified as obsolete. Toshiba Semiconductor and Storage has transitioned this product line to active alternatives such as the TLP2768A(E).

Q: What are the key differences between TLP552(MAT-TA,F) and TLP2768A(E)? A: Both components share identical regulatory classifications (ECCN, HTSUS) and moisture sensitivity ratings. The TLP2768A(E) provides specified electrical parameters including 5000Vrms isolation voltage, 20kV/µs common mode transient immunity, and 20MBd data rate. The TLP2768A(E) is packaged in 6-SOIC surface mount configuration.

Q: Are there packaging considerations when substituting TLP2768A(E) for TLP552(MAT-TA,F)? A: The TLP2768A(E) is supplied in 6-SOIC (0.295", 7.50mm Width) surface mount package. Original TLP552(MAT-TA,F) packaging specifications are not provided in available documentation. PCB layout and footprint compatibility must be verified against original design specifications.

Q: Does the TLP2768A(E) meet current environmental compliance standards? A: Yes. The TLP2768A(E) is ROHS3 compliant and REACH Unaffected, meeting current environmental regulations for electronic components.

Q: What is the supply status of TLP2768A(E)? A: The TLP2768A(E) maintains active product status with current inventory availability of 961 pieces in new original condition.
