TLP250F(D4,F) Equivalent & Substitute Parts

Part Overview

The TLP250F(D4,F) is a photocoupler gate driver manufactured by Toshiba Semiconductor and Storage, designed for single-channel gate driving applications. This component is currently classified as obsolete, making identification of functionally equivalent alternatives essential for ongoing system support and new design implementations. The TLP250HF(D4,F) serves as the active-status successor within the TLP250 product family, offering enhanced specifications while maintaining core functional compatibility.

Substiute Parts

TLP250F(D4,F)

Toshiba Semiconductor and StorageIn Stock: 746TLP250F(D4,F) Datasheet

Current PartRFQ

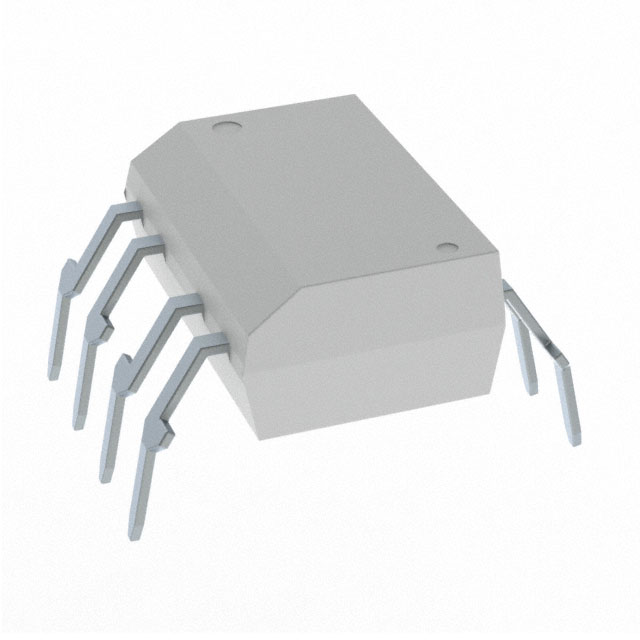

TLP250HF(D4,F)

Toshiba Semiconductor and StorageIn Stock: 989TLP250HF(D4,F) Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The TLP250HF(D4,F) qualifies as a direct substitute based on the following substitution criteria:

Manufacturer Continuity: Both parts are manufactured by Toshiba Semiconductor and Storage, ensuring consistent design philosophy and quality standards.

Product Family Alignment: Both components share the TLP250 base product number, indicating they belong to the same functional product line with compatible pinout and application context.

Regulatory & Compliance Equivalence: Both parts carry identical ECCN (EAR99) and HTSUS (8541.49.8000) classifications, confirming equivalent export control and tariff treatment.

Moisture Sensitivity Parity: Both components maintain MSL 1 (Unlimited) rating, indicating identical moisture handling requirements and storage conditions.

Functional Category: The TLP250HF(D4,F) is classified as an optocoupler with gate driver functionality, directly addressing the gate driver channel application of the original TLP250F(D4,F).

Parameter Comparison

Engineering Selection Recommendations

The TLP250HF(D4,F) is the recommended substitute for the obsolete TLP250F(D4,F) based on the following factors:

Product Status Transition: The TLP250HF(D4,F) maintains active manufacturing status, ensuring long-term availability and supply chain continuity. The original TLP250F(D4,F) is obsolete and subject to inventory depletion.

Regulatory Compliance Alignment: Both components share identical ECCN and HTSUS classifications, eliminating compliance complications in procurement and deployment.

Manufacturer Support: Toshiba Semiconductor and Storage continues to support the TLP250HF(D4,F) within the TLP250 product family, providing access to current technical documentation and quality assurance protocols.

Moisture Handling Equivalence: Identical MSL 1 ratings confirm that storage, handling, and assembly processes require no modification between the two components.

Frequently Asked Questions (FAQ)

Q: Can the TLP250HF(D4,F) be used as a direct replacement for the TLP250F(D4,F)?

A: Yes. Both components share the TLP250 base product number, identical manufacturer origin, matching regulatory classifications (ECCN EAR99, HTSUS 8541.49.8000), and equivalent moisture sensitivity levels. The TLP250HF(D4,F) is the active-status successor within the same product family.

Q: What is the primary reason for substitution?

A: The TLP250F(D4,F) is classified as obsolete. The TLP250HF(D4,F) provides functional continuity with active manufacturing status and ongoing supplier support.

Q: Are there packaging differences between these components?

A: The TLP250HF(D4,F) is specified as 8-DIP (0.300", 7.62mm) through-hole package. Detailed packaging specifications for the TLP250F(D4,F) were not provided in the reference data. Verify physical package compatibility with your PCB design before implementation.

Q: Do these components require different handling procedures?

A: No. Both components maintain MSL 1 (Unlimited) moisture sensitivity levels, indicating identical storage, handling, and assembly requirements.

Q: What compliance certifications apply to both components?

A: Both the TLP250F(D4,F) and TLP250HF(D4,F) carry ECCN EAR99 classification and HTSUS code 8541.49.8000, confirming equivalent export control and tariff treatment.
