TLP2095(TPL,F) Equivalent & Substitute Parts

Part Overview

The TLP2095(TPL,F) is a logic output optoisolator manufactured by Toshiba Semiconductor and Storage, designed for applications requiring galvanic isolation with CMTI (Common Mode Transient Immunity) performance. This component is classified as obsolete, making identification of functionally equivalent alternatives essential for ongoing system support and new design implementations. The TLP2395(TPL,E) serves as the primary active substitute, offering enhanced specifications while maintaining core isolation and switching characteristics.

Substiute Parts

TLP2095(TPL,F)

Toshiba Semiconductor and StorageIn Stock: 2112TLP2095(TPL,F) Datasheet

Current PartRFQ

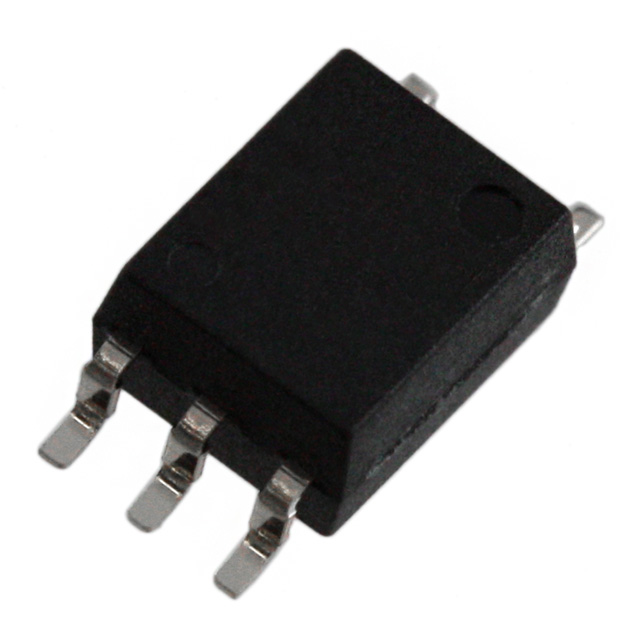

TLP2395(TPL,E

Toshiba Semiconductor and StorageIn Stock: 3289TLP2395(TPL,E Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The TLP2395(TPL,E) qualifies as a direct substitute based on the following alignment criteria:

Isolation and Safety Characteristics: Both components operate within the optoisolator category with equivalent MSL ratings (1 - Unlimited), ensuring identical moisture handling requirements and long-term reliability profiles.

Regulatory and Trade Compliance: Both parts share identical ECCN (EAR99) and HTSUS (8541.49.8000) classifications, confirming compatibility within the same regulatory and tariff frameworks.

Functional Architecture: The TLP2395(TPL,E) maintains the logic output optoisolator topology with CMTI performance, preserving the core isolation function of the original TLP2095(TPL,F).

Manufacturer Continuity: Both components are manufactured by Toshiba Semiconductor and Storage, ensuring consistent design philosophy and quality standards.

The substitution is driven by the obsolete status of the TLP2095(TPL,F) and the active product status of the TLP2395(TPL,E), making the latter the recommended path for component procurement and system redesign.

Parameter Comparison

Engineering Selection Recommendations

For Obsolete Component Replacement: The TLP2095(TPL,F) is classified as obsolete. The TLP2395(TPL,E) is the designated substitute with active product status, ensuring long-term availability and manufacturing support.

Regulatory Compliance: Both components maintain identical ECCN and HTSUS classifications, confirming that substitution does not introduce regulatory complications for export, import, or tariff purposes.

Supply Chain Continuity: Selection of the TLP2395(TPL,E) provides access to current inventory (3200 Pcs New Original In Stock) and ongoing manufacturing support from Toshiba Semiconductor and Storage, eliminating obsolescence risk associated with the original part number.

Moisture and Environmental Handling: Both components share MSL 1 (Unlimited) ratings, confirming that existing storage, handling, and assembly procedures require no modification.

Frequently Asked Questions (FAQ)

Q: Can the TLP2395(TPL,E) directly replace the TLP2095(TPL,F) in existing designs?

A: Yes. Both components are optoisolators manufactured by Toshiba with identical MSL ratings, ECCN classifications, and HTSUS codes. The TLP2395(TPL,E) is the active substitute designated for the obsolete TLP2095(TPL,F).

Q: What is the primary reason for substitution?

A: The TLP2095(TPL,F) is classified as obsolete. The TLP2395(TPL,E) maintains active product status with current manufacturing support and inventory availability.

Q: Are there package compatibility considerations?

A: Both components are surface mount optoisolators. The TLP2395(TPL,E) is specified in a 6-SOIC (0.179", 4.55mm Width), 5 Lead package. Verify that your PCB layout accommodates this package configuration before implementation.

Q: Do the regulatory classifications remain unchanged?

A: Yes. Both components share identical ECCN (EAR99) and HTSUS (8541.49.8000) codes, confirming that substitution does not alter regulatory or tariff treatment.

Q: What is the moisture sensitivity level for both components?

A: Both the TLP2095(TPL,F) and TLP2395(TPL,E) are rated MSL 1 (Unlimited), indicating no moisture sensitivity restrictions and unlimited shelf life under standard storage conditions.
