TL53GF160Q Equivalent & Substitute Parts

Part Overview

The TL53GF160Q is a tactile switch manufactured by E-Switch, configured as SPST x 2 with side actuation and through-hole, right-angle mounting. This component is rated for 0.05A at 12VDC and features a 160gf operating force with 0.25mm switch travel. The TL53GF160Q is classified as obsolete, making identification of compatible substitute parts essential for ongoing production and maintenance applications.

Substiute Parts

TL53GF160Q

E-SwitchIn Stock: 894TL53GF160Q Datasheet

Current PartRFQ

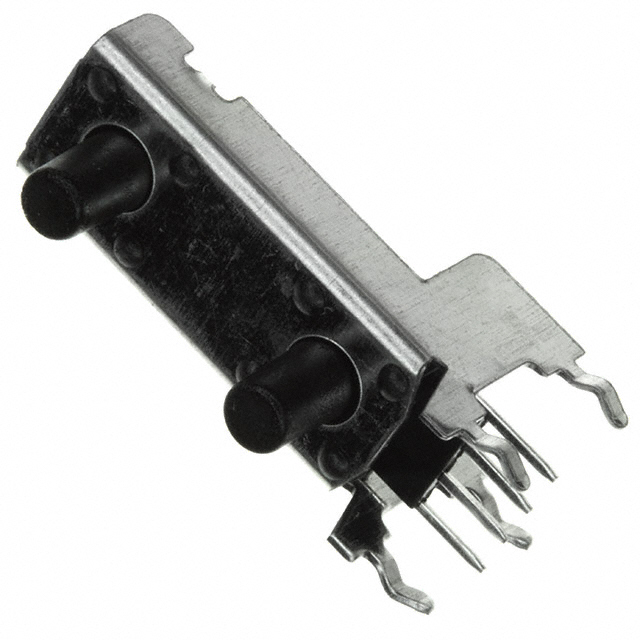

TL53EF160Q

E-SwitchIn Stock: 2883TL53EF160Q Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the TL53GF160Q is determined by strict equivalence across the following critical parameters:

• Circuit configuration: SPST x 2
• Switch function: Off-Mom
• Contact rating: 0.05A @ 12VDC
• Mounting type: Through Hole, Right Angle
• Actuator orientation: Side Actuated
• Operating force: 160gf
• Switch travel: 0.25mm
• Mechanical life: 100,000 Cycles
• Operating temperature range: -20°C ~ 70°C
• Termination style: PC Pin
• Outline dimensions: 8.40mm x 10.50mm
• RoHS compliance: ROHS3 Compliant

The TL53EF160Q qualifies as a direct substitute based on full alignment with these parameters. The primary difference is the actuator length, which varies from 8.35mm (TL53GF160Q) to 7.35mm (TL53EF160Q), and packaging format (Tray vs. standard packaging). Both parts maintain identical electrical and mechanical specifications.

Parameter Comparison

Engineering Selection Recommendations

The TL53EF160Q is the qualified substitute for the obsolete TL53GF160Q. Both parts maintain identical electrical performance and mechanical specifications, with the exception of actuator length. The TL53EF160Q carries Active product status, ensuring continued availability and supply chain reliability. Both parts are ROHS3 Compliant and REACH Unaffected, meeting current regulatory requirements. The TL53EF160Q is available in Tray packaging with significantly higher inventory levels (2774 Pcs vs. 852 Pcs), supporting production continuity.
