TL2230OAF100Q Equivalent & Substitute Parts

Part Overview

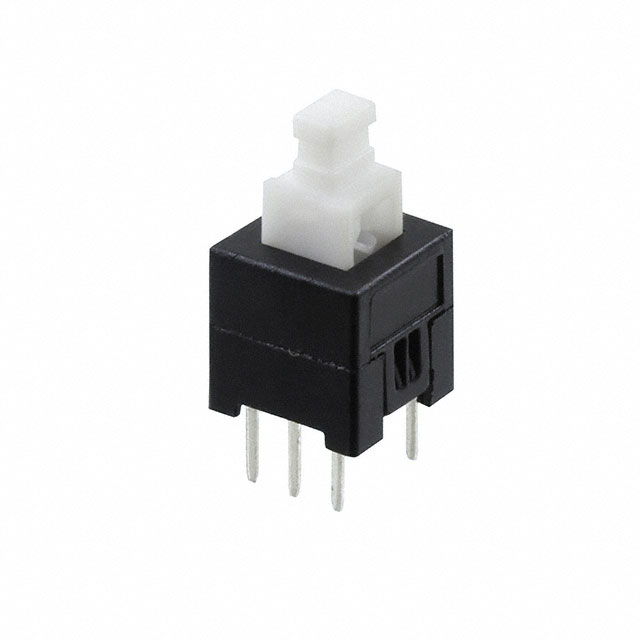

The TL2230OAF100Q is a pushbutton switch with DPDT (Double Pole Double Throw) circuit configuration, rated for 100mA DC at 30V. This component features a plunger actuator with PC pin termination and is designed for through-hole mounting applications. The part is currently obsolete, making identification of compatible substitutes essential for ongoing maintenance, repair, and legacy system support. Active equivalent models within the same series provide direct functional replacement while maintaining electrical and mechanical compatibility.

Substiute Parts

TL2230OAF100Q

E-SwitchIn Stock: 1253TL2230OAF100Q Datasheet

Current PartRFQ

TL2230OAF100

E-SwitchIn Stock: 832TL2230OAF100 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the TL2230OAF100Q is determined by strict equivalence across the following critical parameters:

• Circuit Configuration: DPDT topology must be maintained
• Current Rating: 100mA DC minimum requirement
• Voltage Rating: 30V DC minimum requirement
• Switch Function: On-Mom (momentary) operation
• Mounting Type: Through Hole configuration
• Actuator Type: Plunger for Cap design
• Termination Style: PC Pin connections
• Electrical Life: 10,000 Cycles minimum
• Series Compatibility: TL2230 series components

The TL2230OAF100 qualifies as a direct substitute based on identical electrical specifications, mechanical configuration, and series designation. The primary distinction is product status: TL2230OAF100Q is obsolete while TL2230OAF100 maintains active production status.

Parameter Comparison

Engineering Selection Recommendations

The TL2230OAF100 is the appropriate substitute for the obsolete TL2230OAF100Q. Both components are ROHS3 compliant and maintain identical electrical and mechanical specifications. The substitute part is currently in active production status, ensuring availability for new designs and replacement applications. Selection of TL2230OAF100 eliminates obsolescence risk while preserving full functional compatibility with existing circuit designs and PCB layouts.

Frequently Asked Questions (FAQ)

Q: Can TL2230OAF100 be used as a direct replacement for TL2230OAF100Q?

A: Yes. Both parts share identical electrical ratings (100mA DC, 30V), circuit configuration (DPDT), switch function (On-Mom), mounting type (Through Hole), actuator design (Plunger for Cap), and termination style (PC Pin). The primary difference is product status: TL2230OAF100Q is obsolete while TL2230OAF100 is active production.

Q: What determines compatibility between these pushbutton switches?

A: Compatibility is established through equivalence in circuit topology, current and voltage ratings, switch function, mounting configuration, actuator type, and termination method. All these parameters are identical between the main part and substitute.

Q: Are there packaging differences between TL2230OAF100Q and TL2230OAF100?

A: TL2230OAF100Q is packaged in standard format while TL2230OAF100 is supplied in bulk packaging. Both maintain identical component specifications and through-hole mounting footprint.

Q: Does the substitute part maintain the same electrical life rating?

A: Yes. Both TL2230OAF100Q and TL2230OAF100 are rated for 10,000 electrical cycles, ensuring equivalent operational longevity.

Q: Are both parts RoHS compliant?

A: Yes. Both TL2230OAF100Q and TL2230OAF100 are ROHS3 compliant, meeting current environmental and regulatory requirements.
