THS5075RJ Equivalent & Substitute Parts

Part Overview

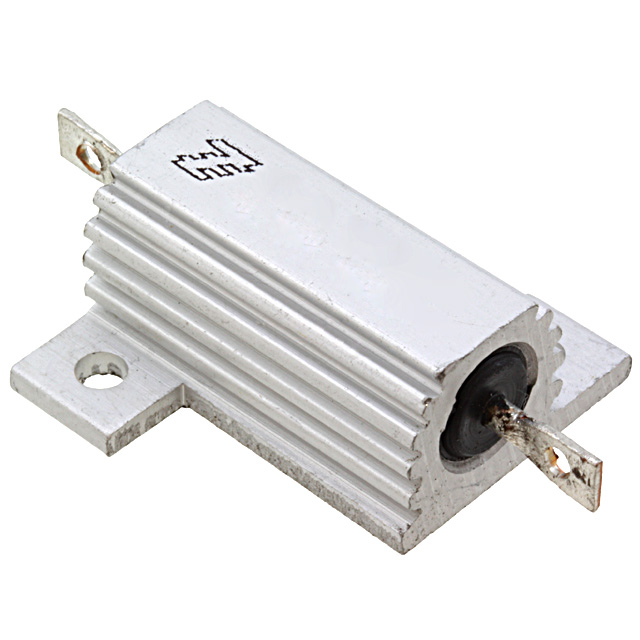

The THS5075RJ is a 75 Ohms ±5% 50W wirewound chassis mount resistor manufactured by TE Connectivity Passive Product. This component is designed for high-power applications requiring reliable thermal dissipation through aluminum housing with flanged mounting. The part is currently Active in product status with 919 units in stock.

Substitute parts are identified when equivalent electrical performance and mechanical compatibility can be maintained within the allowed parameter specifications for this resistor category. Substitution becomes necessary due to inventory availability, lead time requirements, or specific application performance needs.

Key Parameters

Parameter	Value	Specification Type
Resistance	75 Ohms	Critical
Power Rating	50W	Critical
Tolerance	±5%	Critical
Composition	Wirewound	Critical
Mounting Feature	Flanges	Critical
Lead Style	Solder Lugs	Critical
Housing Type	Aluminum	Critical
Operating Temperature Range	-55°C ~ 200°C	Important
Temperature Coefficient	±50ppm/°C	Important
RoHS Status	ROHS3 Compliant	Compliance

Substitute Part Grouping Explanation

Substitute parts for the THS5075RJ are identified based on strict equivalence of the following critical parameters:

Critical Electrical Parameters:

Resistance value: 75 Ohms
Power rating: 50W
Composition: Wirewound construction

Critical Mechanical Parameters:

Mounting feature: Flanges
Lead style: Solder Lugs
Housing type: Aluminum
Package/Case: Axial, Box

Compliance Parameters:

RoHS3 Compliant status
ECCN and HTSUS classifications

The TMC05075R00FE02 qualifies as a substitute because it maintains all critical electrical and mechanical parameters while offering improved tolerance (±1% versus ±5%) and extended operating temperature range (-55°C ~ 250°C versus -55°C ~ 200°C). The substitute part is manufactured by Vishay Dale and is Active in product status.

Parameter Comparison

Parameter	THS5075RJ (Main Part)	TMC05075R00FE02 (Substitute)	Compatibility
Manufacturer	TE Connectivity Passive Product	Vishay Dale	Different manufacturer
Resistance	75 Ohms	75 Ohms	Equivalent
Tolerance	±5%	±1%	Substitute has tighter tolerance
Power Rating	50W	50W	Equivalent
Composition	Wirewound	Wirewound	Equivalent
Temperature Coefficient	±50ppm/°C	±20ppm/°C	Substitute has better stability
Operating Temperature	-55°C ~ 200°C	-55°C ~ 250°C	Substitute has extended range
Mounting Feature	Flanges	Flanges	Equivalent
Lead Style	Solder Lugs	Solder Lugs	Equivalent
Housing Type	Aluminum	Aluminum	Equivalent
Package/Case	Axial, Box	Axial, Box	Equivalent
Size/Dimension	2.008" L x 1.181" W (51.00mm x 30.00mm)	1.968" L x 1.140" W (49.99mm x 28.96mm)	Physically similar, minor dimensional variance
Height - Seated (Max)	0.669" (17.00mm)	0.625" (15.87mm)	Substitute is slightly lower profile
RoHS Status	ROHS3 Compliant	ROHS3 Compliant	Equivalent
ECCN	EAR99	EAR99	Equivalent
HTSUS	8533.29.0000	8533.29.0000	Equivalent

Engineering Selection Recommendations

THS5075RJ Selection Criteria:

Primary choice when TE Connectivity Passive Product sourcing is required
Suitable for applications with operating temperatures up to 200°C
Tolerance of ±5% is acceptable for general-purpose high-power applications
Active product status with established supply chain

TMC05075R00FE02 Selection Criteria:

Substitute when Vishay Dale component sourcing is preferred or required
Superior performance in applications requiring extended temperature operation up to 250°C
Tighter tolerance (±1%) provides improved accuracy for precision circuit applications
Moisture-resistant feature provides additional environmental protection
Active product status with 1163 units in stock
Both parts maintain ROHS3 compliance and identical ECCN/HTSUS classifications

Both parts are Active in product status and fully compliant with RoHS3 regulations. Selection between these parts should be based on manufacturer preference, inventory availability, and specific application temperature and tolerance requirements.

Frequently Asked Questions (FAQ)

Q: Can TMC05075R00FE02 be used as a direct replacement for THS5075RJ?

A: Yes. Both parts share identical resistance (75 Ohms), power rating (50W), composition (wirewound), mounting features (flanges), lead style (solder lugs), and housing type (aluminum). The substitute part meets or exceeds all critical electrical and mechanical specifications.

Q: What are the key differences between these two parts?

A: The primary differences are: (1) Tolerance: TMC05075R00FE02 offers ±1% versus THS5075RJ's ±5%; (2) Temperature Coefficient: TMC05075R00FE02 has ±20ppm/°C versus THS5075RJ's ±50ppm/°C; (3) Operating Temperature Range: TMC05075R00FE02 extends to 250°C versus THS5075RJ's 200°C; (4) Physical dimensions are slightly different but both use identical mounting and lead styles.

Q: Are there any dimensional compatibility concerns?

A: Minor dimensional differences exist. TMC05075R00FE02 is slightly smaller (1.968" L x 1.140" W versus 2.008" L x 1.181" W) and has a lower seated height (0.625" versus 0.669"). These differences are within typical PCB layout tolerances for flanged chassis mount resistors. Verify mounting hole spacing and clearance in your specific application.

Q: Do both parts meet the same compliance standards?

A: Yes. Both THS5075RJ and TMC05075R00FE02 are ROHS3 compliant with identical ECCN (EAR99) and HTSUS (8533.29.0000) classifications.

Q: Which part should be selected for high-temperature applications?

A: TMC05075R00FE02 is suitable for applications requiring operation up to 250°C, while THS5075RJ is rated to 200°C. For applications approaching or exceeding 200°C, TMC05075R00FE02 is the appropriate selection.

Q: What is the significance of the tolerance difference?

A: THS5075RJ has ±5% tolerance while TMC05075R00FE02 has ±1% tolerance. The tighter tolerance of the substitute part results in more precise resistance values, which is beneficial for applications requiring accurate impedance matching or precision signal conditioning circuits.
