TFM-130-12-S-D-A Equivalent & Substitute Parts

Part Overview

The TFM-130-12-S-D-A is a surface mount rectangular connector header manufactured by Samtec Inc. as part of the Tiger Eye™ TFM series. This connector is an active product designed for board-to-board or cable applications with 60 positions arranged in 2 rows at 0.050" (1.27mm) pitch. The part is in active production status with full inventory availability (1200 pcs in stock).

Alternative models within the TFM-130 series become necessary when application requirements specify different insulation heights or when inventory constraints require sourcing from available stock levels.

Substiute Parts

TFM-130-12-S-D-A

Samtec Inc.In Stock: 1276TFM-130-12-S-D-A Datasheet

Current PartRFQ

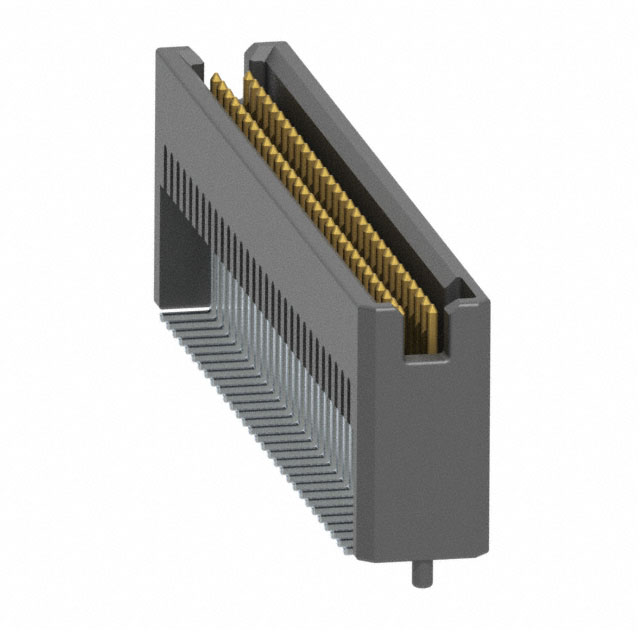

TFM-130-32-S-D-A

Samtec Inc.In Stock: 965TFM-130-32-S-D-A Datasheet

SimilarRFQ

TFM-130-22-S-D-A

Samtec Inc.In Stock: 1186TFM-130-22-S-D-A Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution within the TFM-130 series is determined by the following fixed parameters that must remain identical across all equivalent parts:

• Manufacturer Part Number base: TFM-130
• Number of Positions: 60
• Number of Rows: 2
• Pitch - Mating: 0.050" (1.27mm)
• Row Spacing - Mating: 0.050" (1.27mm)
• Contact Type: Male Pin
• Mounting Type: Surface Mount
• Shrouding: Shrouded - 4 Wall
• Contact Length - Mating: 0.139" (4.63mm)
• Current Rating: 2.9A per Contact
• Voltage Rating: 275VAC
• Operating Temperature: -55°C ~ 125°C
• Material Flammability Rating: UL94 V-0
• RoHS Status: ROHS3 Compliant

The variable parameter that distinguishes substitute parts is:

• Insulation Height: Varies between 0.290" (7.37mm), 0.360" (9.14mm), and 0.435" (11.05mm)

Parameter Comparison

Engineering Selection Recommendations

All three parts—TFM-130-12-S-D-A, TFM-130-22-S-D-A, and TFM-130-32-S-D-A—are active products manufactured by Samtec Inc. with identical electrical and mechanical specifications except for insulation height. All parts maintain ROHS3 compliance and UL94 V-0 flammability rating.

Selection between these parts is determined solely by the insulation height requirement of the application:

• TFM-130-12-S-D-A: 0.290" (7.37mm) insulation height
• TFM-130-22-S-D-A: 0.360" (9.14mm) insulation height
• TFM-130-32-S-D-A: 0.435" (11.05mm) insulation height

All three parts are suitable for identical electrical and thermal operating conditions. Substitution is valid when the application PCB layout and mating connector clearance accommodate the specified insulation height.

Frequently Asked Questions (FAQ)

Q: Can TFM-130-22-S-D-A be used as a direct replacement for TFM-130-12-S-D-A?

A: Direct substitution is possible only if the application PCB layout and mating connector clearance accommodate the increased insulation height of 0.360" (9.14mm) versus 0.290" (7.37mm). All electrical and thermal specifications are identical.

Q: What is the difference between these three part numbers?

A: The only difference is insulation height. The TFM-130-12-S-D-A has the lowest profile at 0.290" (7.37mm), TFM-130-22-S-D-A is 0.360" (9.14mm), and TFM-130-32-S-D-A is the tallest at 0.435" (11.05mm). All other parameters including pitch, position count, current rating, and voltage rating are identical.

Q: Are all three parts RoHS compliant?

A: Yes, all three parts are ROHS3 compliant and carry UL94 V-0 flammability rating.

Q: What is the moisture sensitivity level for these connectors?

A: All three parts have Moisture Sensitivity Level (MSL) of 1, which indicates unlimited shelf life without special storage requirements.

Q: Can these connectors handle the same current and voltage?

A: Yes, all three parts have identical current rating of 2.9A per contact and voltage rating of 275VAC. Operating temperature range is -55°C to 125°C for all variants.

Q: Which part should I choose if space is limited?

A: If vertical space is constrained, the TFM-130-12-S-D-A with 0.290" (7.37mm) insulation height provides the lowest profile. Selection must be based on your specific PCB layout requirements and mating connector specifications.
