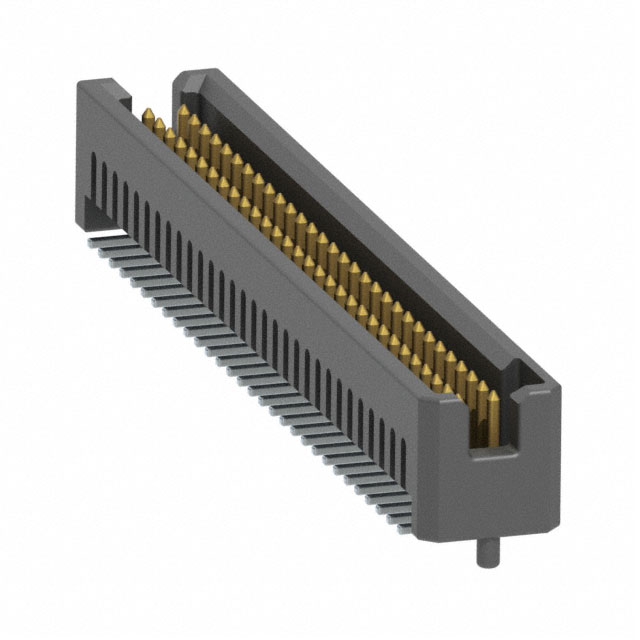

TFM-130-02-S-D-A-P-TR Equivalent & Substitute Parts

Part Overview

The TFM-130-02-S-D-A-P-TR is a surface mount rectangular connector header manufactured by Samtec Inc. as part of the Tiger Eye™ TFM series. This connector is an active product designed for board-to-board or cable applications requiring 60-position, dual-row interconnection at 1.27mm pitch. The part is in active production status with 904 units currently in stock. Substitute parts are identified to provide alternative sourcing options when the primary part number is unavailable or when inventory requirements necessitate alternative stock sources.

Substiute Parts

TFM-130-02-S-D-A-P-TR

Samtec Inc.In Stock: 949TFM-130-02-S-D-A-P-TR Datasheet

Current PartRFQ

TFM-130-02-S-D-A-K-TR

Samtec Inc.In Stock: 2959TFM-130-02-S-D-A-K-TR Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The TFM-130-02-S-D-A-P-TR has one identified substitute part: TFM-130-02-S-D-A-K-TR. Both parts are qualified as substitutes based on matching the following critical parameters:

• Connector type: Header
• Contact type: Male Pin
• Number of positions: 60
• Number of rows: 2
• Pitch - mating: 0.050" (1.27mm)
• Row spacing - mating: 0.050" (1.27mm)
• Mounting type: Surface Mount
• Shrouding: Shrouded - 4 Wall
• Fastening type: Push-Pull
• Current rating: 2.9A per Contact
• Voltage rating: 275VAC
• Operating temperature: -55°C ~ 125°C
• Material flammability rating: UL94 V-0
• Insulation material: Liquid Crystal Polymer (LCP)
• Contact material: Phosphor Bronze
• Contact finish - mating: Gold
• Contact finish thickness - mating: 30.0µin (0.76µm)
• Contact finish - post: Tin
• Insulation height: 0.220" (5.60mm)
• Contact length - mating: 0.131" (3.33mm)
• Contact shape: Square
• Features: Board Guide, Pick and Place
• Termination: Solder
• Packaging: Tape & Reel (TR)
• Series: Tiger Eye™ TFM
• Base product number: TFM-130
• RoHS status: ROHS3 Compliant
• Moisture sensitivity level: 1 (Unlimited)
• ECCN: EAR99
• HTSUS: 8536.69.4040

The substitution is valid across all specified electrical, mechanical, and environmental parameters.

Parameter Comparison

Engineering Selection Recommendations

Both the TFM-130-02-S-D-A-P-TR and TFM-130-02-S-D-A-K-TR are active products from Samtec Inc. with identical electrical, mechanical, and environmental specifications. Both parts are ROHS3 compliant and carry EAR99 classification. Selection between these parts should be based on inventory availability and lead time requirements. The TFM-130-02-S-D-A-K-TR currently has higher inventory availability at 2939 units compared to 904 units for the TFM-130-02-S-D-A-P-TR. Both parts are suitable for applications requiring 60-position, dual-row surface mount headers with 1.27mm pitch, 2.9A per contact current rating, and 275VAC voltage rating across the -55°C to 125°C operating temperature range.

Frequently Asked Questions (FAQ)

Q: Are TFM-130-02-S-D-A-P-TR and TFM-130-02-S-D-A-K-TR electrically interchangeable?

A: Yes. Both parts have identical electrical specifications including 2.9A per contact current rating, 275VAC voltage rating, contact material (Phosphor Bronze), contact finish (Gold mating surface, Tin post), and operating temperature range (-55°C ~ 125°C).

Q: Are these parts mechanically interchangeable?

A: Yes. Both parts have identical mechanical specifications including 60 positions, 2 rows, 0.050" (1.27mm) pitch, 0.050" (1.27mm) row spacing, shrouded 4-wall design, push-pull fastening, and surface mount termination.

Q: Do both parts have the same packaging?

A: Yes. Both parts are supplied in Tape & Reel (TR) packaging.

Q: Are there any compliance or certification differences?

A: No. Both parts are ROHS3 compliant, carry UL94 V-0 flammability rating, have MSL 1 (Unlimited) moisture sensitivity level, and share identical ECCN (EAR99) and HTSUS (8536.69.4040) classifications.

Q: What is the difference between these two part numbers?

A: The parts are functionally identical across all specified parameters. The difference in part numbers reflects internal Samtec designation. The primary distinction is inventory availability, with TFM-130-02-S-D-A-K-TR having higher stock levels.

Q: Can I use either part in my design without modification?

A: Yes. Both parts meet identical specifications for electrical performance, mechanical fit, environmental operation, and compliance requirements. No design modifications are required when substituting between these parts.
