TFC-130-22-F-D Equivalent & Substitute Parts

Part Overview

The TFC-130-22-F-D is a Samtec Tiger Eye™ TFC series rectangular connector header designed for surface mount applications. This 60-position, dual-row board-to-board connector operates across -55°C to 125°C with a 0.050" (1.27mm) pitch and supports 3.1A per contact at 275VAC. The part is Active status and ROHS3 compliant with UL94 V-0 flammability rating. Identifying equivalent substitute parts ensures design flexibility, supply chain continuity, and procurement optimization when the primary part becomes unavailable or when alternative specifications better suit application requirements.

Substiute Parts

TFC-130-22-F-D

Samtec Inc.In Stock: 1003TFC-130-22-F-D Datasheet

Current PartRFQ

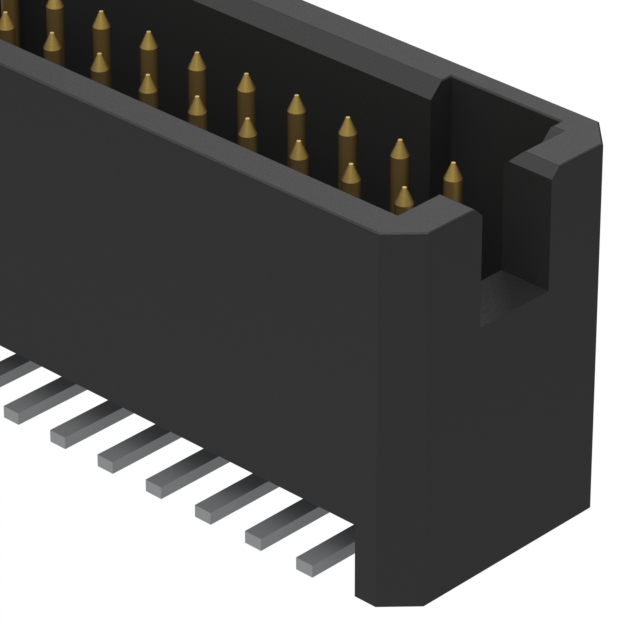

TFC-130-12-F-D-K

Samtec Inc.In Stock: 1518TFC-130-12-F-D-K Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The TFC-130-12-F-D-K qualifies as a direct substitute for the TFC-130-22-F-D based on the following critical parameters:

Matching Parameters:

• Manufacturer: Samtec Inc.
• Series: Tiger Eye™ TFC
• Connector Type: Header
• Contact Type: Male Pin
• Number of Positions: 60
• Number of Rows: 2
• Pitch - Mating: 0.050" (1.27mm)
• Row Spacing - Mating: 0.050" (1.27mm)
• Mounting Type: Surface Mount
• Shrouding: Shrouded - 4 Wall
• Termination: Solder
• Fastening Type: Push-Pull
• Contact Shape: Square
• Contact Finish - Mating: Gold
• Contact Finish Thickness - Mating: 3.00µin (0.076µm)
• Contact Material: Phosphor Bronze
• Insulation Material: Liquid Crystal Polymer (LCP)
• Current Rating: 3.1A per Contact
• Voltage Rating: 275VAC
• Operating Temperature: -55°C ~ 125°C
• Material Flammability Rating: UL94 V-0
• Insulation Color: Black
• RoHS Status: ROHS3 Compliant
• Moisture Sensitivity Level: 1 (Unlimited)

Differing Parameters:

• Insulation Height: 0.366" (9.30mm) vs. 0.296" (7.52mm)
• Features: None listed vs. Pick and Place

The substitute maintains electrical and mechanical compatibility while offering a reduced insulation height profile and enhanced assembly capability through Pick and Place feature support.

Parameter Comparison

Engineering Selection Recommendations

Both TFC-130-22-F-D and TFC-130-12-F-D-K maintain Active product status and full ROHS3 compliance with UL94 V-0 flammability certification. The electrical specifications—current rating, voltage rating, contact material, and finish—are identical across both parts. The primary design consideration is the insulation height differential of 0.070" (1.78mm), with TFC-130-12-F-D-K offering a lower profile suitable for space-constrained applications. The Pick and Place feature on TFC-130-12-F-D-K provides manufacturing process advantages for automated assembly environments. Selection between these parts depends on PCB layout constraints and assembly methodology rather than electrical or thermal performance differences.

Frequently Asked Questions (FAQ)

Q: Are TFC-130-22-F-D and TFC-130-12-F-D-K electrically interchangeable?

A: Yes. Both parts share identical electrical specifications including 3.1A per contact current rating, 275VAC voltage rating, phosphor bronze contact material with gold plating, and -55°C to 125°C operating temperature range.

Q: What is the primary difference between these two parts?

A: The insulation height differs by 0.070" (1.78mm), with TFC-130-12-F-D-K providing a lower profile. Additionally, TFC-130-12-F-D-K includes Pick and Place feature support for automated assembly.

Q: Can I substitute TFC-130-12-F-D-K for TFC-130-22-F-D in an existing design?

A: Substitution is feasible if PCB layout accommodates the reduced insulation height of 0.296" (7.52mm) versus 0.366" (9.30mm). Verify mating connector clearance and board-to-board spacing requirements before implementation.

Q: Are both parts RoHS compliant?

A: Yes. Both TFC-130-22-F-D and TFC-130-12-F-D-K are ROHS3 compliant with UL94 V-0 flammability rating and MSL 1 (Unlimited) moisture sensitivity level.

Q: Which part should I select for automated assembly?

A: TFC-130-12-F-D-K includes Pick and Place feature support, making it the preferred choice for high-volume automated manufacturing environments.

Q: Do these parts require different PCB footprints?

A: Both parts maintain identical pitch (0.050"), row spacing (0.050"), and 60-position configuration. The footprint remains the same; only the component height differs.
