TE0725LP-01-100-2L Equivalent & Substitute Parts

Part Overview

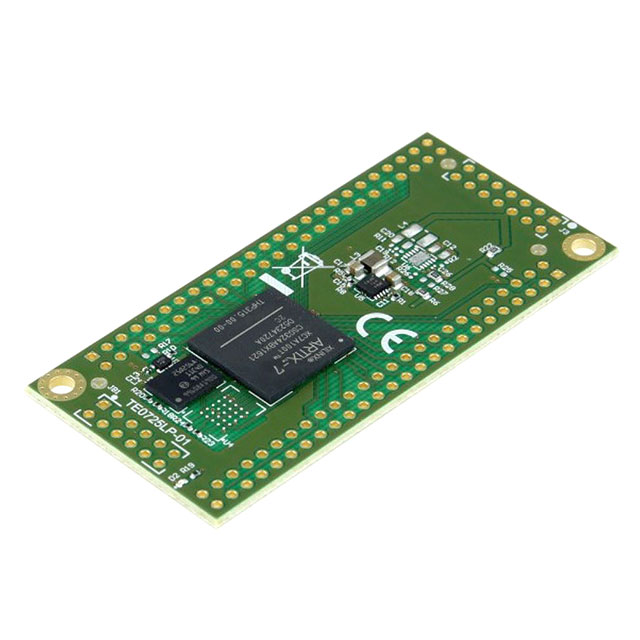

The TE0725LP-01-100-2L is an embedded FPGA module manufactured by Trenz Electronic GmbH, featuring an Artix-7 A100T core processor operating at 25MHz with 32MB flash storage. This module is classified as an FPGA Core embedded solution with a 50-pin connector interface and physical dimensions of 73.00mm × 35.00mm.

The TE0725LP-01-100-2L is currently listed as Obsolete product status. Identifying equivalent and substitute parts is necessary to ensure continued system design capability, maintain supply chain continuity, and support legacy system maintenance where direct replacement or functional alternatives are required.

Substiute Parts

TE0725LP-01-100-2L

Trenz Electronic GmbHIn Stock: 1103TE0725LP-01-100-2L Datasheet

Current PartRFQ

TE0725LP-01-72C-1T

Trenz Electronic GmbHIn Stock: 1211TE0725LP-01-72C-1T Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the TE0725LP-01-100-2L is determined by the following critical parameters:

Core Compatibility Parameters:

• Identical manufacturer (Trenz Electronic GmbH)
• Identical series designation (TE0725)
• Identical core processor (Artix-7 A100T)
• Identical operating speed (25MHz)
• Identical connector type (50 Pin)
• Identical physical dimensions (73.00mm × 35.00mm)

Variable Parameters Allowing Substitution:

• Flash memory size (32MB in main part; 64MB in substitute)

The TE0725LP-01-72C-1T qualifies as a direct substitute because it maintains all core compatibility parameters while offering increased flash storage capacity. The expanded memory specification does not compromise electrical or mechanical compatibility with the original design.

Parameter Comparison

Engineering Selection Recommendations

TE0725LP-01-72C-1T as Primary Substitute:

The TE0725LP-01-72C-1T is the qualified substitute for the obsolete TE0725LP-01-100-2L. Selection of this substitute is supported by the following engineering factors:

• Product Status: The substitute maintains Active product status, ensuring ongoing manufacturer support and availability, whereas the main part is Obsolete.
• Compliance Certifications: The substitute is RoHS3 Compliant and carries Moisture Sensitivity Level (MSL) 1 rating (Unlimited), indicating superior environmental compliance and handling characteristics.
• Electrical Compatibility: Identical core processor, operating speed, and connector configuration ensure direct functional compatibility.
• Memory Enhancement: The increased flash capacity (64MB versus 32MB) provides additional design margin without introducing incompatibility.
• Mechanical Compatibility: Identical physical dimensions and connector type ensure form-factor compatibility with existing mechanical designs.

Frequently Asked Questions (FAQ)

Q: Can the TE0725LP-01-72C-1T directly replace the TE0725LP-01-100-2L in existing designs?

A: Yes. Both modules share identical core processor specifications (Artix-7 A100T), operating speed (25MHz), connector type (50 Pin), and physical dimensions (73.00mm × 35.00mm). The increased flash memory in the substitute (64MB versus 32MB) does not introduce incompatibility.

Q: What is the primary difference between these two parts?

A: The primary difference is flash memory capacity. The TE0725LP-01-100-2L provides 32MB flash storage, while the TE0725LP-01-72C-1T provides 64MB flash storage. All other electrical and mechanical specifications are identical.

Q: Why is the main part listed as Obsolete?

A: The TE0725LP-01-100-2L is classified as Obsolete by the manufacturer. The TE0725LP-01-72C-1T maintains Active product status, indicating ongoing production and manufacturer support.

Q: Are there any compliance differences between the two parts?

A: The substitute part (TE0725LP-01-72C-1T) carries explicit RoHS3 Compliance certification and MSL 1 rating. The main part does not specify these certifications in the provided data.

Q: What connector configuration do both parts use?

A: Both the TE0725LP-01-100-2L and TE0725LP-01-72C-1T use a 50-pin connector interface, ensuring mechanical and electrical compatibility.

Q: Is the increased flash memory in the substitute part a disadvantage?

A: No. Increased flash memory capacity provides additional design margin and does not introduce any incompatibility or performance degradation. It is a functional enhancement.
