TCSS-4/0-U Equivalent & Substitute Parts

Part Overview

The TCSS-4/0-U is a compression connector terminal manufactured by TE Energy & Utilities, classified as a butt splice connector with inline, individual openings design. This component is rated for 4/0 AWG wire gauge and utilizes crimp termination technology. The product is currently obsolete, making identification of functionally equivalent alternatives essential for maintenance, repair, and legacy system support applications.

Substiute Parts

TCSS-4/0-U

TE Energy & UtilitiesIn Stock: 920TCSS-4/0-U Datasheet

Current PartRFQ

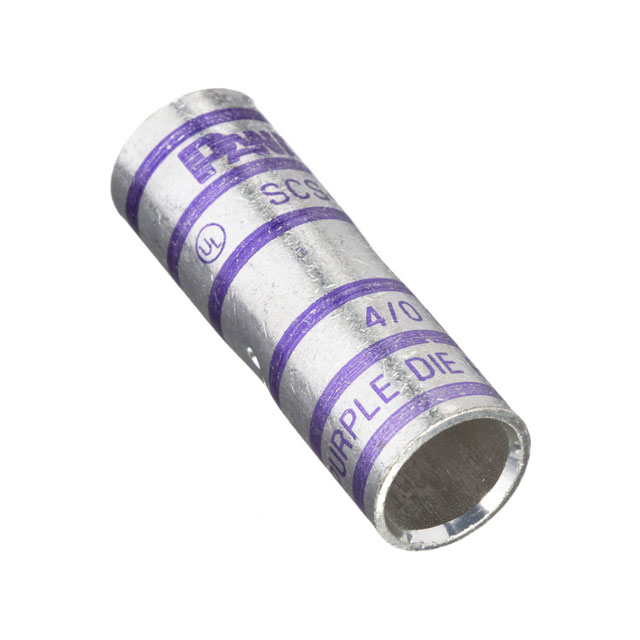

SCS4/0-X

Panduit CorpIn Stock: 796SCS4/0-X Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the TCSS-4/0-U is determined by strict equivalence across the following critical parameters:

• Terminal Type: Butt Splice, Inline, Individual Openings
• Wire Gauge: 4/0 AWG
• Number of Wire Entries: 2
• Termination Method: Crimp
• Insulation Classification: Non-Insulated
• Color: Purple

The SCS4/0-X manufactured by Panduit Corp meets all specified substitution criteria. Both components share identical functional and mechanical characteristics within the compression connector terminal category, enabling direct functional replacement in applications requiring 4/0 AWG butt splice crimp connectors with non-insulated construction.

Parameter Comparison

Engineering Selection Recommendations

The SCS4/0-X is the designated equivalent substitute for the obsolete TCSS-4/0-U. Selection is based on the following engineering factors:

• Functional Equivalence: Both components satisfy identical electrical and mechanical specifications for 4/0 AWG butt splice crimp termination applications.
• Compliance Status: The SCS4/0-X maintains ROHS3 compliance, exceeding the RoHS compliance level of the original component, ensuring compatibility with current regulatory requirements.
• Product Availability: The SCS4/0-X is classified as Active, providing assured supply for new installations and replacement requirements.
• Regulatory Alignment: Both components share identical ECCN (EAR99) and HTSUS (8536.90.4000) classifications, confirming trade and export compliance equivalence.

Frequently Asked Questions (FAQ)

Q: Can the SCS4/0-X directly replace the TCSS-4/0-U in existing installations?

A: Yes. The SCS4/0-X meets all functional and mechanical specifications of the TCSS-4/0-U, including wire gauge, terminal type, termination method, and connector configuration. Direct substitution is supported for applications requiring 4/0 AWG butt splice crimp connectors with non-insulated construction.

Q: What is the significance of the color designation (Purple) in these connectors?

A: The purple color is a standard industry identifier for 4/0 AWG compression connectors. Both the TCSS-4/0-U and SCS4/0-X utilize this color coding to facilitate rapid visual identification during installation and maintenance operations.

Q: Are there any compliance differences between the TCSS-4/0-U and SCS4/0-X?

A: The SCS4/0-X carries ROHS3 certification, which represents an enhanced compliance standard compared to the RoHS compliance of the original component. Both components maintain identical ECCN and HTSUS classifications, confirming regulatory equivalence for trade purposes.

Q: What does "Butt Splice, Inline, Individual Openings" mean?

A: This terminal type describes a connector designed to join two wire conductors end-to-end (butt splice configuration) with separate, individual openings for each wire entry. The inline design allows for direct conductor insertion without additional assembly components.

Q: Why is the TCSS-4/0-U classified as Obsolete?

A: Obsolete status indicates that the TCSS-4/0-U is no longer manufactured by TE Energy & Utilities. The SCS4/0-X, maintained as an Active product by Panduit Corp, provides continued availability for applications requiring equivalent 4/0 AWG butt splice crimp connector functionality.
