TCSL-3/0-U Equivalent & Substitute Parts

Part Overview

The TCSL-3/0-U is a compression connector terminal manufactured by TE Energy & Utilities, classified as a butt splice with inline individual openings for crimp termination. This non-insulated terminal is designed for 3/0 AWG wire applications and features orange color coding. The product is currently obsolete, making identification of functionally equivalent alternatives essential for ongoing maintenance, repair, and system continuity in applications where this connector type is specified.

Substiute Parts

TCSL-3/0-U

TE Energy & UtilitiesIn Stock: 1139TCSL-3/0-U Datasheet

Current PartRFQ

SCL3/0-X

Panduit CorpIn Stock: 1006SCL3/0-X Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution for the TCSL-3/0-U is determined by strict equivalence across the following critical parameters:

• Terminal Type: Butt Splice, Inline, Individual Openings
• Wire Gauge: 3/0 AWG
• Number of Wire Entries: 2
• Termination Method: Crimp
• Insulation Classification: Non-Insulated
• Color: Orange

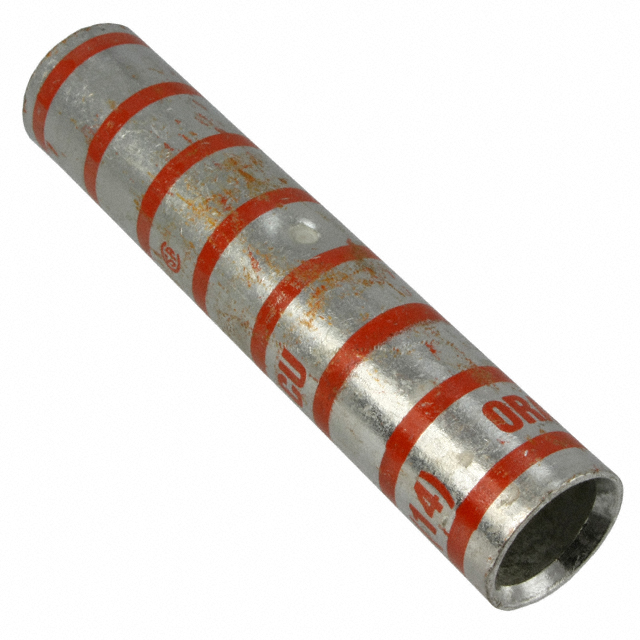

The SCL3/0-X from Panduit Corp meets all these criteria. Both terminals are designed for identical wire gauge applications, employ the same crimp termination methodology, and share the same physical configuration for inline butt splice connections. The substitute maintains functional compatibility for applications requiring non-insulated 3/0 AWG crimp splice terminals.

Parameter Comparison

Engineering Selection Recommendations

The SCL3/0-X serves as a direct functional equivalent to the obsolete TCSL-3/0-U. Both terminals satisfy identical electrical and mechanical requirements for 3/0 AWG crimp splice applications. The SCL3/0-X maintains active product status with current manufacturing support, whereas the TCSL-3/0-U is obsolete. Both components are RoHS compliant, with the SCL3/0-X meeting the more recent ROHS3 standard. Selection of the SCL3/0-X is appropriate for new installations and replacement applications requiring non-insulated butt splice terminals rated for 3/0 AWG conductors.

Frequently Asked Questions (FAQ)

Q: Can the SCL3/0-X directly replace the TCSL-3/0-U in existing applications?

A: Yes. Both terminals are configured as non-insulated butt splice connectors with crimp termination for 3/0 AWG wire. The mechanical and electrical specifications are equivalent, supporting direct substitution in applications where the TCSL-3/0-U was originally specified.

Q: What is the significance of the product status difference?

A: The TCSL-3/0-U is obsolete and no longer manufactured by TE Energy & Utilities. The SCL3/0-X is an active product with ongoing manufacturing and supply availability. For new procurements and long-term system support, the active SCL3/0-X is the appropriate selection.

Q: Are there compliance differences between these terminals?

A: Both terminals are RoHS compliant. The SCL3/0-X meets ROHS3 compliance, representing the current regulatory standard. This does not affect functional compatibility but indicates the SCL3/0-X incorporates current environmental and material restrictions.

Q: What packaging options are available?

A: The SCL3/0-X is supplied in bulk packaging. Packaging specifications for the TCSL-3/0-U were not provided in the technical documentation.

Q: Are these terminals suitable for the same wire gauge applications?

A: Yes. Both terminals are rated for 3/0 AWG conductors and employ identical crimp termination methodology, ensuring compatibility across equivalent wire gauge applications.
