TCSL-1/0-U Equivalent & Substitute Parts

Part Overview

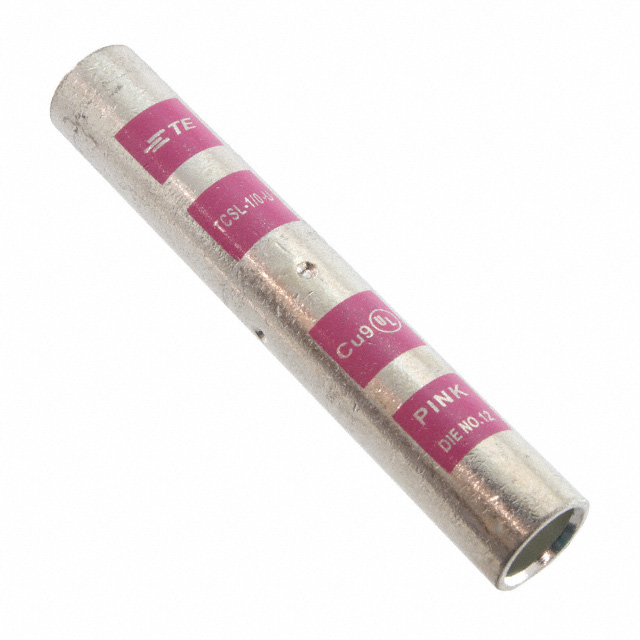

The TCSL-1/0-U is a compression connector terminal manufactured by TE Energy & Utilities, classified as a butt splice with inline individual openings for crimp termination. This non-insulated terminal is designed for 1/0 AWG wire applications and features pink insulation coloring. The product is currently obsolete, making identification of functionally equivalent alternatives essential for ongoing maintenance, repair, and system continuity in applications where this connector type is specified.

Substiute Parts

TCSL-1/0-U

TE Energy & UtilitiesIn Stock: 1061TCSL-1/0-U Datasheet

Current PartRFQ

SCL1/0-X

Panduit CorpIn Stock: 1156SCL1/0-X Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the TCSL-1/0-U is determined by strict alignment of the following parameters:

• Terminal Type: Butt Splice, Inline, Individual Openings
• Wire Gauge: 1/0 AWG
• Number of Wire Entries: 2
• Termination Method: Crimp
• Insulation Type: Non-Insulated
• Color: Pink

The SCL1/0-X from Panduit Corp meets all specified electrical and mechanical parameters required for direct substitution. Both terminals accommodate identical wire gauges, employ crimp termination, maintain the same connector configuration, and share non-insulated construction with matching color specification.

Parameter Comparison

Engineering Selection Recommendations

The SCL1/0-X represents a direct functional equivalent for applications currently specified with TCSL-1/0-U terminals. The substitute part maintains active product status, ensuring ongoing availability and supply chain continuity. Both components satisfy RoHS compliance requirements, with the SCL1/0-X meeting the more recent ROHS3 standard. Identical ECCN and HTSUS classifications confirm regulatory equivalence for export and tariff purposes. The transition from the obsolete TCSL-1/0-U to the active SCL1/0-X is supported by matching electrical specifications, mechanical configuration, and material composition.

Frequently Asked Questions (FAQ)

Q: Can SCL1/0-X be used as a direct replacement for TCSL-1/0-U in existing installations?

A: Yes. Both terminals share identical wire gauge (1/0 AWG), terminal type (butt splice with inline individual openings), termination method (crimp), insulation type (non-insulated), and color specification (pink). These parameters define functional compatibility for this connector category.

Q: What is the significance of the product status difference between the two parts?

A: TCSL-1/0-U is obsolete, meaning it is no longer manufactured or supported by TE Energy & Utilities. SCL1/0-X is active, indicating current production and availability from Panduit Corp. For new designs and ongoing procurement, the active part is the appropriate selection.

Q: Are there compliance differences between these terminals?

A: Both parts are RoHS compliant. TCSL-1/0-U meets RoHS requirements, while SCL1/0-X meets the more recent ROHS3 standard. Both share identical ECCN (EAR99) and HTSUS (8536.90.4000) classifications, confirming regulatory equivalence.

Q: What does the copper tubing feature on SCL1/0-X indicate?

A: The copper tubing construction in SCL1/0-X refers to the internal conductor material composition. This is a material specification that does not affect the electrical or mechanical compatibility parameters that determine substitution eligibility for this terminal type.

Q: Are packaging considerations relevant to substitution?

A: Both parts are supplied in bulk packaging. Packaging format does not affect terminal compatibility or performance in the application. Procurement quantities and handling procedures may require adjustment based on supplier inventory and ordering practices.
