TCSL-1000-U Equivalent & Substitute Parts

Part Overview

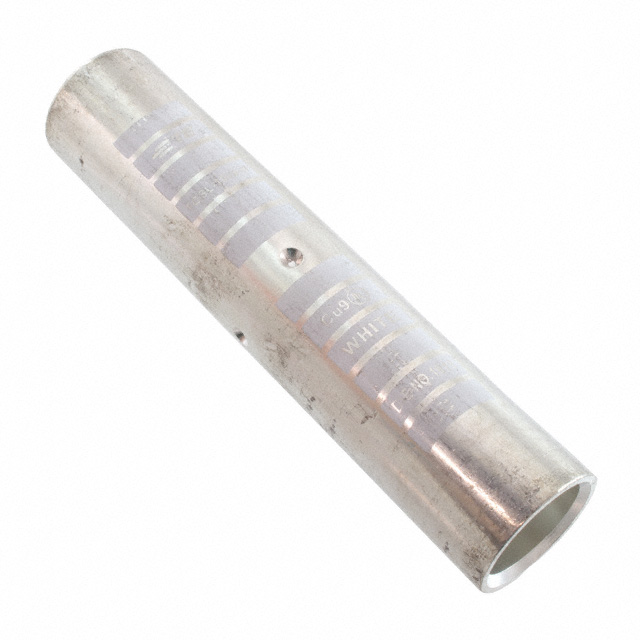

The TCSL-1000-U is a terminal butt splice connector manufactured by TE Energy & Utilities, designed for inline, individual opening crimp termination applications at 1000MCM (kcmil) wire gauge. This component is classified as obsolete, making identification of functionally equivalent alternatives essential for ongoing maintenance, repair, and system continuity in high-capacity electrical distribution applications.

Substiute Parts

TCSL-1000-U

TE Energy & UtilitiesIn Stock: 1049TCSL-1000-U Datasheet

Current PartRFQ

SCL1000-3

Panduit CorpIn Stock: 1092SCL1000-3 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the TCSL-1000-U is determined by strict alignment of the following critical parameters:

• Terminal Type: Butt Splice, Inline, Individual Openings
• Wire Gauge: 1000MCM (kcmil)
• Number of Wire Entries: 2
• Termination Method: Crimp
• Insulation Type: Non-Insulated

The substitute part SCL1000-3 meets all these criteria, establishing functional equivalence for direct replacement in applications requiring 1000MCM butt splice crimp connectors with individual opening configurations.

Parameter Comparison

Engineering Selection Recommendations

The SCL1000-3 (Panduit Corp) is the qualified substitute for the obsolete TCSL-1000-U. Selection is based on:

• Functional Equivalence: Identical terminal type, wire gauge, wire entry configuration, and termination method
• Product Status: SCL1000-3 maintains active production status, ensuring supply chain availability and long-term support
• Regulatory Compliance: Both parts meet export control requirements (EAR99) and harmonized tariff classifications (HTSUS 8536.90.4000). SCL1000-3 carries ROHS3 Compliant certification, exceeding the RoHS Compliant status of the main part
• Series Designation: SCL1000-3 is part of the Pan-Lug™ series, a recognized product line for high-capacity terminal applications

Frequently Asked Questions (FAQ)

Q: Can SCL1000-3 be used as a direct replacement for TCSL-1000-U?

A: Yes. Both parts share identical specifications for terminal type, wire gauge (1000MCM), wire entry configuration (2 entries), termination method (crimp), and insulation type (non-insulated). The parts are functionally equivalent for inline butt splice applications.

Q: What is the primary reason for substitution?

A: TCSL-1000-U is classified as obsolete. SCL1000-3 is an active product with ongoing manufacturing and supply availability.

Q: Are there packaging differences between these parts?

A: Both parts are supplied in bulk packaging. No special handling or packaging conversion is required for substitution.

Q: Do compliance certifications differ between the parts?

A: Both parts are EAR99 classified and share the same HTSUS code (8536.90.4000). SCL1000-3 carries ROHS3 Compliant certification, which represents current RoHS standards. TCSL-1000-U carries RoHS Compliant certification. Both meet regulatory requirements for their respective product statuses.

Q: Is color a substitution factor?

A: TCSL-1000-U is specified as white. SCL1000-3 has no color specification provided. Color does not affect electrical or mechanical function in non-insulated butt splice applications and is not a substitution barrier.
