TAC226K035P07 Equivalent & Substitute Parts Reference

Part Overview

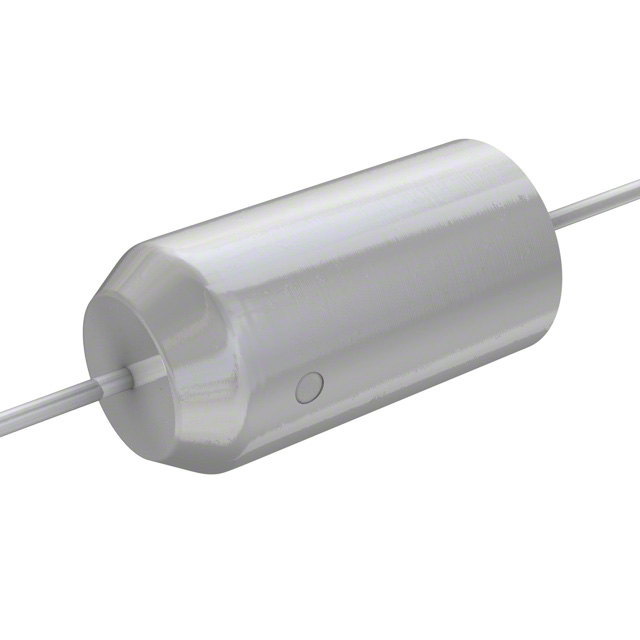

The TAC226K035P07 is a 22 µF molded tantalum capacitor rated at 35 V with axial through-hole mounting, manufactured by Cornell Dubilier Electronics (CDE). This component is classified as obsolete, making identification of equivalent and substitute parts essential for ongoing design support and production continuity. Substitute parts must maintain identical electrical specifications and mechanical compatibility to ensure direct replacement without circuit redesign.

Key Parameters

Parameter	Value
Capacitance	22 µF
Tolerance	±10%
Voltage - Rated	35 V
Type	Molded Tantalum
Mounting Type	Through Hole
Package / Case	Axial
Operating Temperature Range	-55°C ~ 125°C
Features	General Purpose

Substitute Part Grouping Explanation

Substitution eligibility for the TAC226K035P07 is determined by the following criteria:

Primary Electrical Parameters (Must Match):

Capacitance: 22 µF
Tolerance: ±10%
Voltage Rating: 35 V
Type: Molded Tantalum

Primary Mechanical Parameters (Must Match):

Mounting Type: Through Hole
Package / Case: Axial
Operating Temperature Range: -55°C ~ 125°C
Features: General Purpose

Secondary Parameters (Allowable Variation):

Physical dimensions (case length may vary within axial package constraints)
ESR (Equivalent Series Resistance) values when specified
Packaging format (Bulk, Tape & Reel, Tape & Box)
RoHS compliance status
Manufacturer size codes

All substitute parts listed maintain the core electrical and mechanical specifications required for direct replacement in the TAC226K035P07 application.

Parameter Comparison

Part Number	Manufacturer	Capacitance	Tolerance	Voltage	Type	Mounting	Package	Temp. Range	Product Status	RoHS Status
TAC226K035P07	Cornell Dubilier Electronics	22 µF	±10%	35 V	Molded	Through Hole	Axial	-55°C ~ 125°C	Obsolete	RoHS non-compliant
173D226X9035YW	Vishay Sprague	22 µF	±10%	35 V	Molded	Through Hole	Axial	-55°C ~ 125°C	Active	RoHS non-compliant
T322E226K035AS	KEMET	22 µF	±10%	35 V	Molded	Through Hole	Axial	-55°C ~ 125°C	Active	RoHS non-compliant
173D226X9035Y	Vishay Sprague	22 µF	±10%	35 V	Molded	Through Hole	Axial	-55°C ~ 125°C	Active	RoHS non-compliant
173D226X9035YE3	Vishay Sprague	22 µF	±10%	35 V	Molded	Through Hole	Axial	-55°C ~ 125°C	Active	ROHS3 Compliant
T322E226K035AT	KEMET	22 µF	±10%	35 V	Molded	Through Hole	Axial	-55°C ~ 125°C	Active	ROHS3 Compliant

Engineering Selection Recommendations

Direct Replacement Priority (Active Status):

The following parts are recommended as primary substitutes due to active product status and full electrical/mechanical compatibility:

T322E226K035AT (KEMET): Active status with ROHS3 compliance. ESR specified at 1.3 Ohm. Highest inventory availability (2818 Pcs). Identical physical dimensions to main part (0.280" Dia x 0.530" L).
173D226X9035YE3 (Vishay Sprague): Active status with ROHS3 compliance. Tape & Box packaging. Suitable for applications requiring RoHS3 certification.

Secondary Substitutes (Active Status, Non-Compliant RoHS):

173D226X9035YW (Vishay Sprague): Active status. Tape & Reel packaging. Slightly longer case (0.550" L vs. 0.530" L). Verify PCB layout clearance before selection.
T322E226K035AS (KEMET): Active status. Bulk packaging. ESR specified at 1.3 Ohm. Identical physical dimensions to main part.
173D226X9035Y (Vishay Sprague): Active status. Tape & Box packaging. Slightly longer case (0.550" L vs. 0.530" L). Verify PCB layout clearance before selection.

Compliance Considerations:

Parts with ROHS3 compliance (T322E226K035AT, 173D226X9035YE3) are preferred for new designs or applications subject to RoHS regulations. Non-compliant alternatives remain suitable for legacy system support and maintenance applications.

Frequently Asked Questions (FAQ)

Q: Can T322E226K035AT replace TAC226K035P07 directly?

A: Yes. T322E226K035AT maintains identical capacitance (22 µF), tolerance (±10%), voltage rating (35 V), mounting type (through hole), and package style (axial). Physical dimensions are identical (0.280" Dia x 0.530" L). Active product status ensures ongoing availability.

Q: What is the difference between 173D226X9035YW and 173D226X9035Y?

A: Both parts are electrically identical (22 µF, ±10%, 35 V, axial, through hole). The primary difference is packaging format: 173D226X9035YW is supplied in Tape & Reel format, while 173D226X9035Y is supplied in Tape & Box format. Physical case length differs slightly (0.550" L vs. standard 0.530" L). Verify PCB layout clearance for the longer case variant.

Q: Are ROHS3-compliant parts (T322E226K035AT, 173D226X9035YE3) electrically equivalent to the non-compliant main part?

A: Yes. RoHS compliance status reflects manufacturing process and material composition, not electrical performance. ROHS3-compliant substitutes maintain identical electrical specifications and are suitable for direct replacement in all applications.

Q: What does the ESR specification mean for KEMET parts?

A: ESR (Equivalent Series Resistance) of 1.3 Ohm is specified for T322E226K035AT and T322E226K035AS. This parameter indicates internal resistance and affects high-frequency performance. The specified ESR value is within acceptable limits for general-purpose tantalum capacitor applications.

Q: Can I use 173D226X9035YW if my PCB has limited space?

A: 173D226X9035YW has a case length of 0.550" L compared to the standard 0.530" L. Verify available PCB clearance before selection. If space is constrained, use T322E226K035AT or T322E226K035AS, which maintain the original 0.530" L dimension.

Q: Which substitute has the highest inventory availability?

A: T322E226K035AT (KEMET) has the highest inventory with 2818 Pcs in stock, followed by 173D226X9035Y (1029 Pcs) and 173D226X9035YW (1055 Pcs).

Q: Are all substitute parts through-hole axial components?

A: Yes. All listed substitutes maintain through-hole axial mounting configuration, ensuring mechanical compatibility with existing PCB designs without layout modifications.
