TA8FL Equivalent & Substitute Parts

Part Overview

The TA8FL is an 8-position circular connector plug with female sockets designed for solder termination. Manufactured by Switchcraft Inc. as part of the Tini Q-G® TA series, this mini XLR connector is classified as obsolete. The TA8FL features a shielded design with metal construction, nickel-plated copper alloy shell, and silver-plated contacts suitable for audio applications. Due to its obsolete status, identifying equivalent substitute parts is necessary for ongoing system maintenance and new design implementations where this connector type is required.

Substiute Parts

TA8FL

Switchcraft Inc.In Stock: 1236TA8FL Datasheet

Current PartRFQ

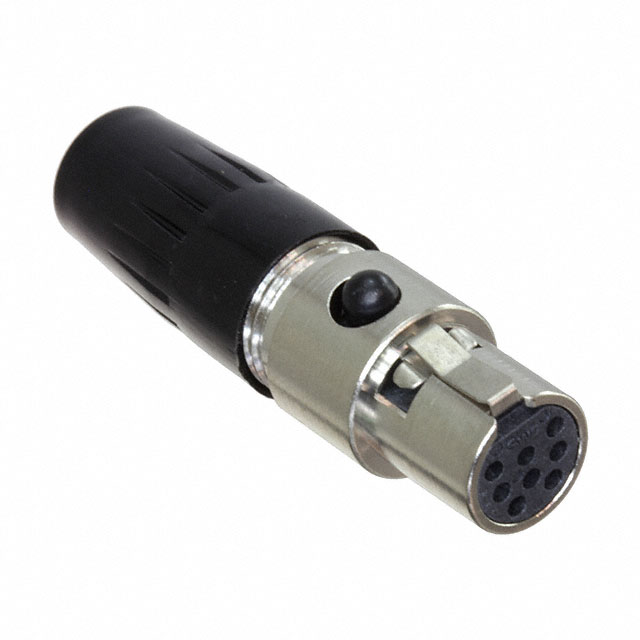

TA8FLX

Switchcraft Inc.In Stock: 1115TA8FLX Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the TA8FL is determined by strict equivalence across the following critical parameters: connector type (plug with female sockets), number of positions (8), shell size (mini XLR), termination method (solder), fastening mechanism (latch lock), orientation (keyed), and shielding configuration (shielded). Electrical specifications including current rating (1.5A) and voltage rating (125VAC) must remain constant. Mechanical compatibility is ensured through identical cable opening dimensions (0.115" ~ 0.250"), operating temperature range (-55°C ~ 85°C), and contact material composition (copper alloy with silver plating). The TA8FLX qualifies as a direct substitute based on complete alignment with all these parameters while offering improved product status and compliance characteristics.

Parameter Comparison

Engineering Selection Recommendations

The TA8FLX is the direct substitute for the TA8FL. Both connectors maintain identical electrical and mechanical specifications, ensuring functional compatibility in audio applications. The primary distinction lies in product status and regulatory compliance. The TA8FL is classified as obsolete, whereas the TA8FLX maintains active product status with ROHS3 compliance. For new designs and ongoing procurement, the TA8FLX is the appropriate selection. For legacy system maintenance where the TA8FL is currently deployed, the TA8FLX provides a compliant replacement without requiring circuit or mechanical redesign.

Frequently Asked Questions (FAQ)

Q: Can the TA8FLX directly replace the TA8FL in existing assemblies?

A: Yes. The TA8FLX is mechanically and electrically identical to the TA8FL. All dimensional specifications, contact configurations, and electrical ratings are equivalent, enabling direct substitution without modification to PCB layouts or cable assemblies.

Q: What is the primary advantage of selecting the TA8FLX over the TA8FL?

A: The TA8FLX is an active product with ROHS3 compliance, whereas the TA8FL is obsolete and RoHS non-compliant. The TA8FLX ensures long-term availability and regulatory alignment for new designs and future procurement cycles.

Q: Are there packaging differences between these connectors?

A: The TA8FL is supplied in standard packaging, while the TA8FLX is supplied in bulk packaging. This distinction affects order quantities and logistics but does not impact connector performance or compatibility.

Q: What cable sizes are compatible with both connectors?

A: Both the TA8FL and TA8FLX accommodate cable openings ranging from 0.115" to 0.250" (2.92mm to 6.35mm), providing flexibility for various cable gauges in audio applications.

Q: Are these connectors suitable for high-temperature environments?

A: Both connectors operate within the temperature range of -55°C to 85°C. Applications requiring operation outside this range require alternative connector selection.
