TA5ML Circular Connector - Equivalent & Substitute Parts

Part Overview

The TA5ML is a 5-position circular connector receptacle with male pins, manufactured by Switchcraft Inc. as part of the Tini Q-G® TA series. This Mini XLR connector is designed for audio applications with solder termination, shielded construction, and free-hanging mounting. The TA5ML is classified as obsolete, making identification of compatible substitute parts essential for ongoing system maintenance and component procurement.

Substiute Parts

TA5ML

Switchcraft Inc.In Stock: 1251TA5ML Datasheet

Current PartRFQ

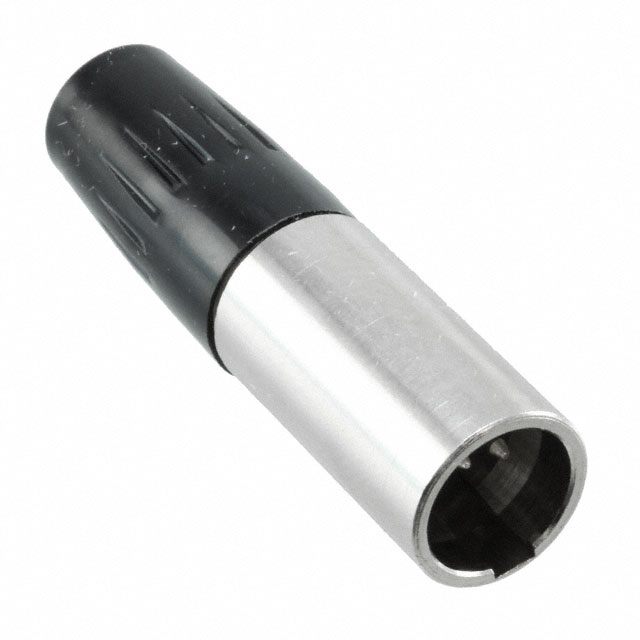

TA5MLX

Switchcraft Inc.In Stock: 837TA5MLX Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution for the TA5ML is determined by strict equivalence across the following critical parameters:

• Connector type and pin configuration (Receptacle, Male Pins, 5-position)
• Shell size and form factor (Mini XLR)
• Termination method (Solder)
• Electrical ratings (4A current, 125VAC voltage)
• Operating temperature range (-55°C ~ 85°C)
• Mechanical fastening (Latch Lock)
• Shielding configuration (Shielded)
• Cable opening dimensions (0.115" ~ 0.190")

The TA5MLX qualifies as a direct substitute based on identical alignment across all these parameters. The primary distinction is product status and compliance certification.

Parameter Comparison

Engineering Selection Recommendations

The TA5MLX is the direct functional equivalent to the TA5ML. Selection between these parts should be based on the following criteria:

TA5ML (Obsolete): Use only when existing inventory is available or when legacy system compatibility requires the original part number. RoHS non-compliance may restrict use in new designs subject to regulatory requirements.

TA5MLX (Active): Recommended for new designs and ongoing procurement. This part maintains identical electrical and mechanical specifications while offering ROHS3 compliance and active product status from the manufacturer. The TA-X series designation indicates an updated production line with current manufacturing support.

Frequently Asked Questions (FAQ)

Q: Can TA5MLX be used as a direct replacement for TA5ML in existing assemblies?

A: Yes. The TA5MLX provides identical connector functionality, pin configuration, electrical ratings, and mechanical form factor. Both parts are 5-position Mini XLR receptacles with solder termination, 4A current rating, and 125VAC voltage rating. Physical and electrical compatibility is complete.

Q: What is the difference between the TA5ML and TA5MLX?

A: The primary differences are product status and regulatory compliance. The TA5ML is obsolete and RoHS non-compliant. The TA5MLX is an active product with ROHS3 compliance, representing an updated version within the Tini Q-G® connector family.

Q: Are there packaging differences between TA5ML and TA5MLX?

A: The TA5ML is supplied in standard packaging, while the TA5MLX is supplied in bulk packaging. This distinction affects procurement and inventory management but does not impact connector performance or compatibility.

Q: What applications are these connectors suitable for?

A: Both the TA5ML and TA5MLX are specified for audio applications. The shielded construction, solder termination, and Mini XLR form factor are standard for professional audio signal transmission.

Q: Are these connectors suitable for high-temperature environments?

A: Both connectors operate across the temperature range of -55°C to 85°C. Applications requiring operation outside this range require alternative connector selection.
