TA3MB Equivalent & Substitute Parts

Part Overview

The TA3MB is a 3-position circular connector receptacle with male pins, manufactured by Switchcraft Inc. as part of the Tini Q-G® TA series. This component is designed for audio applications requiring shielded connections with solder termination. The TA3MB is classified as obsolete, making identification of compatible substitute parts essential for ongoing system maintenance and new design implementations where equivalent functionality is required.

Key Parameters

Parameter	Value
Connector Type	Receptacle, Male Pins
Number of Positions	3
Shell Size - Insert	Mini XLR
Termination	Solder
Fastening Type	Latch Lock
Orientation	Keyed
Current Rating	5A
Voltage Rating	125VAC
Operating Temperature Range	-55°C ~ 85°C
Shielding	Shielded
Cable Opening	0.065" ~ 0.155" (1.65mm ~ 3.94mm)

Substitute Part Grouping Explanation

Substitution eligibility for the TA3MB is determined by strict equivalence across the following critical parameters:

Connector type and pin configuration (Receptacle, Male Pins, 3-position)
Shell size and insert type (Mini XLR)
Termination method (Solder)
Fastening mechanism (Latch Lock)
Keyed orientation for polarization
Electrical ratings (5A current, 125VAC voltage)
Operating temperature range (-55°C ~ 85°C)
Shielding requirement (Shielded)
Cable opening dimensions (0.065" ~ 0.155")

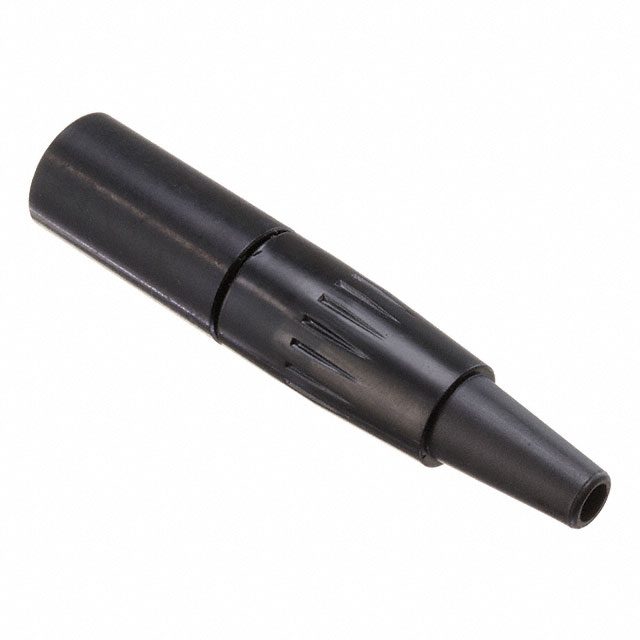

The TA3MBX meets all these criteria and is therefore a direct substitute for the TA3MB.

Parameter Comparison

Parameter	TA3MB	TA3MBX
Manufacturer	Switchcraft Inc.	Switchcraft Inc.
Category	Circular Connectors	Circular Connectors
Series	Tini Q-G® TA	Tini Q-G® TA-X
Product Status	Obsolete	Active
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Number of Positions	3	3
Shell Size - Insert	Mini XLR	Mini XLR
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Termination	Solder	Solder
Fastening Type	Latch Lock	Latch Lock
Orientation	Keyed	Keyed
Shell Material	Copper Alloy	Copper Alloy
Shell Finish	Chrome	Chrome
Contact Finish - Mating	Silver	Silver
Color	Black	Black
Material Flammability Rating	UL94 V-0	UL94 V-0
Features	Backshell, Cable Clamp, Strain Relief	Backshell, Cable Clamp, Strain Relief
Shielding	Shielded	Shielded
Current Rating (Amps)	5A	5A
Voltage Rating	125VAC	125VAC
Cable Opening	0.065" ~ 0.155" (1.65mm ~ 3.94mm)	0.065" ~ 0.155" (1.65mm ~ 3.94mm)
Operating Temperature	-55°C ~ 85°C	-55°C ~ 85°C
Backshell Material, Plating	Thermoplastic	Thermoplastic
Contact Material	Copper Alloy	Copper Alloy
Insert Material	Polyphenylene Sulfide (PPS)	Polyphenylene Sulfide (PPS)
Applications	Audio	Audio
RoHS Status	RoHS non-compliant	ROHS3 Compliant
REACH Status	REACH Unaffected	REACH Unaffected
ECCN	EAR99	EAR99
HTSUS	8536.69.4020	8536.69.4020

Engineering Selection Recommendations

The TA3MBX is the direct substitute for the TA3MB. Both components share identical electrical, mechanical, and functional specifications across all critical parameters. The primary distinction is product status: the TA3MB is obsolete while the TA3MBX is active and currently manufactured.

For new designs and ongoing production requiring Mini XLR 3-position male pin receptacles with solder termination, the TA3MBX is the appropriate selection. The TA3MBX offers the additional advantage of ROHS3 compliance, whereas the TA3MB is RoHS non-compliant. Both components maintain equivalent performance in audio applications within the specified operating temperature and electrical rating parameters.

Frequently Asked Questions (FAQ)

Q: Can the TA3MBX directly replace the TA3MB in existing assemblies?

A: Yes. The TA3MBX is a direct substitute with identical connector type, pin configuration, shell size, termination method, and electrical ratings. Physical dimensions and mating characteristics are equivalent.

Q: What is the primary reason to transition from TA3MB to TA3MBX?

A: The TA3MB is classified as obsolete. The TA3MBX is the active equivalent from Switchcraft Inc., ensuring continued availability and supply chain reliability. Additionally, the TA3MBX meets ROHS3 compliance requirements.

Q: Are there packaging differences between these parts?

A: The TA3MB packaging is listed as unspecified, while the TA3MBX is supplied in bulk packaging. This distinction does not affect functional compatibility or performance.

Q: Do both parts support the same cable opening dimensions?

A: Yes. Both the TA3MB and TA3MBX accommodate cable openings of 0.065" ~ 0.155" (1.65mm ~ 3.94mm).

Q: Are the operating temperature ranges identical?

A: Yes. Both components operate across the range of -55°C ~ 85°C.

Q: What are the electrical specifications for both parts?

A: Both the TA3MB and TA3MBX are rated for 5A current and 125VAC voltage, with shielded construction suitable for audio applications.
