T5009-6031SSM Equivalent & Substitute Parts

Part Overview

The T5009-6031SSM is a snap action switch manufactured by Omron Automation and Safety, configured as a 3NC/1NO (three normally closed, one normally open) circuit device. This component is classified as obsolete, making identification of functionally equivalent alternatives essential for ongoing system maintenance and new design implementations. The switch operates within the T5009-6 series and carries unlimited moisture sensitivity rating (MSL 1), indicating suitability for standard industrial environments without special handling requirements.

Substiute Parts

T5009-6031SSM

Omron Automation and SafetyIn Stock: 884T5009-6031SSM Datasheet

Current PartRFQ

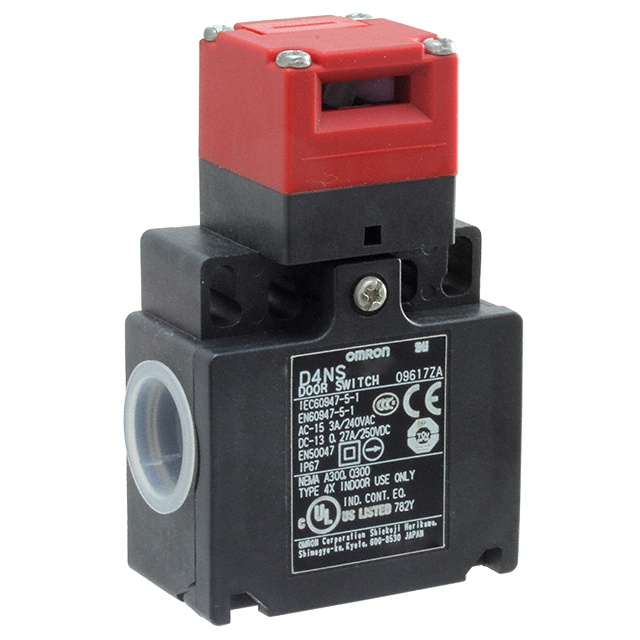

D4NS-8CF

Omron Automation and SafetyIn Stock: 913D4NS-8CF Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The D4NS-8CF has been identified as a functionally equivalent substitute based on the following criteria:

Common Electrical Characteristics:

• Both devices are manufactured by Omron Automation and Safety
• Both operate within the same HTSUS commodity classification (8536.50.9065)
• Both carry identical ECCN designation (EAR99)
• Both maintain MSL 1 rating (unlimited moisture sensitivity)

Circuit Configuration Compatibility: The T5009-6031SSM operates as a 3NC/1NO switch. The D4NS-8CF provides a 3PST-2NC/1NO configuration, delivering the required contact arrangement for equivalent circuit functionality in applications requiring three normally closed and one normally open contact set.

Substitution Logic: Substitution is valid where the application requires snap action switching with the specified contact configuration and does not impose constraints beyond the electrical and environmental parameters provided. The D4NS-8CF maintains active product status, ensuring continued availability and supply chain reliability.

Parameter Comparison

Engineering Selection Recommendations

For Obsolete Component Replacement: The D4NS-8CF is the designated substitute for T5009-6031SSM applications. Both components share identical regulatory classification (ECCN EAR99, HTSUS 8536.50.9065) and moisture sensitivity rating, ensuring compliance continuity in regulated environments.

For New Designs: The D4NS-8CF is recommended as the primary selection. Active product status ensures supply chain continuity, technical support availability, and compliance with current regulatory standards (ROHS3, REACH Unaffected).

Compliance Considerations: The D4NS-8CF carries certifications including CCC, CE, cULus, and TUV approval, providing broader regulatory acceptance across international markets compared to the obsolete T5009-6031SSM.

Frequently Asked Questions (FAQ)

Q: Can D4NS-8CF directly replace T5009-6031SSM in existing installations?

A: Yes, where the application operates within the D4NS-8CF electrical specifications (3A AC, 240VAC). The circuit configuration (3PST-2NC/1NO) provides the required contact arrangement. Physical mounting and termination compatibility must be verified for the specific installation.

Q: What is the primary reason for substitution?

A: The T5009-6031SSM is classified as obsolete. The D4NS-8CF provides equivalent functionality with active product status, ensuring continued availability and supply reliability.

Q: Are there environmental or compliance differences?

A: Both components maintain MSL 1 rating and identical ECCN/HTSUS classification. The D4NS-8CF provides additional environmental protection (IP67 rating) and current regulatory compliance (ROHS3, REACH Unaffected), making it suitable for modern industrial applications.

Q: What packaging options are available?

A: The T5009-6031SSM is available in standard packaging. The D4NS-8CF is supplied in bulk packaging format.

Q: Are there electrical parameter differences to consider?

A: The D4NS-8CF specifies 3A AC current rating at 240VAC with operating temperature range -30°C to 70°C. The T5009-6031SSM does not provide these specifications in available documentation. Applications must verify compatibility with these parameters.
