Equivalent & Substitute Parts for T4012-011SM-SC1

Part Overview

The T4012-011SM-SC1 is a non-locking interlock switch manufactured by Omron Automation and Safety, classified as a DPST (Double Pole Single Throw) switch with dual NO/NC circuits. This component is designed for panel disconnect applications with a 4A rating at 230VAC or 24VDC. The product is currently obsolete, making identification of functionally equivalent alternatives necessary for ongoing maintenance, repair, and system continuity in industrial control applications.

Substiute Parts

T4012-011SM-SC1

Omron Automation and SafetyIn Stock: 948T4012-011SM-SC1 Datasheet

Current PartRFQ

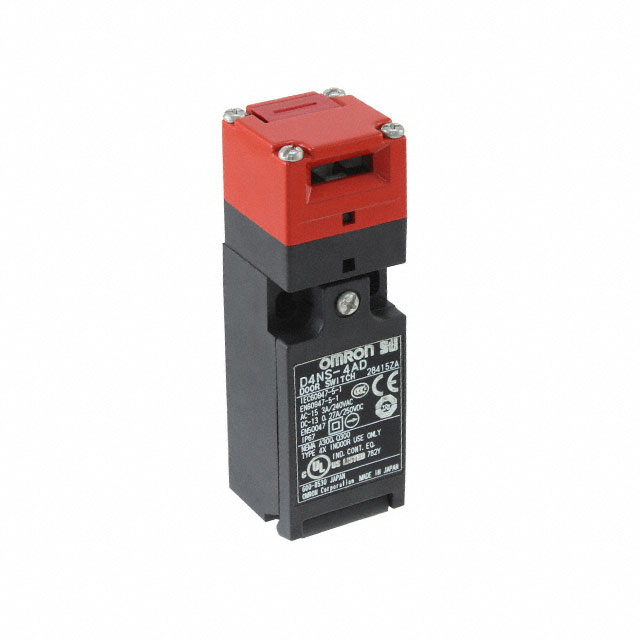

D4NS-4AD

Omron Automation and SafetyIn Stock: 1079D4NS-4AD Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The D4NS-4AD qualifies as a functional substitute based on the following alignment of critical parameters:

Matching Parameters:

• Manufacturer: Omron Automation and Safety (same manufacturer ensures design compatibility)
• Type: Non-Locking (identical switching behavior)
• Circuit Configuration: DPST-NO/NC (same electrical circuit topology)
• Actuator Type: Panel Disconnect (identical mechanical interface)
• Termination Style: Screw Terminal (compatible connection method)
• Conduit Thread Size: M20 (compatible mounting interface)
• Ingress Protection: IP67 (equivalent environmental sealing)
• Moisture Sensitivity Level: 1 (Unlimited) (identical handling requirements)

Allowable Parameter Variations:

• Current Rating: D4NS-4AD rated at 3A (AC) versus T4012-011SM-SC1 at 4A (AC/DC). The substitute operates at reduced current capacity, suitable for applications not requiring the full 4A rating.
• Voltage Rating: D4NS-4AD rated at 240VAC versus T4012-011SM-SC1 at 230VAC and 24VDC. The 240VAC rating accommodates standard AC mains; DC applications require verification of circuit requirements.
• Holding Force: D4NS-4AD at 6kgf versus T4012-011SM-SC1 at 3kgf. The increased holding force provides enhanced mechanical stability.
• Operating Temperature Range: D4NS-4AD operates -30°C ~ 70°C versus T4012-011SM-SC1 at -20°C ~ 80°C. Temperature range differences require application-specific assessment.
• Product Status: D4NS-4AD is Active (current production), ensuring availability and ongoing support.

Parameter Comparison

Engineering Selection Recommendations

The D4NS-4AD is an active production substitute for the obsolete T4012-011SM-SC1. Selection of this substitute is based on functional equivalence in circuit topology, mechanical interface, and environmental protection rating.

Compliance Considerations: The D4NS-4AD carries expanded approval agency certifications (CCC, CE, cULus, TUV) compared to the original part (CE, cULus), providing broader regulatory compliance for international applications.

Application-Specific Verification Required:

• Current Rating: Confirm that application current requirements do not exceed 3A (AC). If 4A DC operation is required, this substitute is not suitable.
• Voltage Supply: Verify that the application operates on 240VAC or lower. If 24VDC operation is mandatory, alternative substitutes must be evaluated.
• Temperature Extremes: Assess whether the application operates within the D4NS-4AD temperature range of -30°C ~ 70°C. If sustained operation above 70°C is required, this substitute may not be appropriate.
• Mechanical Interface: Confirm that M20 conduit thread compatibility is acceptable; the original part specifies M20 x3 (metric pitch), while the substitute specifies M20 (standard metric).

Frequently Asked Questions (FAQ)

Q: Can the D4NS-4AD directly replace the T4012-011SM-SC1 in all applications?

A: The D4NS-4AD is functionally equivalent for panel disconnect applications using DPST-NO/NC switching at 240VAC and currents not exceeding 3A. Applications requiring 4A capacity, 24VDC operation, or sustained temperatures above 70°C require alternative evaluation.

Q: What is the significance of the current rating difference (4A vs. 3A)?

A: The T4012-011SM-SC1 is rated for 4A at both AC and DC. The D4NS-4AD is rated for 3A AC only. If the application circuit draws current exceeding 3A, the substitute will not provide adequate contact capacity and may result in contact degradation or failure.

Q: Are the screw terminal connections compatible?

A: Both parts use screw terminal termination style, ensuring mechanical and electrical compatibility at the connection interface. Wire gauge and torque specifications should be verified in the respective component datasheets.

Q: How do the conduit thread specifications differ?

A: The T4012-011SM-SC1 specifies M20 x3 (metric thread with 3mm pitch), while the D4NS-4AD specifies M20 (standard metric thread with 2.5mm pitch). Verify that the mounting panel or conduit accommodates the substitute's thread specification.

Q: What is the impact of the operating temperature range difference?

A: The T4012-011SM-SC1 operates from -20°C to 80°C, while the D4NS-4AD operates from -30°C to 70°C. If the application requires sustained operation above 70°C, the substitute may not be suitable. Extended low-temperature operation (below -20°C) is supported by the substitute.

Q: Does the higher holding force of the D4NS-4AD (6kgf vs. 3kgf) affect compatibility?

A: The increased holding force provides enhanced mechanical stability and does not negatively impact compatibility. This characteristic may be beneficial in applications subject to vibration or mechanical shock.

Q: Are there packaging differences between these parts?

A: The T4012-011SM-SC1 is packaged individually (indicated by "-"), while the D4NS-4AD is supplied in bulk packaging. This affects procurement and inventory management but does not impact functional performance.
