T1M-10-F-SV-L-P Equivalent & Substitute Parts

Part Overview

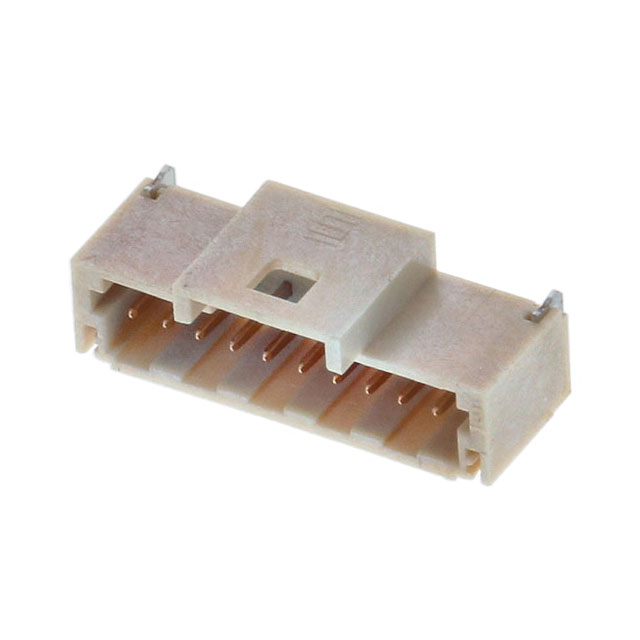

The T1M-10-F-SV-L-P is a surface mount rectangular connector header manufactured by Samtec Inc. as part of the Micro Mate™ T1M series. This 10-position, single-row connector operates at 1.00mm pitch and is designed for board-to-cable/wire applications with solder termination. The part is currently active in production with 1743 units in stock. Substitute parts are identified when equivalent electrical and mechanical parameters align with application requirements, enabling component procurement flexibility and supply chain continuity.

Substiute Parts

T1M-10-F-SV-L-P

Samtec Inc.In Stock: 1823T1M-10-F-SV-L-P Datasheet

Current PartRFQ

T1M-10-GF-S-V-K-TR

Samtec Inc.In Stock: 1970T1M-10-GF-S-V-K-TR Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the T1M-10-F-SV-L-P is determined by strict alignment of core electrical and mechanical parameters. The following criteria establish substitution validity:

Critical Parameters for Substitution:

• Connector Type: Header
• Contact Type: Male Pin
• Number of Positions: 10
• Number of Rows: 1
• Pitch - Mating: 0.039" (1.00mm)
• Mounting Type: Surface Mount
• Termination: Solder
• Shrouding: Shrouded - 4 Wall
• Current Rating: 3.3A per Contact
• Voltage Rating: 250VAC, 353VDC
• Operating Temperature: -55°C ~ 85°C
• Contact Material: Phosphor Bronze
• Contact Finish - Mating: Gold
• Contact Finish - Post: Tin
• Insulation Material: Liquid Crystal Polymer (LCP)
• Flammability Rating: UL94 V-0
• RoHS Status: ROHS3 Compliant
• Moisture Sensitivity Level: 1 (Unlimited)
• Series: Micro Mate™ T1M
• Packaging: Tape & Reel (TR)

The substitute part T1M-10-GF-S-V-K-TR maintains all critical electrical and mechanical parameters. Variations in insulation height and insulation color do not affect functional substitution within the specified application envelope.

Parameter Comparison

Engineering Selection Recommendations

Both T1M-10-F-SV-L-P and T1M-10-GF-S-V-K-TR are active production parts from Samtec Inc. with identical electrical ratings, mechanical interfaces, and compliance certifications. Selection between these parts is based on physical envelope requirements and visual identification needs.

The T1M-10-F-SV-L-P features an insulation height of 0.217" (5.51mm) with natural-colored insulation. The T1M-10-GF-S-V-K-TR provides a reduced insulation height of 0.167" (4.25mm) with black insulation. Both parts maintain ROHS3 compliance, UL94 V-0 flammability rating, and identical electrical performance across the specified operating temperature range of -55°C to 85°C.

Selection should be determined by available board space and PCB layout constraints. The lower profile variant (T1M-10-GF-S-V-K-TR) is suitable for space-constrained applications, while the standard profile variant (T1M-10-F-SV-L-P) accommodates conventional board designs. Both parts are suitable for high-volume production with pick-and-place assembly compatibility.

Frequently Asked Questions (FAQ)

Q: Can T1M-10-GF-S-V-K-TR be used as a direct replacement for T1M-10-F-SV-L-P?

A: Yes, within applications where the reduced insulation height of 0.167" (4.25mm) does not conflict with PCB layout or mechanical constraints. All electrical parameters, contact ratings, and compliance certifications are identical.

Q: What is the primary difference between these two connector variants?

A: The main differences are insulation height (0.217" versus 0.167") and insulation color (natural versus black). These are physical characteristics that do not affect electrical performance or contact reliability.

Q: Are both parts suitable for automated assembly?

A: Yes. Both T1M-10-F-SV-L-P and T1M-10-GF-S-V-K-TR feature pick-and-place compatibility and are supplied in Tape & Reel packaging for high-volume production environments.

Q: Do these connectors meet RoHS requirements?

A: Yes. Both parts are ROHS3 compliant and carry UL94 V-0 flammability certification, meeting regulatory requirements for commercial and industrial applications.

Q: What is the current-carrying capacity per contact?

A: Both connectors are rated for 3.3A per contact at the specified voltage ratings of 250VAC and 353VDC.

Q: Are there any temperature limitations for these connectors?

A: Both parts operate across the identical temperature range of -55°C to 85°C, with no derating required within this envelope.

Q: What is the moisture sensitivity level for these parts?

A: Both connectors carry MSL 1 (Unlimited), indicating no moisture sensitivity restrictions for storage or handling.
