T1M-05-F-SV-L Equivalent & Substitute Parts

Part Overview

The T1M-05-F-SV-L is a surface mount rectangular connector header manufactured by Samtec Inc. in the Micro Mate™ T1M series. This 5-position, 1mm pitch connector is designed for board-to-cable/wire applications with shrouded 4-wall construction and solder termination. The part is currently active in production with full inventory availability. Equivalent and substitute parts are identified to support procurement flexibility, inventory management, and design alternatives within the same connector family.

Substiute Parts

T1M-05-F-SV-L

Samtec Inc.In Stock: 1820T1M-05-F-SV-L Datasheet

Current PartRFQ

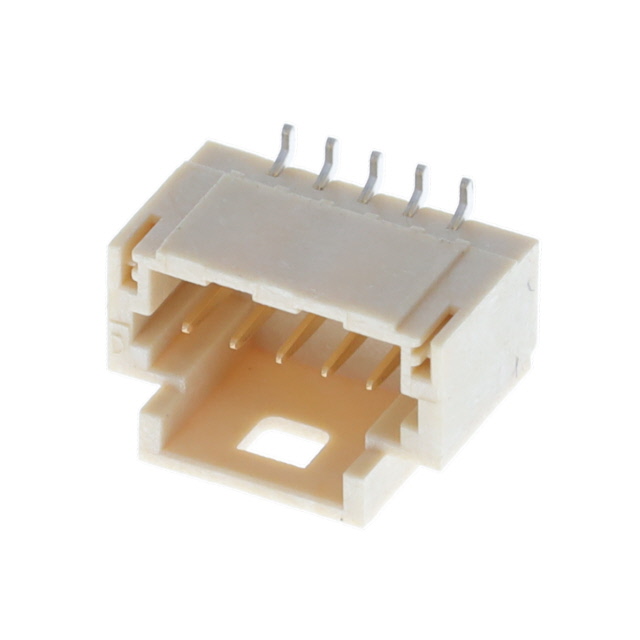

T1M-05-F-SV-L-P

Samtec Inc.In Stock: 2090T1M-05-F-SV-L-P Datasheet

SimilarRFQ

T1M-05-GF-S-V-K-TR

Samtec Inc.In Stock: 6765T1M-05-GF-S-V-K-TR Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the T1M-05-F-SV-L is determined by the following critical parameters that must remain constant across all equivalent parts:

• Connector Type: Header
• Number of Positions: 5
• Pitch - Mating: 0.039" (1.00mm)
• Mounting Type: Surface Mount
• Termination: Solder
• Current Rating: 3.3A per Contact
• Voltage Rating: 250VAC, 353VDC
• Operating Temperature: -55°C ~ 85°C
• Series: Micro Mate™ T1M
• RoHS Status: ROHS3 Compliant

The identified substitute parts T1M-05-F-SV-L-P and T1M-05-GF-S-V-K-TR maintain all critical electrical and mechanical parameters. Variations in insulation height, insulation color, and pick-and-place features do not affect functional compatibility for standard board-to-cable/wire applications.

Parameter Comparison

Engineering Selection Recommendations

All three parts—T1M-05-F-SV-L, T1M-05-F-SV-L-P, and T1M-05-GF-S-V-K-TR—are active production parts with ROHS3 compliance and UL94 V-0 flammability certification. Selection between these parts is based on specific design requirements:

T1M-05-F-SV-L is the baseline configuration with 0.217" (5.51mm) insulation height and natural insulation color.

T1M-05-F-SV-L-P is functionally identical to the main part with the addition of pick-and-place feature support, maintaining the same 0.217" (5.51mm) insulation height and natural color.

T1M-05-GF-S-V-K-TR features a reduced insulation height of 0.167" (4.25mm) with black insulation color and pick-and-place capability. This variant is suitable for space-constrained applications requiring lower profile connectors.

All parts maintain identical electrical ratings, operating temperature range, and contact specifications. Selection should be based on available inventory, space constraints, and assembly process requirements.

Frequently Asked Questions (FAQ)

Q: Can T1M-05-F-SV-L-P be used as a direct replacement for T1M-05-F-SV-L?

A: Yes. Both parts share identical electrical specifications, pitch, position count, mounting type, and termination method. The addition of pick-and-place features in the -P variant does not affect functional compatibility.

Q: What is the primary difference between T1M-05-GF-S-V-K-TR and the other two parts?

A: T1M-05-GF-S-V-K-TR has a reduced insulation height of 0.167" (4.25mm) compared to 0.217" (5.51mm) in the other variants, and features black insulation color instead of natural. All electrical and contact specifications remain identical.

Q: Are all three parts RoHS compliant?

A: Yes. All three parts are ROHS3 compliant with UL94 V-0 flammability rating and MSL 1 (Unlimited) moisture sensitivity level.

Q: What is the current and voltage rating for these connectors?

A: All three parts are rated for 3.3A per contact with voltage ratings of 250VAC and 353VDC.

Q: Which part should be selected for space-constrained PCB designs?

A: T1M-05-GF-S-V-K-TR is recommended for applications requiring lower profile connectors due to its 0.167" (4.25mm) insulation height.

Q: Are these parts suitable for high-temperature applications?

A: All three parts operate within the temperature range of -55°C to 85°C. Applications requiring operation outside this range require alternative connector selection.

Q: What is the pitch specification for these connectors?

A: All three parts feature a 0.039" (1.00mm) mating pitch, which is the standard spacing for the Micro Mate™ T1M series.
