T1144 Equivalent & Substitute Parts

Part Overview

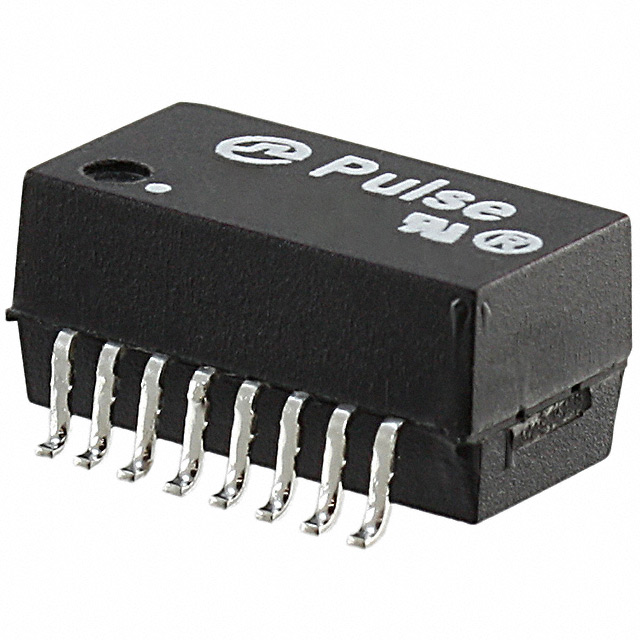

The Pulse Electronics T1144 is a telecommunications transformer designed for T1/E1 dual applications. This component features 1mH inductance on both primary and secondary windings with a turns ratio configuration of 1CT:1CT and 1CT:2.4CT, optimized for surface mount integration in telecom signal conditioning circuits.

The T1144 carries an obsolete product status, making identification of compatible alternatives essential for ongoing system support and new design implementations. The substitute part T1144NL provides functional equivalence while maintaining active product availability and improved compliance posture.

Substiute Parts

T1144

Pulse ElectronicsIn Stock: 1101T1144 Datasheet

Current PartRFQ

T1144NL

Pulse ElectronicsIn Stock: 1438T1144NL Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The T1144NL qualifies as a direct substitute for the T1144 based on strict equivalence of the following critical parameters:

• Transformer Type: Both are T1/E1 (Dual) configurations
• Inductance: Identical 1mH, 1mH specification on primary and secondary windings
• Turns Ratio: Matching 1CT:1CT and 1CT:2.4CT configuration
• Mounting Type: Both are surface mount packages
• Moisture Sensitivity Level: Identical MSL 3 (168 Hours) rating
• REACH Status: Both are REACH Unaffected
• ECCN Classification: Both classified as EAR99
• HTSUS Code: Both use 8504.31.2000

The T1144NL differs only in packaging format (Tube versus unspecified for T1144), physical dimensions within tolerance (0.500" L vs 0.505" L), and product status (Active versus Obsolete), with the critical advantage of RoHS3 compliance.

Parameter Comparison

Engineering Selection Recommendations

The T1144NL is the appropriate selection for new designs and ongoing support applications. The substitute maintains full electrical and mechanical compatibility with the original T1144 while offering the following advantages:

• Active product status ensures continued availability and supply chain reliability
• RoHS3 compliance satisfies modern regulatory requirements for electronic components in regulated markets
• Identical electrical specifications (inductance, turns ratio, transformer type) guarantee functional interchangeability in T1/E1 telecommunications applications
• Marginal dimensional variation (0.005" length difference) remains within standard PCB layout tolerances for surface mount components

For legacy systems currently using T1144 components, the T1144NL provides a direct replacement path without circuit redesign or performance degradation.

Frequently Asked Questions (FAQ)

Q: Can T1144NL be used as a direct replacement for T1144 in existing designs?

A: Yes. The T1144NL maintains identical electrical specifications (1mH inductance, 1CT:1CT and 1CT:2.4CT turns ratios) and mechanical compatibility (surface mount, identical height and width). The 0.005" length difference is within standard PCB layout tolerances.

Q: What is the primary reason to transition from T1144 to T1144NL?

A: The T1144 is obsolete with limited inventory availability. The T1144NL is an active product from the same manufacturer with identical electrical performance and improved RoHS3 compliance status.

Q: Are there packaging differences between these parts?

A: The T1144NL is supplied in Tube packaging, while the original T1144 packaging format is not specified. Both parts are surface mount components with identical footprints and mounting characteristics.

Q: Does the RoHS3 compliance of T1144NL affect circuit performance?

A: No. RoHS3 compliance indicates material composition standards and does not alter electrical or mechanical performance. The transformer specifications remain identical.

Q: What is the MSL rating and why is it important?

A: Both parts carry MSL 3 (168 Hours), indicating moisture sensitivity during storage and handling. Components must be stored in controlled humidity environments and baked according to IPC standards before reflow soldering.

Q: Are there any dimensional constraints for PCB layout?

A: The T1144NL dimensions are 0.500" L x 0.280" W x 0.245" H (max seated height). The 0.005" length reduction compared to T1144 provides additional PCB layout flexibility without requiring design modifications.
