SZX-SMB-08 Relay Socket Equivalent & Substitute Parts

Part Overview

The SZX-SMB-08 is an 8-position panel mount relay socket manufactured by Honeywell Sensing and Productivity Solutions, designed for use with SZR-MY series relays. This component features solder lug termination and is classified as obsolete. Due to its obsolete product status, identifying equivalent and substitute parts is necessary to maintain system functionality and ensure continued availability for maintenance and new designs. The substitute part identified maintains functional compatibility through matching electrical and mechanical parameters.

Substiute Parts

SZX-SMB-08

Honeywell Sensing and Productivity SolutionsIn Stock: 821SZX-SMB-08 Datasheet

Current PartRFQ

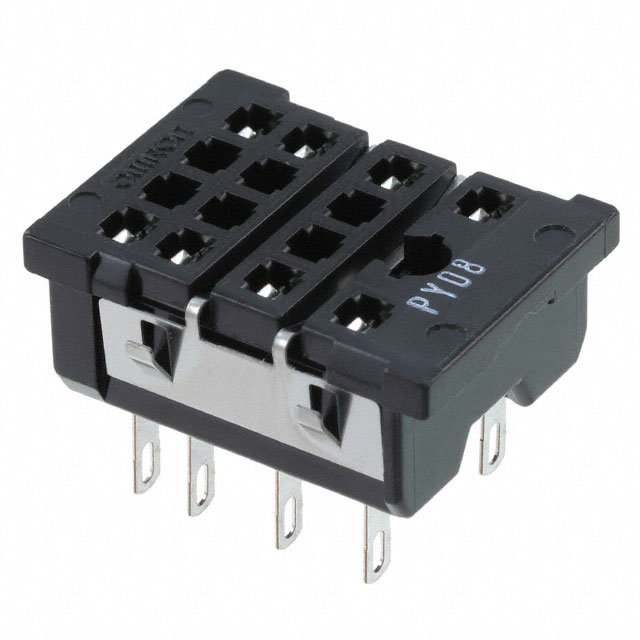

PY08

Omron Automation and SafetyIn Stock: 1117PY08 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the SZX-SMB-08 is determined by strict alignment of the following parameters:

Critical Matching Parameters:

• Number of Positions: 8
• Mounting Type: Panel Mount
• Termination Style: Solder Lug
• Type: Socket
• Moisture Sensitivity Level: 1 (Unlimited)

Compliance Parameters:

• RoHS Status: Compliant (both main and substitute meet environmental standards)
• ECCN Classification: EAR99 (export control alignment)

The substitute part PY08 satisfies all critical parameters, enabling direct functional replacement in applications originally designed for the SZX-SMB-08. Both parts are classified as 8-position panel mount solder lug sockets with identical moisture sensitivity ratings, ensuring compatibility in equivalent operating environments.

Parameter Comparison

Engineering Selection Recommendations

Primary Substitute: PY08 (Omron Automation and Safety)

The PY08 is the qualified substitute for the SZX-SMB-08 based on the following engineering criteria:

1. Functional Equivalence: All critical electrical and mechanical parameters match exactly, including 8-position configuration, panel mount installation, and solder lug termination.

2. Compliance Status: The PY08 maintains RoHS3 compliance, which exceeds the RoHS compliance requirement of the original part, ensuring regulatory alignment for current and future applications.

3. Product Availability: The PY08 is classified as Active, providing assured long-term availability and supply chain continuity compared to the obsolete SZX-SMB-08.

4. Environmental Compatibility: Both parts share identical Moisture Sensitivity Level (MSL 1 - Unlimited), confirming equivalent handling, storage, and operational environmental requirements.

5. Export Classification: Both parts carry EAR99 classification, maintaining consistent export control compliance.

The PY08 is suitable for direct replacement in new designs and maintenance applications where the SZX-SMB-08 was originally specified.

Frequently Asked Questions (FAQ)

Q: Can the PY08 be used as a direct replacement for the SZX-SMB-08 in existing assemblies?

A: Yes. The PY08 matches all critical parameters: 8-position count, panel mount configuration, solder lug termination, and MSL 1 rating. Physical and electrical compatibility is confirmed.

Q: What is the difference between RoHS and ROHS3 compliance?

A: ROHS3 represents the current iteration of the RoHS Directive with updated substance restrictions. ROHS3 compliance is a superset of RoHS compliance, meaning the PY08 meets or exceeds the environmental standards of the SZX-SMB-08.

Q: Why is the SZX-SMB-08 classified as obsolete?

A: Obsolete status indicates the manufacturer has discontinued production. The PY08 provides functional continuity for applications requiring 8-position panel mount relay sockets.

Q: Are there packaging differences between the SZX-SMB-08 and PY08?

A: The SZX-SMB-08 is packaged with a dash designation (not specified), while the PY08 is supplied in Bulk packaging. Both are suitable for solder lug termination applications; packaging selection depends on order quantity and assembly requirements.

Q: What relay series is the PY08 compatible with?

A: The PY08 is designed for use with MY2 relays. Verify relay compatibility with your specific application requirements.

Q: Do both parts have the same HTSUS classification?

A: The parts have similar but distinct HTSUS codes: SZX-SMB-08 is 8536.69.4040, and PY08 is 8536.69.4030. Both fall within the same product category for tariff purposes.
