SZX-SLB-14P Equivalent & Substitute Parts

Part Overview

The SZX-SLB-14P is a 14-position through-hole relay socket manufactured by Honeywell Sensing and Productivity Solutions, designed for use with the SZR-LY series relays. This component functions as an interface between relay modules and printed circuit boards, providing mechanical and electrical connectivity through PC pin termination.

The SZX-SLB-14P is classified as obsolete. Identifying equivalent substitute parts is necessary to maintain design continuity, ensure procurement availability, and support ongoing production or maintenance requirements for systems utilizing this socket configuration.

Substiute Parts

SZX-SLB-14P

Honeywell Sensing and Productivity SolutionsIn Stock: 895SZX-SLB-14P Datasheet

Current PartRFQ

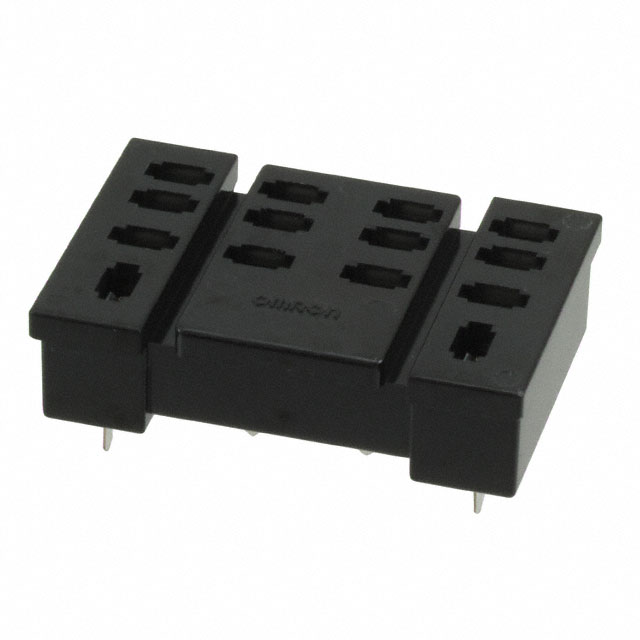

PT14-0

Omron Automation and SafetyIn Stock: 965PT14-0 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the SZX-SLB-14P are identified based on strict electrical and mechanical parameter alignment. The following criteria determine substitution eligibility:

Critical Matching Parameters:

• Number of Positions: 14
• Mounting Type: Through Hole
• Termination Style: PC Pin
• Socket Type: Relay Socket
• Series Compatibility: LY series relay compatibility

The PT14-0 manufactured by Omron Automation and Safety meets all critical parameters required for functional equivalence with the SZX-SLB-14P. Both components are designed for 14-position relay socket applications with identical mounting and termination specifications.

Parameter Comparison

Engineering Selection Recommendations

PT14-0 as Primary Substitute:

The PT14-0 is the appropriate substitute for the obsolete SZX-SLB-14P based on the following engineering criteria:

1. Functional Equivalence: Both components share identical electrical and mechanical specifications across all critical parameters: 14-position configuration, through-hole mounting, and PC pin termination.

2. Product Status: The PT14-0 maintains active product status with current manufacturing support, addressing the obsolescence of the SZX-SLB-14P.

3. Regulatory Compliance: Both components meet RoHS requirements (RoHS Compliant and ROHS3 Compliant respectively) and share identical ECCN and HTSUS classifications, ensuring regulatory continuity.

4. Environmental Specifications: Identical MSL rating (1 - Unlimited) confirms equivalent environmental performance characteristics.

5. Series Compatibility: The PT14-0 is designed for LY series relay compatibility, which aligns with the SZR-LY series application of the original component.

Frequently Asked Questions (FAQ)

Q: What makes the PT14-0 a suitable substitute for the SZX-SLB-14P?

A: The PT14-0 matches all critical electrical and mechanical parameters: 14-position socket configuration, through-hole mounting type, PC pin termination style, and LY series relay compatibility. Both components share identical environmental ratings and regulatory compliance classifications.

Q: Are there any differences in packaging between these components?

A: The SZX-SLB-14P is packaged in standard format, while the PT14-0 is supplied in bulk packaging. Packaging differences do not affect functional performance or electrical characteristics.

Q: Why is the SZX-SLB-14P classified as obsolete?

A: The SZX-SLB-14P has reached end-of-life status with Honeywell. The PT14-0 provides functional continuity for new designs and ongoing production requirements.

Q: Can the PT14-0 be used in existing designs originally specified for the SZX-SLB-14P?

A: Yes. The PT14-0 is electrically and mechanically equivalent across all specified parameters, making it suitable for direct substitution in applications designed for the SZX-SLB-14P.

Q: What is the significance of the MSL rating for these components?

A: Both components carry MSL 1 (Unlimited), indicating they are not moisture-sensitive and require no special handling or storage conditions during manufacturing or assembly processes.

Q: Are there any compliance considerations when substituting these parts?

A: Both components are RoHS compliant and share identical ECCN and HTSUS classifications, ensuring no compliance barriers to substitution in regulated applications.
