SZX-SLB-08P Equivalent & Substitute Parts

Part Overview

The SZX-SLB-08P is an 8-position through-hole relay socket manufactured by Honeywell Sensing and Productivity Solutions, designed for use with the SZR-LY series relays. This component is classified as obsolete, necessitating identification of active equivalent parts to maintain design continuity and ensure ongoing component availability for new production and field service applications.

Substiute Parts

SZX-SLB-08P

Honeywell Sensing and Productivity SolutionsIn Stock: 954SZX-SLB-08P Datasheet

Current PartRFQ

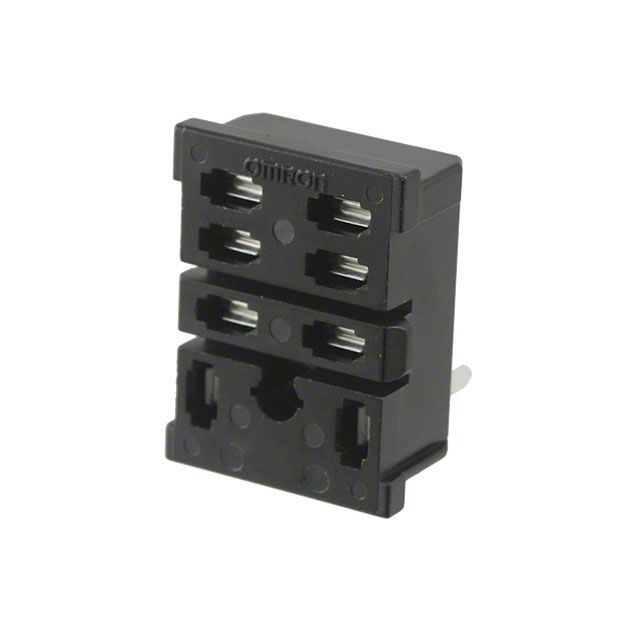

PT08-0

Omron Automation and SafetyIn Stock: 3960PT08-0 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the SZX-SLB-08P is determined by strict equivalence across the following critical parameters:

• Number of Positions: 8-position configuration
• Mounting Type: Through-hole PCB mounting
• Termination Style: PC pin termination
• Socket Type: Relay socket for LY series relays
• Regulatory Compliance: RoHS compliance and EAR99 export classification
• Moisture Sensitivity: MSL 1 rating (unlimited shelf life)

The PT08-0 manufactured by Omron Automation and Safety meets all specified parameters and qualifies as a direct substitute for the obsolete SZX-SLB-08P.

Parameter Comparison

Engineering Selection Recommendations

The PT08-0 is the qualified substitute for the SZX-SLB-08P based on the following engineering criteria:

Compliance Alignment: Both components maintain identical ECCN (EAR99) and HTSUS (8536.69.4040) classifications, ensuring regulatory consistency in procurement and export documentation.

RoHS Compliance: The PT08-0 exceeds the original RoHS compliance requirement with ROHS3 certification, providing enhanced environmental compliance for new designs and manufacturing processes.

Functional Equivalence: Matching electrical and mechanical specifications across all critical parameters—8-position configuration, through-hole mounting, PC pin termination, and MSL 1 rating—ensure direct functional replacement without circuit redesign.

Product Status: The PT08-0 maintains active production status with confirmed inventory availability (3929 pieces), eliminating supply chain risk associated with the obsolete SZX-SLB-08P.

Series Compatibility: The PT08-0 is specified for LY series relay compatibility, which encompasses the SZR-LY series application of the original component.

Frequently Asked Questions (FAQ)

Q: Can the PT08-0 be used as a direct replacement for the SZX-SLB-08P without PCB modifications?

A: Yes. Both components share identical mounting type (through-hole), termination style (PC pin), and position count (8), enabling direct PCB footprint compatibility without layout changes.

Q: What is the significance of the MSL 1 rating for both components?

A: MSL 1 indicates unlimited shelf life with no moisture sensitivity restrictions. Both the SZX-SLB-08P and PT08-0 require no special storage conditions or baking procedures prior to assembly.

Q: Does the ROHS3 compliance of the PT08-0 create compatibility issues with designs originally specified for RoHS compliance?

A: No. ROHS3 compliance is a superset of RoHS compliance, meaning the PT08-0 meets or exceeds all original environmental requirements. This upgrade presents no compatibility concerns.

Q: Are there packaging differences between the SZX-SLB-08P and PT08-0?

A: The SZX-SLB-08P is packaged in standard format, while the PT08-0 is supplied in bulk packaging. Both formats contain identical components; packaging selection depends on procurement and inventory management requirements.

Q: What relay series are compatible with the PT08-0?

A: The PT08-0 is specified for LY series relays, including SPDT and DPDT configurations. The SZR-LY series falls within this compatibility range.

Q: Are export restrictions different between the two components?

A: No. Both components share the same ECCN classification (EAR99), indicating identical export control treatment and regulatory requirements.
