SXR331M010ST Equivalent & Substitute Parts Reference

Part Overview

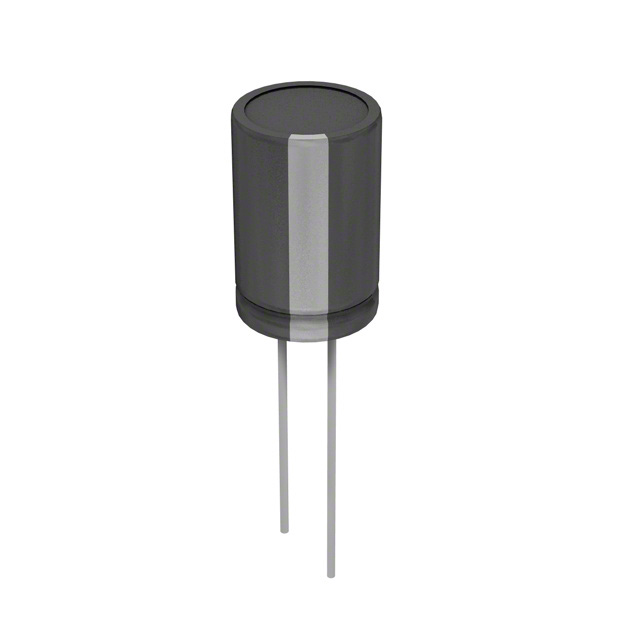

The SXR331M010ST is a 330 µF, 10 V aluminum electrolytic capacitor in radial, can package manufactured by Cornell Dubilier Electronics (CDE). This component is classified as obsolete, making equivalent and substitute parts necessary for ongoing production support and design continuity. The part operates across a temperature range of -40°C to 105°C with a rated lifetime of 3000 hours at 105°C, serving general-purpose applications requiring stable capacitance and low equivalent series resistance.

Substiute Parts

SXR331M010ST

Cornell Dubilier Electronics (CDE)In Stock: 820SXR331M010ST Datasheet

Current PartRFQ

UPW1A331MPD

NichiconIn Stock: 6378UPW1A331MPD Datasheet

DirectRFQ

ESW337M016AG3AA

KEMETIn Stock: 3165ESW337M016AG3AA Datasheet

UpgradeRFQ

UHE1C331MPD

NichiconIn Stock: 4089UHE1C331MPD Datasheet

UpgradeRFQ

UPW1C331MPD

NichiconIn Stock: 8292UPW1C331MPD Datasheet

UpgradeRFQ

16YXF330MEFC8X11.5

RubyconIn Stock: 588816YXF330MEFC8X11.5 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the SXR331M010ST are classified into three categories based on electrical and mechanical compatibility:

Direct Equivalent (Same Voltage Rating - 10V):

• UPW1A331MPD (Nichicon): Maintains 330 µF capacitance and 10 V voltage rating with identical lead spacing (3.50 mm) and through-hole radial mounting. Operating temperature range extends to -55°C. Lifetime specification matches at 3000 hours @ 105°C.

Upgrade Substitutes (Higher Voltage Rating - 16V):

• ESW337M016AG3AA (KEMET): 330 µF, 16 V rating with improved ESR (130 mOhm @ 100kHz) and extended lifetime (4000 Hrs @ 105°C). Identical mechanical footprint and lead spacing.
• UHE1C331MPD (Nichicon): 330 µF, 16 V rating with superior lifetime (7000 Hrs @ 105°C). Maintains identical lead spacing and through-hole mounting.
• UPW1C331MPD (Nichicon): 330 µF, 16 V rating with 3000-hour lifetime. Extended operating temperature to -55°C. Identical mechanical dimensions.

Similar Substitute (Higher Voltage Rating - 16V):

• 16YXF330MEFC8X11.5 (Rubycon): 330 µF, 16 V rating with 7000-hour lifetime. Maintains lead spacing and radial can package with slightly increased height (13.00 mm vs. 12.00 mm).

Substitution logic is based on matching capacitance (330 µF), tolerance (±20%), mechanical footprint (lead spacing 3.50 mm, diameter 8.00 mm), mounting type (through-hole radial), and package style (radial can). Voltage rating upgrades from 10 V to 16 V provide design margin without affecting physical compatibility.

Parameter Comparison

Engineering Selection Recommendations

For Direct Replacement (Same Voltage): UPW1A331MPD is the appropriate direct equivalent, maintaining the 10 V voltage rating while providing identical capacitance and mechanical compatibility. This part is suitable for applications where voltage margin is not a design constraint.

For Upgraded Performance: ESW337M016AG3AA (KEMET, Active status) is recommended for new designs requiring higher reliability. This part offers improved ESR characteristics (130 mOhm @ 100kHz) and extended lifetime (4000 hours @ 105°C) while maintaining the same physical footprint. Active product status ensures long-term availability.

UHE1C331MPD and UPW1C331MPD provide 16 V ratings with extended operating temperature ranges (-55°C for UPW1C331MPD). UHE1C331MPD offers superior lifetime (7000 hours @ 105°C), suitable for applications requiring extended service intervals.

For Space-Constrained Applications: UPW1A331MPD and UHE1C331MPD feature reduced height (11.50 mm) compared to the original part (12.00 mm), providing marginal space savings in compact designs.

Compliance Considerations: All substitute parts maintain ROHS3 compliance. ESW337M016AG3AA and 16YXF330MEFC8X11.5 carry REACH Unaffected status. UHE1C331MPD is REACH Affected, requiring verification for regulated applications.

Frequently Asked Questions (FAQ)

Q: Can UPW1A331MPD be used as a direct replacement for SXR331M010ST? A: Yes. UPW1A331MPD maintains identical capacitance (330 µF), voltage rating (10 V), tolerance (±20%), lead spacing (3.50 mm), and through-hole radial mounting. Physical compatibility is confirmed across all mechanical dimensions.

Q: What is the advantage of upgrading to a 16 V rated substitute? A: A 16 V rated substitute provides design margin in applications where voltage stress may vary. The higher voltage rating does not affect physical compatibility or electrical performance in 10 V circuits. Upgrade options also offer improved ESR characteristics and extended lifetime specifications.

Q: Are there height restrictions when substituting? A: The original SXR331M010ST has a maximum seated height of 12.00 mm. UPW1A331MPD and UHE1C331MPD are slightly shorter (11.50 mm), providing marginal space savings. ESW337M016AG3AA (12.50 mm) and 16YXF330MEFC8X11.5 (13.00 mm) require verification for space-constrained PCB layouts.

Q: Which substitute is recommended for new designs? A: ESW337M016AG3AA (KEMET) carries Active product status, ensuring long-term availability and manufacturing support. This part is the preferred choice for new design implementations requiring 330 µF, 16 V aluminum electrolytic capacitors in radial can packages.

Q: Do all substitutes maintain the same lead spacing? A: Yes. All substitute parts maintain 3.50 mm lead spacing and 8.00 mm diameter, ensuring direct PCB footprint compatibility without layout modifications.

Q: What is the difference between ESR specifications across parts? A: ESR values vary by measurement frequency and manufacturer design. SXR331M010ST specifies 760 mOhm @ 120Hz. ESW337M016AG3AA provides 130 mOhm @ 100kHz, indicating lower impedance at high frequencies. Other substitutes do not publish ESR values in the provided data.

Q: Are there REACH compliance differences among substitutes? A: ESW337M016AG3AA and 16YXF330MEFC8X11.5 are REACH Unaffected. UHE1C331MPD is REACH Affected. Applications subject to REACH regulations should verify compliance requirements before selection.

Q: Can ripple current ratings be compared directly across parts? A: Ripple current specifications are frequency-dependent. Direct comparison requires matching measurement frequencies. SXR331M010ST specifies 240 mA @ 120Hz and 400 mA @ 100kHz. Substitutes provide varying ripple current ratings at different frequencies; verify application requirements before selection.
