SX100DD4 Equivalent & Substitute Parts Reference

Part Overview

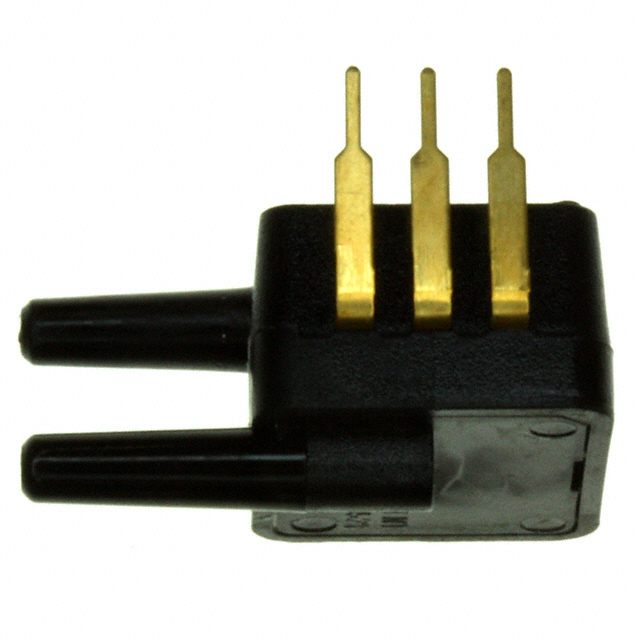

The SX100DD4 is a differential pressure sensor manufactured by Honeywell Sensing and Productivity Solutions, designed for board mount applications with a 100 PSI (689.48 kPa) differential pressure range. The sensor outputs a Wheatstone Bridge signal of 0 mV to 150 mV at 5V supply and operates across -40°C to 85°C. The SX100DD4 is classified as obsolete, making identification of functionally equivalent substitute components necessary for ongoing system support, maintenance, and new design implementations where legacy compatibility is not required.

Substiute Parts

SX100DD4

Honeywell Sensing and Productivity SolutionsIn Stock: 837SX100DD4 Datasheet

Current PartRFQ

NSCDRRN100PDUNV

Honeywell Sensing and Productivity SolutionsIn Stock: 1066NSCDRRN100PDUNV Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the SX100DD4 is determined by the following critical parameters:

Pressure Specification Compatibility: The substitute part must operate at the same differential pressure range (100 PSI / ±689.48 kPa) to maintain functional equivalence in the target application.

Output Signal Type: Both the main part and substitute must employ Wheatstone Bridge output topology to ensure signal conditioning compatibility with existing amplification and measurement circuits.

Operating Temperature Range: The substitute must support the full -40°C to 85°C operating window to guarantee performance across all environmental conditions.

Supply Voltage Compatibility: The substitute must accept the 12V supply voltage specified for the SX100DD4, or operate within a voltage range that includes 12V.

Mounting and Package Considerations: Through-hole mounting type and DIP package format are required for direct board-level integration.

Regulatory Compliance: RoHS compliance status must be maintained for current manufacturing and procurement standards.

The NSCDRRN100PDUNV qualifies as a substitute based on these criteria, with noted differences in package configuration and enhanced specifications.

Parameter Comparison

Engineering Selection Recommendations

The NSCDRRN100PDUNV serves as a functional substitute for the obsolete SX100DD4 based on the following engineering criteria:

Pressure Range Equivalence: Both sensors operate at 100 PSI differential pressure, satisfying the primary functional requirement. The NSCDRRN100PDUNV provides bidirectional (±100 PSI) capability, offering extended functionality for applications requiring reverse pressure measurement.

Signal Compatibility: Both employ Wheatstone Bridge output with 5V reference. The NSCDRRN100PDUNV output range of 0 mV to 172.5 mV is slightly higher than the SX100DD4's 0 mV to 150 mV, requiring signal conditioning circuit verification to confirm compatibility with existing analog-to-digital conversion thresholds.

Regulatory and Compliance Status: Both parts maintain RoHS compliance and REACH unaffected status, satisfying current procurement and environmental regulations. The NSCDRRN100PDUNV is active in production, ensuring long-term availability and supply chain stability compared to the obsolete SX100DD4.

Voltage Supply Flexibility: The NSCDRRN100PDUNV accepts 1.5V to 12V supply range, providing broader operational flexibility while maintaining compatibility with the 12V supply specified for the SX100DD4.

Package Transition Consideration: The NSCDRRN100PDUNV uses an 8-DIP package versus the SX100DD4's 6-DIP package. PCB layout modification is required to accommodate the larger footprint and increased pin count.

Frequently Asked Questions (FAQ)

Q: Can the NSCDRRN100PDUNV directly replace the SX100DD4 without circuit modifications?

A: Direct pin-for-pin replacement is not possible due to package differences (6-DIP versus 8-DIP). PCB layout redesign is required. Additionally, the output voltage range difference (172.5 mV versus 150 mV) necessitates verification of signal conditioning and analog input stage compatibility.

Q: What is the primary reason for substituting the SX100DD4?

A: The SX100DD4 is classified as obsolete. The NSCDRRN100PDUNV is an active product from the same manufacturer, ensuring continued availability, technical support, and compliance with current manufacturing standards.

Q: Are both sensors compatible with the same supply voltage?

A: Yes. The SX100DD4 requires 12V supply, and the NSCDRRN100PDUNV accepts 1.5V to 12V. The 12V supply voltage is within the NSCDRRN100PDUNV operating range, ensuring compatibility.

Q: How do the accuracy specifications compare?

A: The NSCDRRN100PDUNV provides improved accuracy at ±0.25% compared to the SX100DD4's ±0.5%. This represents enhanced measurement precision for applications requiring tighter tolerance control.

Q: What is the significance of the bidirectional pressure rating (±100 PSI) on the NSCDRRN100PDUNV?

A: The NSCDRRN100PDUNV measures pressure in both directions (positive and negative differential), whereas the SX100DD4 measures unidirectional pressure (0 to 100 PSI). Applications requiring only positive pressure measurement can use the NSCDRRN100PDUNV without utilizing the reverse pressure capability.

Q: Are both sensors suitable for the same operating temperature range?

A: Yes. Both the SX100DD4 and NSCDRRN100PDUNV operate across -40°C to 85°C, providing equivalent thermal performance for industrial and commercial applications.

Q: What port configuration differences exist between these sensors?

A: The SX100DD4 features male 0.09" (2.28mm) barbless tube ports, while the NSCDRRN100PDUNV uses male 0.08" (1.93mm) barbed tube ports with dual ports on the same side. Tubing adapter compatibility must be verified for the specific application.
